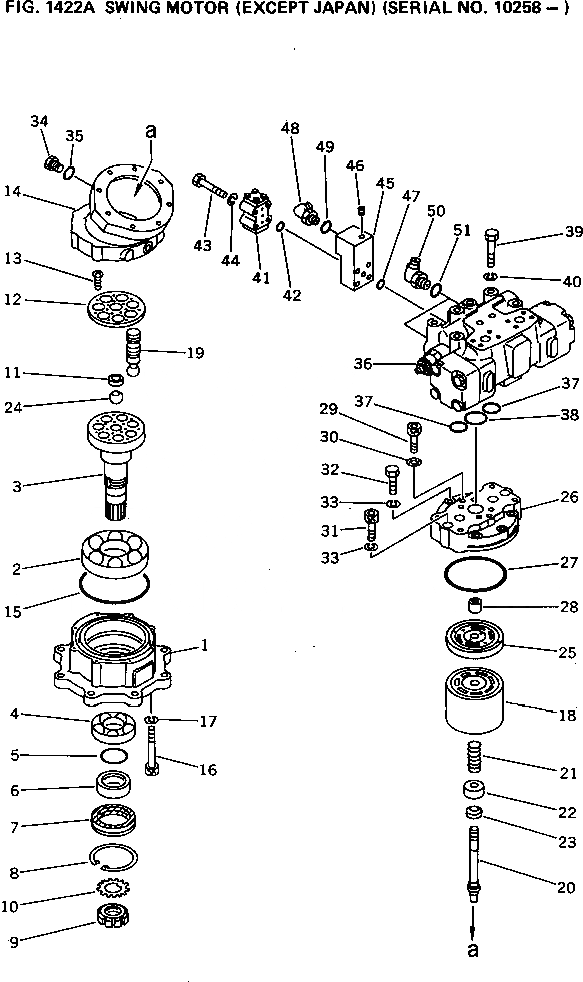

Запчасти Komatsu PC650-1 МОТОР ПОВОРОТА (КРОМЕ ЯПОН.)(№8-) ПОВОРОТН. И СИСТЕМА УПРАВЛЕНИЯS

|$0

706-77-01705

MOTOR ASS'Y

|$1

706-77-41001

MOTOR ASS'Y

1

COVER,FRONT

2

BEARING (KIT)

3

SHAFT,DRIVE (KIT)

4

BEARING

5

O-RING (KIT)

6

RING

7

SEAL,OIL (KIT)

8

RING,SNAP

9

NUT

10

WASHER,LOCK (KIT)

11

HOLDER (KIT)

12

RETAINER (KIT)

13

SCREW (KIT)

14

CASE,PUMP

15

O-RING (KIT)

16

BOLT

17

WASHER,SPRING

18

BLOCK,CYLINDER (KIT)

19

PISTON SUB ASS'Y (KIT)

20

SHAFT,CENTER (KIT)

21

SPRING (KIT)

22

PLATE,THRUST (KIT)

23

SEAT,BALL (KIT)

24

BALL,CENTER (KIT)

25

PLATE,VALVE

26

COVER,END

27

O-RING (KIT)

28

BEARING

29

BOLT (KIT)

30

GASKET,SEAL (KIT)

31

BOLT

32

BOLT

33

WASHER,SPRING

34

07040-12012

PLUG

35

07002-02034

O-RING

36

706-77-71405

BRAKE VALVE ASS'Y

37

07000-13035

O-RING

38

07000-02055

O-RING

39

01011-51455

BOLT

40

01602-21442

WASHER,SPRING

41

706-77-77200

SHUTTLE VALVE A.

42

07000-12011

O-RING

43

706-77-77150

BOLT

44

01602-20825

WASHER,SPRING

45

209-62-37970

BLOCK

46

706-73-40340

PLUG

47

07000-12011

O-RING

48

07235-10315

ELBOW

49

07002-02034

O-RING

50

07235-10628

ELBOW

51

07002-12434

O-RING

1K

706-98-05010

DRIVE SHAFT KIT,(EXCEPT JAPAN)

2

BEARING

3

SHAFT,DRIVE

5

O-RING

7

SEAL,OIL

10

WASHER,LOCK

11

HOLDER

12

RETAINER

13

SCREW

15

O-RING

18

BLOCK,CYLINDER

19

PISTON SUB ASS'Y

20

SHAFT,CENTER

21

SPRING

22

PLATE,THRUST

23

SEAT,CENTER

24

BALL,CENTER

27

O-RING

29

BOLT

30

GASKET,SEAL
