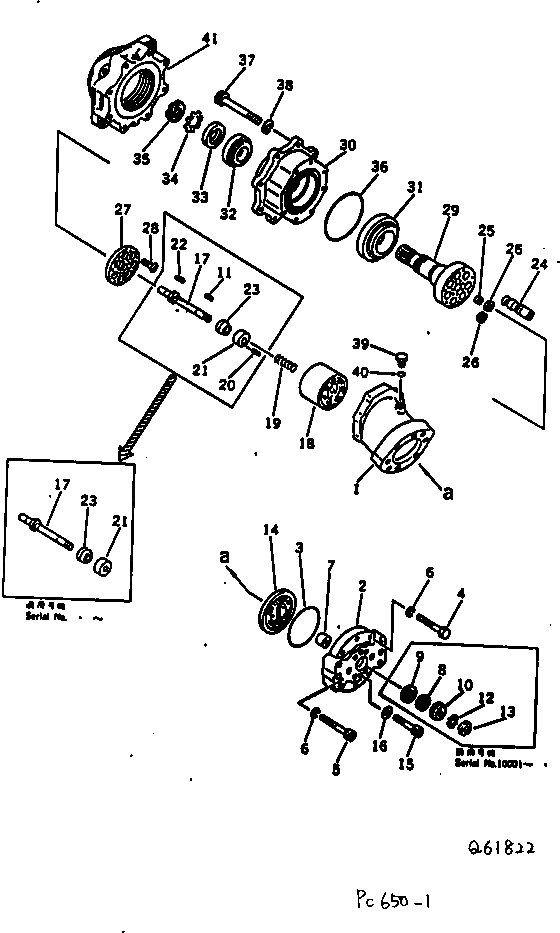

Запчасти Komatsu PC650-1 МОТОР ХОДА (КРОМЕ ЯПОН.) ХОД И КОНЕЧНАЯ ПЕРЕДАЧА

|$0

706-77-00800

MOTOR ASS'Y,(KMF160A)

|$1

706-77-42001

MOTOR ASS'Y,(KMF160)

|$2

706-77-42000

MOTOR ASS'Y,(KMF160)

1

CASE,PUMP

2

COVER,END

2

COVER,END

3

O-RING (KIT)

4

BOLT

5

BOLT

6

WASHER

7

BEARING

8

BEARING

9

PLATE

10

HOLDER,BEARING

11

KEY

12

LOCK

13

NUT

14

PLATE,VALVE

14

PLATE,VALVE

15

BOLT (KIT)

16

GASKET,SEAL (KIT)

17

SHAFT,CENTER (KIT)

17

SHAFT,CENTER

18

BLOCK,CYLINDER (KIT)

18

BLOCK,CYLINDER

19

SPRING (KIT)

19

SPRING

20

PIN,DOWEL

21

PLATE,THRUST (KIT)

21

PLATE,THRUST

22

KEY

23

SEAT,BALL (KIT)

23

SEAT,BALL

24

PISTON SUB ASS'Y (KIT)

25

BALL,CENTER (KIT)

25

BALL,CENTER

26

HOLDER (KIT)

27

RETAINER (KIT)

28

SCREW (KIT)

29

SHAFT,DRIVE (KIT)

30

COVER,FRONT

31

BEARING (KIT)

32

BEARING

33

RING

34

WASHER,LOCK (KIT)

35

NUT

36

O-RING (KIT)

37

BOLT

38

WASHER

39

07040-12012

PLUG

40

07002-02034

O-RING

41

706-77-90000

PARKING BRAKE ASS'Y

1K

706-98-05010

DRIVE SHAFT KIT,(EXCEPT JAPAN)

3

O-RING

15

BOLT

16

GASKET,SEAL

17

SHAFT,CENTER

18

BLOCK,CYLINDER

19

SPRING

21

PLATE,THRUST

23

SEAT,CENTER

24

PISTON SUB ASS'Y

25

BALL,CENTER

26

HOLDER

27

RETAINER

28

SCREW

29

SHAFT,DRIVE

31

BEARING

34

WASHER,LOCK

36

O-RING

36

O-RING,(NOT SHOWN)

36

SEAL,OIL (NOT SHOWN)
