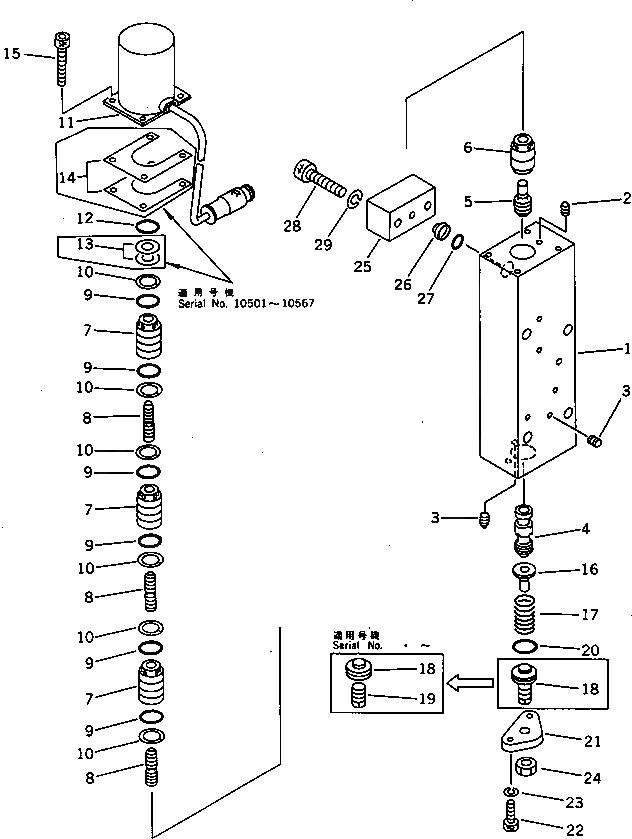

Запчасти Komatsu PC650LC-3 ГИДР. НАСОС.¤ NO. (TVC КЛАПАН) (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-01011

PUMP ASS'Y

|1

708-25-01010

PUMP ASS'Y

|1

708-25-50101

HYDRAULIC PUMP ASS'Y,(HPV 90+90)

|1

708-25-01510

SERVO VALVE ASS'Y,FRONT

|1

708-25-55101

SERVO VALVE ASS'Y,FRONT

|1

708-25-01810

VALVE ASS'Y,TVC

|1

708-25-58200

VALVE ASS'Y,TVC

|1

708-23-00320

BODY ASS'Y

1

BODY

2

PLUG

3

EXPANDER

4

708-23-18161

SPOOL

5

708-23-18120

PISTON

6

708-23-18130

SLEEVE

7

708-25-58150

SLEEVE

8

708-25-58160

PISTON

|8

708-25-58140

PISTON

9

07000-12016

O-RING

10

07001-02016

RING,BACK-UP

11

708-23-18221

SOLENOID ASS'Y

12

07000-02016

O-RING

13

708-25-18580

SHIM¤ 0.50MM

14

708-25-18570

SHIM¤ 0.50MM

15

708-23-18250

BOLT

16

708-23-18170

SEAT

17

708-23-18181

SPRING

18

708-23-15160

PLUG

|18

708-23-15140

PLUG

19

708-25-15340

SCREW

20

07000-02018

O-RING

21

708-23-18210

COVER

22

708-25-15320

BOLT

23

01602-20619

WASHER,SPRING

24

01580-10806

NUT

25

708-25-58310

FLANGE

26

720-68-11920

FILTER

27

07000-12010

O-RING

28

708-25-58320

BOLT

29

01602-20825

WASHER,SPRING
