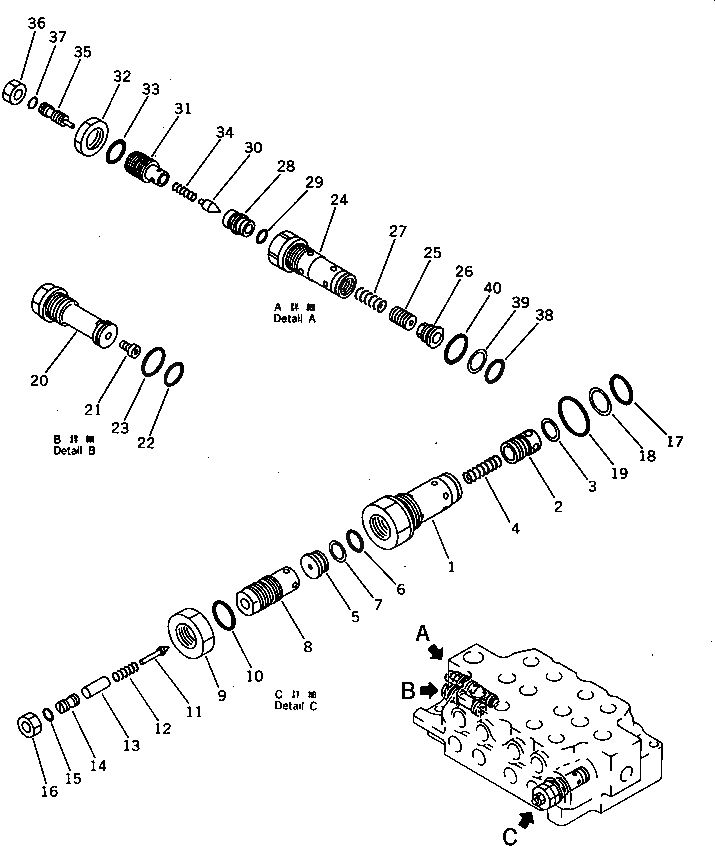

Запчасти Komatsu PC650LC-3 ПРАВ. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-14-92101

VALVE ASS'Y

|$1

709-14-92100

VALVE ASS'Y

|$2

709-14-91101

VALVE ASS'Y,(FOR BACKHOE)

|$3

709-14-92100

VALVE ASS'Y

|$4

709-14-91101

VALVE ASS'Y,(FOR BACKHOE)

|$6

709-10-51902

VALVE ASS'Y

1

SLEEVE

2

VALVE

3

709-10-51120

RING,SNAP

4

709-10-51140

SPRING

5

709-10-51150

SEAT

6

07000-13022

O-RING

7

07001-03022

RING,BACK-UP

8

709-10-51260

HOLDER

9

01583-13621

NUT

10

07002-03634

O-RING

11

700-80-61190

POPPET

12

709-20-51231

SPRING

13

709-10-51270

RETAINER

14

700-20-51340

SCREW

15

07000-02011

O-RING

16

01582-11411

NUT

17

07000-13032

O-RING

18

07001-03032

RING,BACK-UP

19

07002-05234

O-RING

|$26

709-10-92100

ORIFICE ASS'Y

20

ORIFICE

21

SENSOR

22

700-93-11320

O-RING

23

07002-03634

O-RING

|$31

709-10-55101

VALVE ASS'Y

24

SLEEVE

25

VALVE

26

PLUG

27

709-10-51320

SPRING

28

709-10-51330

SEAT

29

07000-22016

O-RING

30

709-10-51340

POPPET

31

709-10-51360

HOLDER

32

700-90-51190

NUT

33

07002-03034

O-RING

34

709-10-51350

SPRING

35

709-10-51371

SCREW

36

01582-11411

NUT

37

07000-02011

O-RING

38

700-93-11320

O-RING

39

700-93-11330

RING,BACK-UP

40

07002-03634

O-RING
