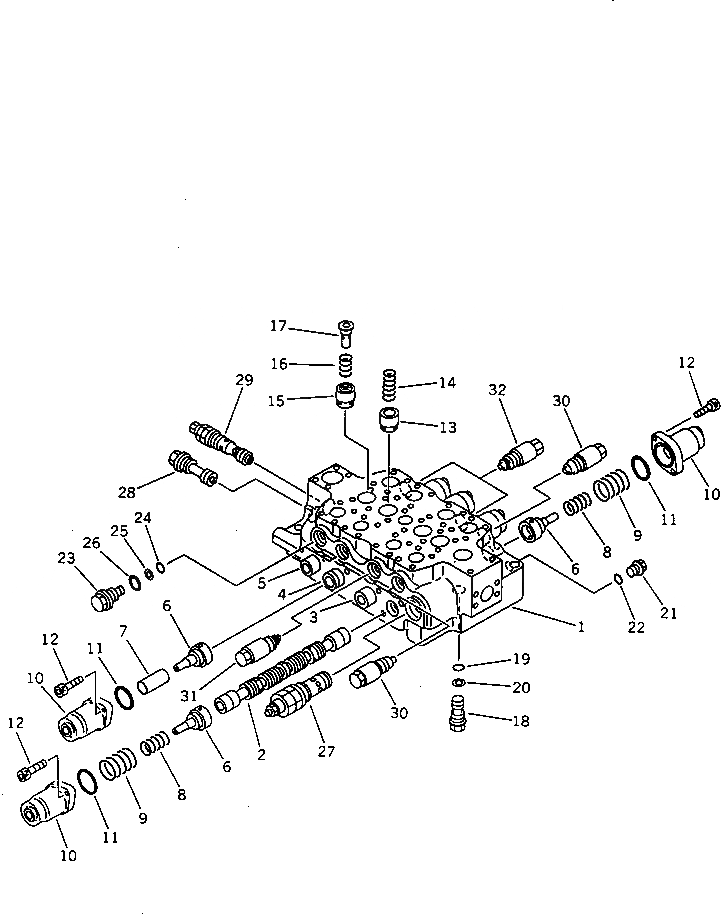

Запчасти Komatsu PC650SE-3 ПРАВ. УПРАВЛЯЮЩ. КЛАПАН (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

709-14-92101

VALVE ASS'Y

|$1

709-14-92100

VALVE ASS'Y

|$2

709-14-91101

VALVE ASS'Y,(FOR BACKHOE)

|$3

709-14-92100

VALVE ASS'Y

|$4

709-14-91101

VALVE ASS'Y,(FOR BACKHOE)

1

BODY

1

BODY

2

SPOOL,R.H. TRAVEL

3

SPOOL,BOOM

4

SPOOL

5

SPOOL,ARM

6

709-14-11530

RETAINER

7

709-14-11540

TUBE

8

709-14-11560

SPRING,INNER

9

709-14-11550

SPRING,OUTER

10

709-14-11520

CASE

11

07000-02065

O-RING

12

01252-31035

BOLT

13

709-12-11411

VALVE,CHECK

14

709-12-11430

SPRING

15

709-14-11581

VALVE,CHECK

16

709-14-11590

SPRING

17

709-14-11610

SEAT

18

709-14-11510

PLUG

19

700-80-61260

O-RING

20

700-80-61430

RING,BACK-UP

21

700-22-11370

PLUG

22

07002-02434

O-RING

23

700-94-11260

PLUG

24

07000-12018

O-RING

25

07001-02018

RING,BACK-UP

26

07002-03634

O-RING

27

709-10-51902

VALVE ASS'Y

28

709-10-92100

ORIFICE ASS'Y

29

709-10-55101

VALVE ASS'Y

30

700-90-74001

VALVE ASS'Y

31

709-90-63101

VALVE ASS'Y

31

709-90-63100

VALVE ASS'Y

32

709-90-63101

VALVE ASS'Y

32

709-90-63100

VALVE ASS'Y

32

709-90-63200

VALVE ASS'Y,(FOR BACKHOE)

32

709-90-63100

VALVE ASS'Y

32

709-90-63200

VALVE ASS'Y,(FOR BACKHOE)
