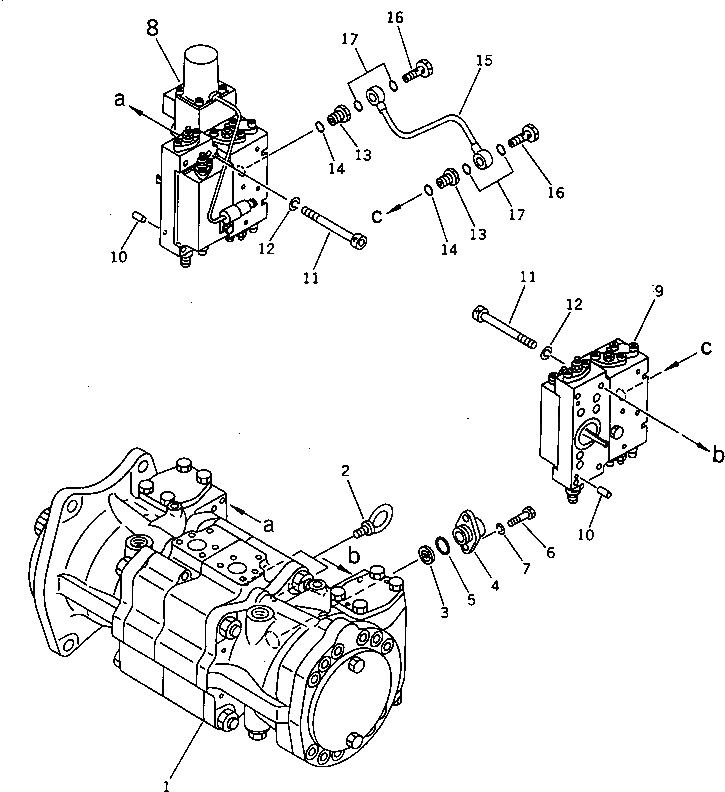

Запчасти Komatsu PC650SE-3 ГИДР. НАСОС.¤ NO. (НАСОС БЛОК) (/) (С -STAGE SELECTOR MODE OLSS) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

708-25-01011

PUMP ASS'Y

|1

708-25-01010

PUMP ASS'Y

|1

708-25-50101

HYDRAULIC PUMP ASS'Y,(HPV 90+90)

1

708-25-04170

PUMP SUB ASS'Y

|1

708-25-51101

PUMP SUB ASS'Y

2

04530-01018

BOLT,EYE

3

720-68-15240

FILTER

4

708-25-19120

FLANGE

5

07000-02021

O-RING

6

01010-30820

BOLT

7

01602-00825

WASHER,SPRING

8

708-25-01510

SERVO VALVE ASS'Y,FRONT

|8

708-25-55101

SERVO VALVE ASS'Y,FRONT

9

708-25-56100

SERVO VALVE ASS'Y,REAR

10

04020-00616

PIN,DOWEL

11

708-25-19130

BOLT

12

01602-00825

WASHER,SPRING

13

706-46-53260

PLUG

14

07002-01423

O-RING

15

708-25-19140

TUBE

16

706-46-53180

BOLT,JOINT

17

07000-02012

O-RING
