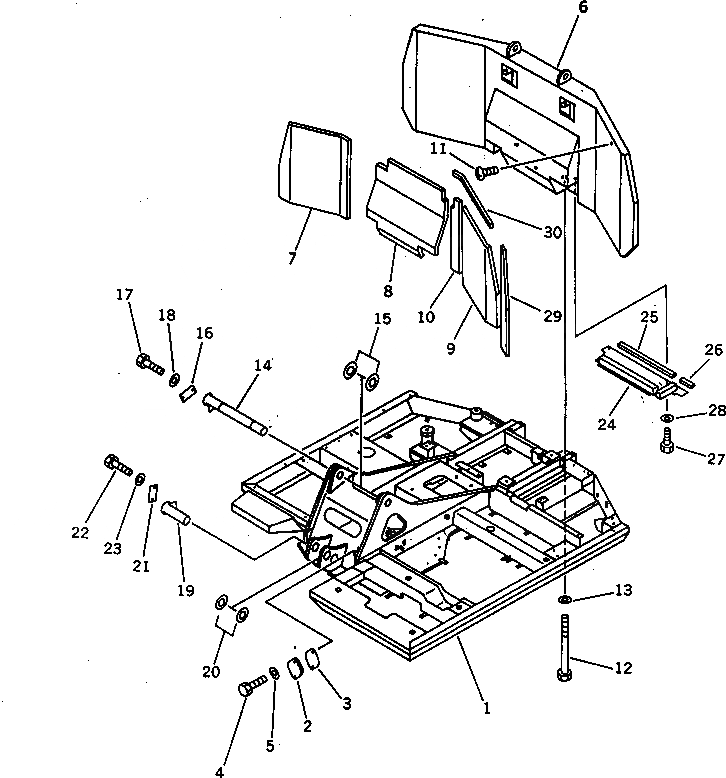

Запчасти Komatsu PC70-6S ОСНОВНАЯ РАМА СИСТЕМА УПРАВЛЕНИЯ И ОСНОВНАЯ РАМА

1

201-46-63304

REVOLVING FRAME A.,(INCLUDE WITH ATT.ADD.FILTER)

|1

201-46-63303

REVOLVING FRAME A.,(INCLUDE WITH ATT.ADD.FILTER)

2

203-46-56160

COVER

3

203-46-31181

GASKET

4

01010-51230

BOLT

5

01643-31232

WASHER

6

201-46-64121

WEIGHT,COUNTER (850KG) (WITH HOOK)

7

201-46-64170

SHEET

8

201-46-64180

SHEET

9

201-46-64190

SHEET

10

201-46-64210

SHEET

11

01370-00508

SCREW

12

01011-52010

BOLT

13

01643-32060

WASHER

14

201-70-61210

SHAFT

15

203-70-34260

SPACER¤ 0.5MM

|15

202-70-11640

SPACER¤ 1.0MM

16

203-46-56270

PLATE

17

01010-51230

BOLT

18

01643-31232

WASHER

19

201-70-61240

SHAFT

20

202-70-48460

SPACER¤ 1.0MM

|20

203-70-44430

SPACER¤ 2.0MM

21

203-46-56270

PLATE

22

01010-51230

BOLT

23

01643-31232

WASHER

24

201-54-64420

COVER

25

201-54-64430

SEAL

26

201-54-64440

SEAL

27

01010-51020

BOLT

28

01643-31032

WASHER

29

201-46-62210

SHEET,(FOR DIRT PROTECTION)

30

201-46-62220

SHEET,(FOR DIRT PROTECTION)
