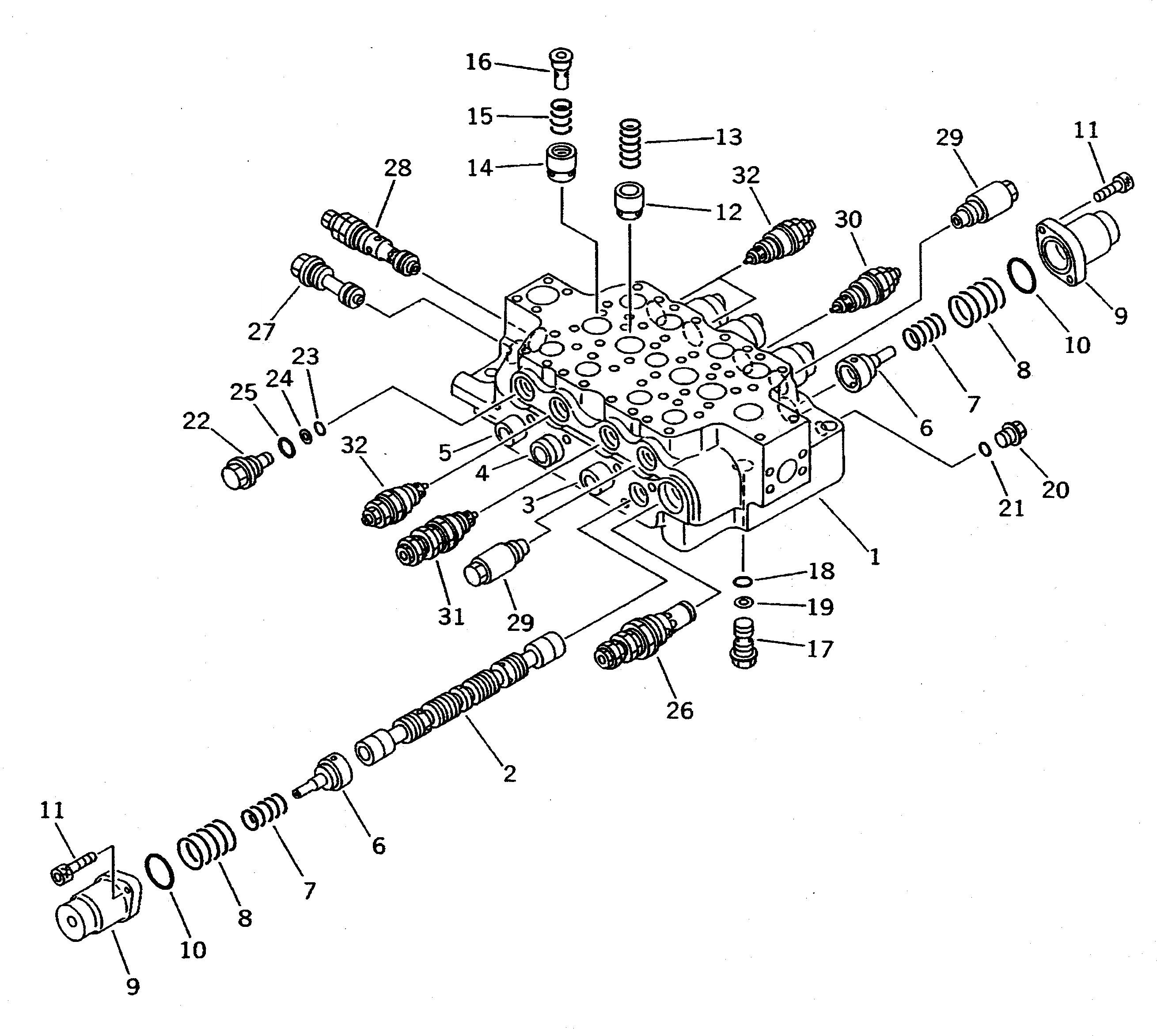

Запчасти Komatsu PC710SE-5 ОСНОВН. КЛАПАН (4-Х СЕКЦИОНН.) (/) ГИДРАВЛИКА

|$2

709-14-93100

VALVE ASS'Y

1

BODY

2

SPOOL,R.H. TRAVEL

3

SPOOL,BOOM LOW

4

SPOOL,BUCKET LOW

5

SPOOL,ARM HIGH

6

709-14-11530

RETAINER

7

709-14-11560

SPRING,INNER

8

709-14-11550

SPRING,OUTER

9

709-14-11520

CASE

10

07000-02065

O-RING

11

01252-31035

BOLT

12

709-12-11411

VALVE,CHECK

13

709-12-11430

SPRING

14

709-14-11581

VALVE,CHECK

15

709-14-11590

SPRING

16

709-14-11610

SEAT

17

709-14-11510

PLUG

18

700-80-61260

O-RING

19

700-80-61430

RING,BACK-UP

20

700-22-11370

PLUG

21

07002-02434

O-RING

22

700-94-11260

PLUG

23

07000-12018

O-RING

24

07001-02018

RING,BACK-UP

25

07002-03634

O-RING

26

709-10-53800

VALVE ASS'Y,RELIEF

27

709-10-92100

ORIFICE ASS'Y

28

709-10-55102

VALVE ASS'Y,RELIEF

28

709-10-55101

VALVE ASS'Y,RELIEF

29

700-90-74001

VALVE ASS'Y,SUCTION

30

709-90-71100

VALVE ASS'Y,SUCTION AND SAFETY

31

709-10-62400

VALVE ASS'Y,SUCTION AND SAFETY

32

709-90-71600

VALVE ASS'Y,SUCTION AND SAFETY
