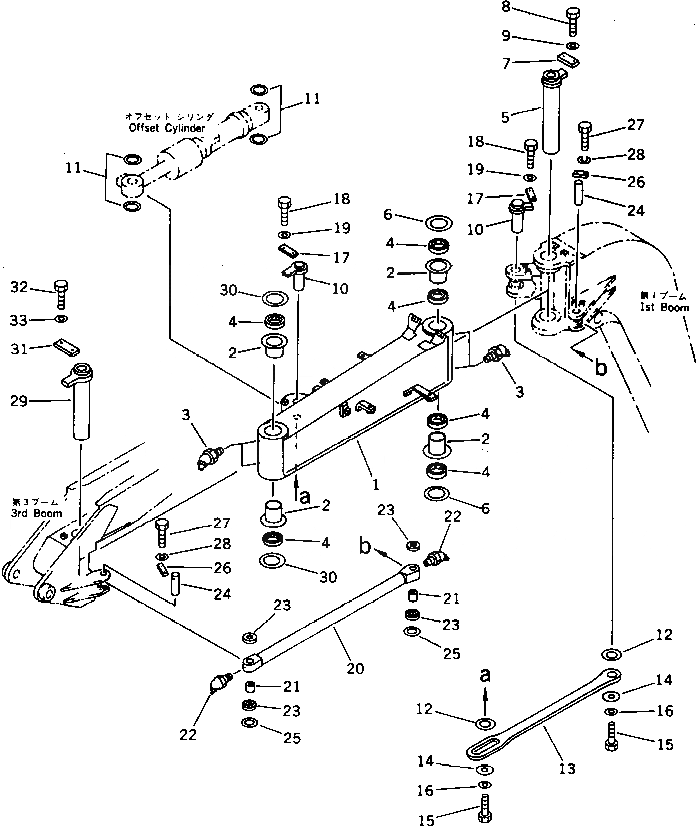

Запчасти Komatsu PC75UU-1 СТРЕЛА 2 (ДЛЯ НАВЕСН. ОБОРУД.) РАБОЧЕЕ ОБОРУДОВАНИЕ

G-1

21W-973-X120

MODIFIED GROUP,(FOR ATTACHMENT) (OP)

|1

21W-973-0020

BOOM ASS'Y,2ND

1

BOOM

2

21W-70-11950

BUSHING

3

07020-00675

FITTING,GREASE

4

07145-00100

SEAL,DUST

5

21W-70-11170

PIN

6

21W-70-11280

SPACER¤ 0.5MM

|6

21W-70-11270

SPACER¤ 1.0MM

|6

21W-70-11260

SPACER¤ 2.0MM

7

21W-70-11310

PLATE

8

01010-51230

BOLT

9

01643-31232

WASHER

10

21W-70-11191

PIN

11

203-70-24150

SPACER¤ 1.0MM

|11

203-70-24160

SPACER¤ 2.0MM

12

203-70-24160

SPACER¤ 2.0MM

13

21W-70-11380

PLATE

14

21W-70-11910

PLATE

15

01010-51225

BOLT

16

01643-31232

WASHER

17

21W-70-11310

PLATE

18

01010-51230

BOLT

19

01643-31232

WASHER

|20

21W-70-00400

LINK ASS'Y

20

LINK

21

07144-10404

BUSHING

22

07020-00675

FITTING,GREASE

23

07145-00040

SEAL,DUST

24

21W-70-11211

PIN

25

21W-70-11290

SPACER¤ 1.0MM

26

21W-70-11320

PLATE

27

01010-51230

BOLT

28

01602-21236

WASHER,SPRING

29

21W-70-11180

PIN

30

21W-70-11280

SPACER¤ 0.5MM

|30

21W-70-11270

SPACER¤ 1.0MM

|30

21W-70-11260

SPACER¤ 2.0MM

31

21W-70-11310

PLATE

32

01010-51230

BOLT

33

01643-31232

WASHER
