/ / / / / / СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ(№7-999)

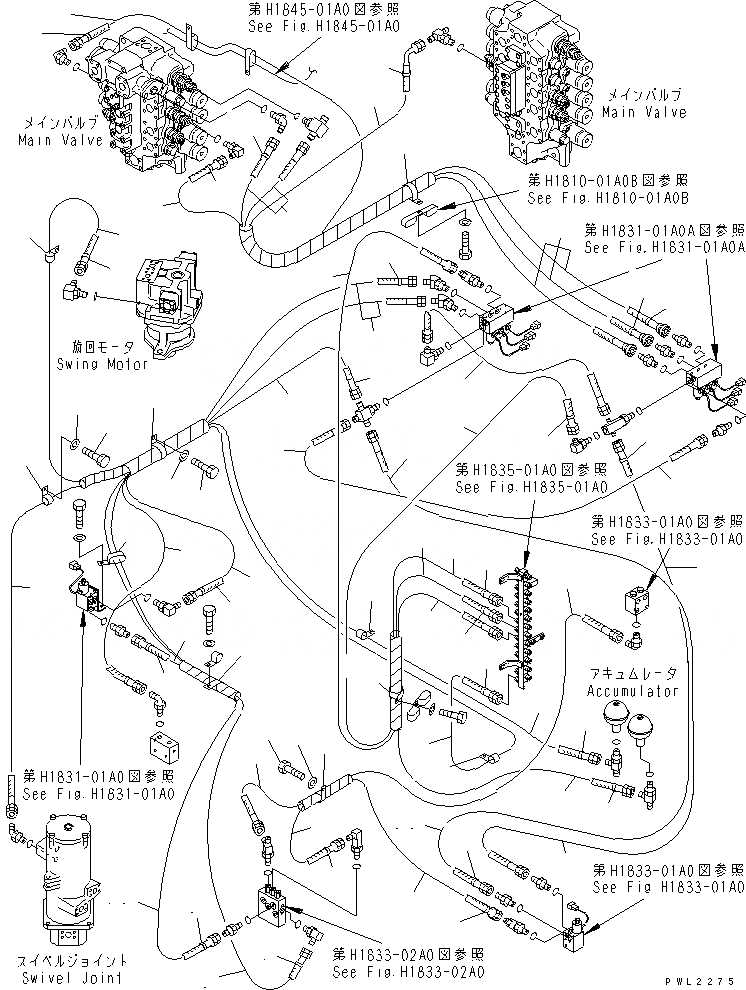

Запчасти Komatsu PC800-6 СОЛЕНОИДНЫЙ КЛАПАН ЛИНИЯ(№7-999) ГИДРАВЛИКА
1
2
2
3
3
4
4
5
5
6
6
7
8
8
9
9
10
10
10
10
10
11
11
12
13
14
15
15
15
15
16
17
18
19
20
20
21
21
22
22
22
22
23
23
24
25
25
26
26
27
27
28
28
28
29
29
30
31
31
32
32
33
33
34
35
36
37
37
38
38
39
39
1
209-62-77640
HOSE
2
201-62-72320
HOSE, 300MM
3
20Y-62-22790
BAND, RED
4
20Y-62-22810
BAND, YELLOW
5
20Y-62-22820
BAND, BLUE
6
20Y-62-22830
BAND, WHITE
7
20Y-62-22840
BAND, BLACK
8
207-62-16950
HOSE, 800MM
9
20Y-62-23920
HOSE, 2200MM
10
209-62-77730
HOSE, 2100MM
11
203-62-62790
HOSE, 1300MM
12
20Y-62-15951
CLIP
13
01010-81225
BOLT
14
01643-31232
WASHER
15
04434-51512
CLIP
16
04435-51512
CLIP
17
01010-81225
BOLT
18
01643-31232
WASHER
19
04435-51612
CLIP
20
20Y-62-22790
BAND, RED
21
20Y-62-22850
BAND, GREEN
22
20Y-62-22910
HOSE, 1050MM
23
203-62-62790
HOSE, 1300MM
24
113-899-7950
CLIP
25
20Y-62-22790
BAND, RED
26
20Y-62-22830
BAND, WHITE
27
20Y-62-22850
BAND, GREEN
28
209-62-77751
HOSE
29
209-62-77810
HOSE
30
113-899-7950
CLIP
31
20Y-62-22790
BAND, RED
32
209-62-77820
HOSE
33
20Y-62-22910
HOSE, 1050MM
34
04435-51612
CLIP
35
01010-81225
BOLT
36
01643-31232
WASHER
37
20Y-62-22790
BAND, RED
38
07184-00305
HOSE
38
201-62-72320
HOSE, 300MM
39
07184-00303
HOSE
39
209-62-77720
HOSE
