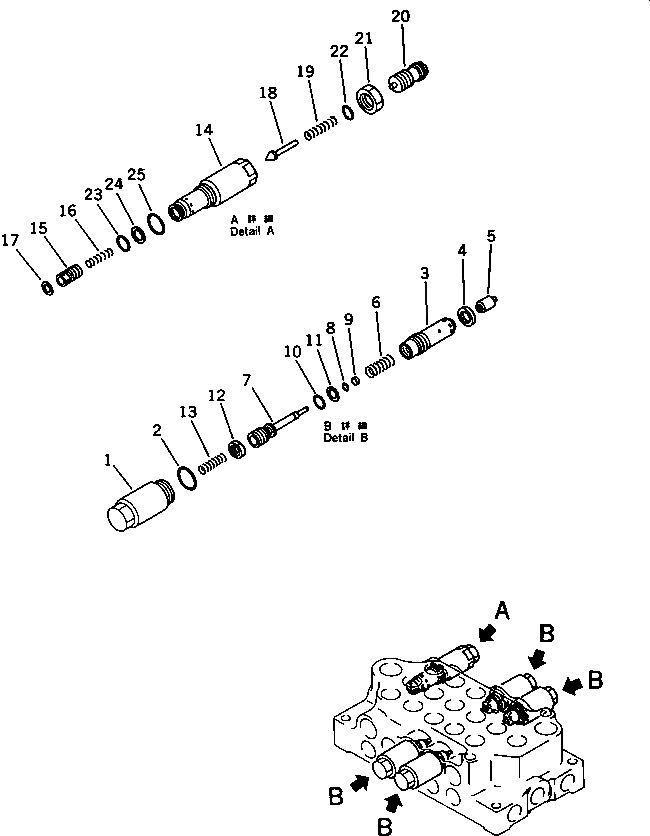

Запчасти Komatsu PC80LC-3 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) ГИДРАВЛИКА

|1

709-25-11202

VALVE ASS'Y,R.H.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6511 TO 6515.

|1

709-20-61101

VALVE ASS'Y,SUCTION AND SAFETY (345KG/CM2)

|1

709-20-61300

VALVE ASS'Y,SUCTION AND SAFETY (270KG/CM2)

1

SLEEVE

2

709-25-11390

O-RING

3

VALVE

4

SEAL

5

POPPET

6

SPRING

7

PISTON

8

O-RING

9

SEAL

10

O-RING

11

RING,BACK-UP

12

NUT

13

SPRING

|14

709-20-51103

VALVE ASS'Y,(300KG/CM2)

14

SLEEVE

15

VALVE

16

709-20-51270

SPRING

17

700-20-51240

RING

18

700-80-61190

POPPET

19

709-20-51231

SPRING

20

700-20-51340

SCREW

21

01583-11408

NUT

22

07000-02011

O-RING

23

700-22-11410

O-RING

24

700-80-64220

RING,BACK-UP

25

07002-02434

O-RING
