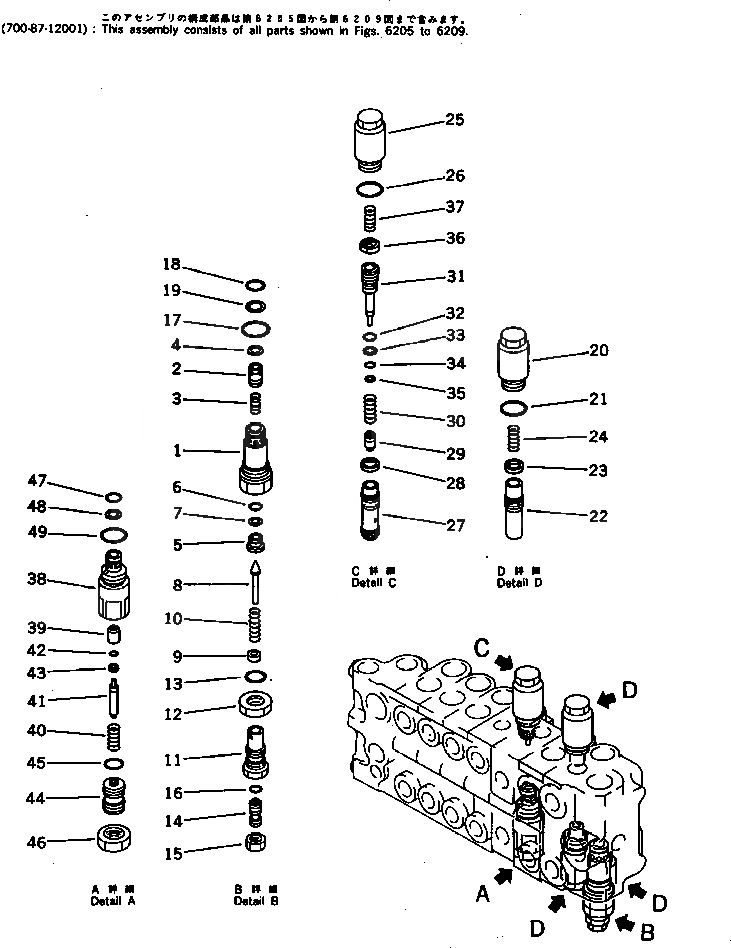

Запчасти Komatsu PF3-1 7-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-87-12001

VALVE ASS'Y,CONTROL

|1

700-86-55001

VALVE ASS'Y,MAIN RELIEF

1

SLEEVE

2

VALVE

3

700-80-51390

SPRING

4

700-80-51350

RING,SNAP

5

700-80-51740

SEAT

6

07000-22012

O-RING

7

07001-02012

RING,BACK-UP

8

700-80-61190

POPPET

9

709-90-51260

RETAINER

10

709-20-51231

SPRING

11

700-80-51360

HOLDER

12

07239-12410

NUT

13

07002-02434

O-RING

14

700-80-51630

SCREW

15

01582-11411

NUT

16

07000-02011

O-RING

17

07002-03334

O-RING

18

700-13-31161

O-RING

19

700-80-51190

RING,BACK-UP

|20

700-81-81000

VALVE ASS'Y,SUCTION

20

700-80-62310

SLEEVE

21

07002-03034

O-RING

22

VALVE

23

SEAL

24

700-80-62250

SPRING

|25

700-81-63002

VALVE ASS'Y,SUCTION AND SAFETY

25

700-80-62310

SLEEVE

26

07002-03034

O-RING

27

VALVE

28

SEAL

29

POPPET

30

SPRING

31

PISTON

32

O-RING

33

RING,BACK-UP

34

O-RING

35

SEAL

36

NUT

37

700-80-62250

SPRING

|38

700-81-74001

VALVE ASS'Y,SAFETY

38

SLEEVE

39

POPPET

40

SPRING

41

PISTON

42

O-RING

43

SEAL

44

SCREW

45

O-RING

46

NUT

47

700-22-11410

O-RING

48

700-80-64220

RING,BACK-UP

49

07002-03034

O-RING
