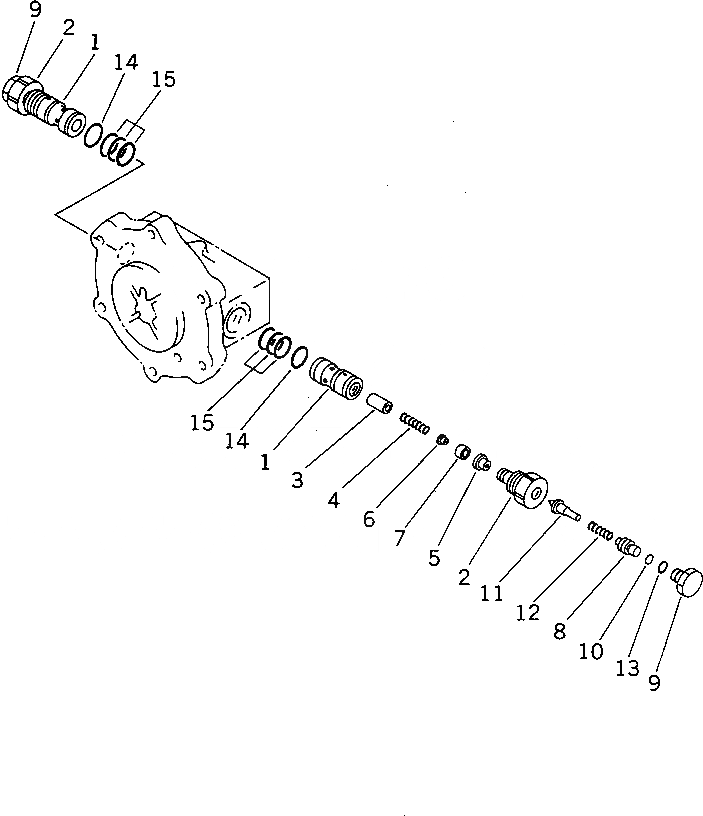

Запчасти Komatsu PF3-1 МОТОР ПОВОРОТА (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

202-966-4911

MOTOR ASS'Y,SWING (TZ504S000001-A)

|1

202-966-4910

MOTOR ASS'Y,SWING (TZ504S000000-A)

|1

TZ504S200001-A

MOTOR ASS'Y

|1

TZ504S200000-A

MOTOR ASS'Y

|1

TZ501S213501-F

RELIEF VALVE ASS'Y

|1

TZ501S213500-C

RELIEF VALVE ASS'Y

1

GUIDE,MAIN

2

GUIDE,PILOT

3

VALVE

4

SPRING

5

SEAT,PILOT

6

COLLAR

7

ORIFICE

8

TZ501S2032-02

RETAINER

|8

TZ501S2032-01

RETAINER

9

TZ24C4106-00

PLUG

10

TZ23C4007-00

SHIM

11

TZ501S2037-00

POPPET

|11

TZ21C4018-00

POPPET

12

TZ21C4019-00

SPRING

13

07000-11008

O-RING (KIT)

14

07000-13022

O-RING (KIT)

15

TZARP568-019-9

O-RING (KIT)

|1

TZ504S9000-00

SEAL KIT

1

TZARP568-040-9

O-RING,(SEE FIG.6561-27)

2

TZTC105-135-14

SEAL,OIL (SEE FIG.6561-28)

3

07000-11008

O-RING,(SEE FIG.6563-13)

4

07000-13022

O-RING,(SEE FIG.6563-14)

5

TZARP568-019-9

O-RING,(SEE FIG.6563-15)

6

TZ15Z-17-35-8

SEAL,OIL (SEE FIG.6563-21)

7

TZJW1516-G45-9

O-RING,(SEE FIG.6563-26)

8

TZJW1516-G35-9

O-RING,(SEE FIG.6563-27)

9

07000-12014

O-RING,(SEE FIG.6563-30)

10

07000-12011

O-RING,(SEE FIG.6563-32)
