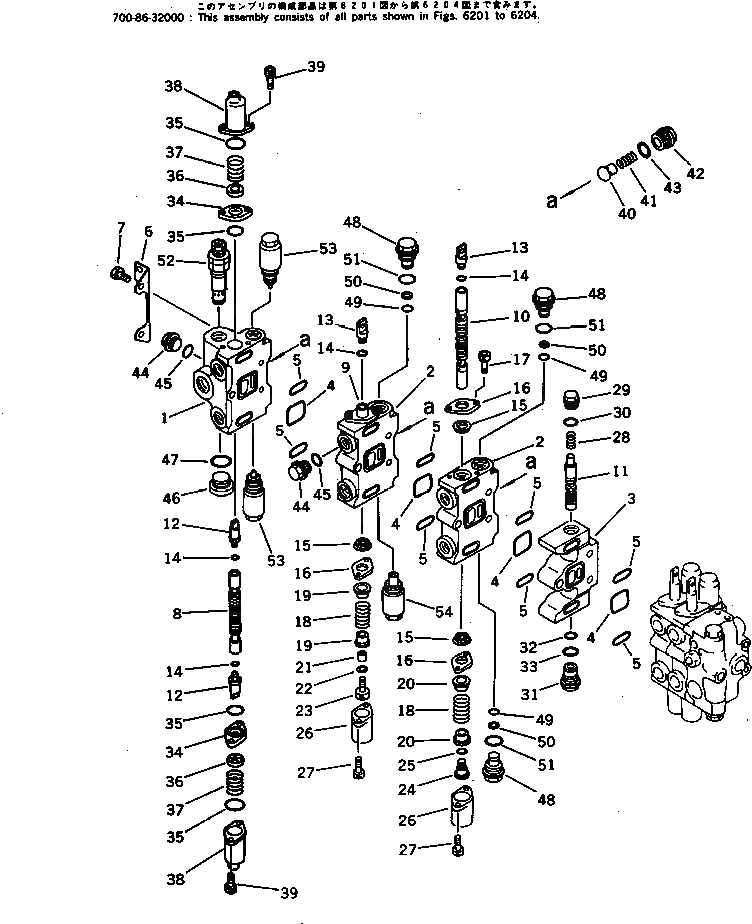

Запчасти Komatsu PF3-1 6-СЕКЦИОНН. УПРАВЛЯЮЩ. КЛАПАН ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-32000

VALVE ASS'Y,CONTROL

1

BODY,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

07000-13050

O-RING

5

07000-03038

O-RING

6

700-84-11330

BRACKET

7

01010-51020

BOLT

8

SPOOL

9

SPOOL

10

SPOOL

11

SPOOL

12

700-84-13790

JOINT

13

700-84-11870

JOINT

14

07002-11223

O-RING

15

700-84-13910

SEAL

16

700-84-13891

PLATE

17

01252-30612

BOLT

18

700-84-11650

SPRING

19

700-84-13711

RETAINER

20

700-84-13721

RETAINER

21

700-84-11641

COLLAR

22

01643-30823

WASHER

23

01252-30830

BOLT

24

700-84-11881

PLUG

25

07002-11223

O-RING

26

700-84-11390

COVER

27

01252-30625

BOLT

28

700-84-13570

SPRING

29

700-84-13870

PLUG

30

07002-02434

O-RING

31

700-84-13510

NIPPLE

32

07000-02015

O-RING

33

07002-02434

O-RING

34

700-84-13490

PLATE

35

700-84-11240

O-RING

36

700-84-13781

RETAINER

37

700-84-13770

SPRING

38

700-84-12510

CASE

39

01252-30625

BOLT

40

700-42-31460

VALVE

41

700-42-31470

SPRING

42

700-84-11320

PLUG

43

07002-13034

O-RING

44

700-22-11370

PLUG

45

07002-12434

O-RING

46

07040-13316

PLUG

47

07002-13334

O-RING

48

700-84-13960

PLUG

49

700-22-11410

O-RING

50

700-80-64220

RING,BACK-UP

51

07002-03034

O-RING

52

700-86-55001

VALVE ASS'Y,RELIEF

53

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

54

700-81-81000

VALVE ASS'Y,SUCTION
