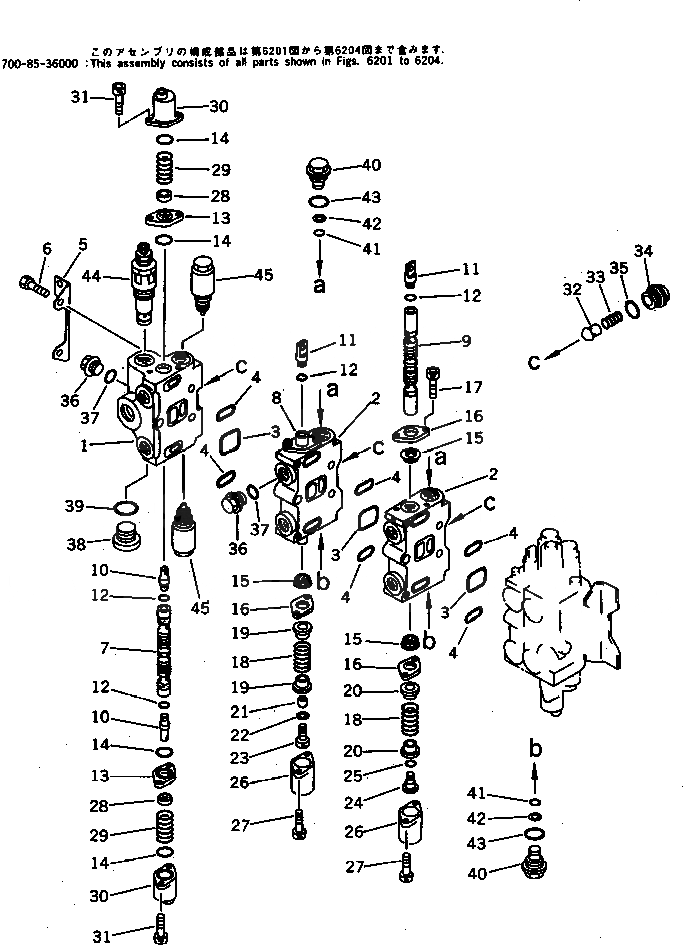

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-36000

CONTROL VALVE ASS'Y,L.H.

1

BODY,VALVE

2

BLOCK,VALVE

3

07000-13050

O-RING

4

07000-03038

O-RING

5

700-84-11330

BRACKET

6

01010-51020

BOLT

7

SPOOL

8

SPOOL

9

SPOOL

10

700-84-13790

JOINT

11

700-84-11870

JOINT

12

07002-11223

O-RING

13

700-84-13490

PLATE

14

700-84-11240

O-RING

15

700-84-13910

SEAL

16

700-84-13891

PLATE

17

01252-30612

BOLT

18

700-84-11650

SPRING

19

700-84-13711

RETAINER

20

700-84-13721

RETAINER

21

700-84-11641

COLLAR

22

01643-30823

WASHER

23

01252-30830

BOLT

24

700-84-11881

PLUG

25

07002-11223

O-RING

26

700-84-11390

COVER

27

01252-30625

BOLT

28

700-84-13781

RETAINER

29

700-84-13770

SPRING

30

700-84-12510

CASE

31

01252-30625

BOLT

32

700-42-31460

VALVE

33

700-42-31470

SPRING

34

700-84-11320

PLUG

35

07002-13034

O-RING

36

700-22-11370

PLUG

37

07002-12434

O-RING

38

07040-13316

PLUG

39

07002-13334

O-RING

40

700-84-13960

PLUG

41

700-22-11410

O-RING

42

700-80-64220

RING,BACK-UP

43

07002-03034

O-RING

44

700-87-58002

VALVE ASS'Y,RELIEF

45

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY
