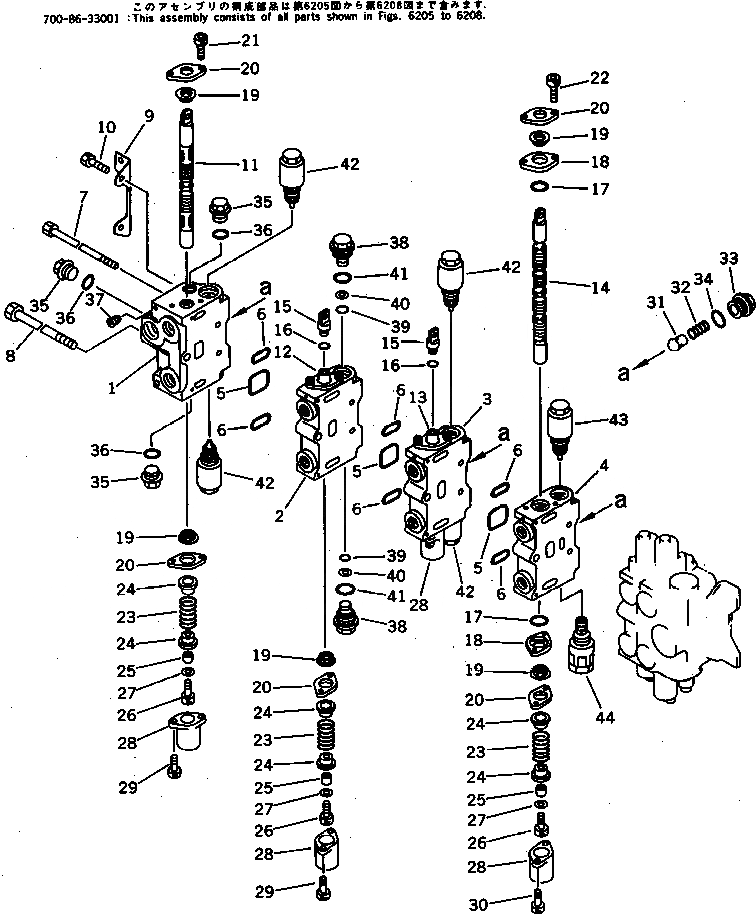

Запчасти Komatsu PF3W-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-86-33001

CONTROL VALVE ASS'Y,R.H.

1

COVER,BODY

2

BLOCK,VALVE

3

BLOCK,VALVE

4

BLOCK,VALVE

5

07000-13050

O-RING

6

07000-03038

O-RING

7

700-86-11112

BOLT

8

700-84-13220

BOLT

9

700-84-11330

BRACKET

10

01010-51020

BOLT

11

SPOOL

12

SPOOL

13

SPOOL

14

SPOOL

15

700-84-11870

JOINT

16

07002-11223

O-RING

17

700-84-11240

O-RING

18

700-84-13923

PLATE

19

700-84-13910

SEAL

20

700-84-13891

PLATE

21

01252-30612

BOLT

22

01252-30625

BOLT

23

700-84-11650

SPRING

24

700-84-13711

RETAINER

25

700-84-11641

COLLAR

26

01252-30830

BOLT

27

01643-30823

WASHER

28

700-84-11390

COVER

29

01252-30625

BOLT

30

01252-30630

BOLT

31

700-42-31460

VALVE

32

700-42-31470

SPRING

33

700-84-11320

PLUG

34

07002-13034

O-RING

35

709-30-62150

PLUG

36

07002-02034

O-RING

37

07043-70108

PLUG

38

700-84-13960

PLUG

39

700-22-11410

O-RING

40

700-80-64220

RING,BACK-UP

41

07002-03034

O-RING

42

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

43

700-81-63002

VALVE ASS'Y,SUCTION AND SAFETY

44

700-81-74001

VALVE ASS'Y,RELIEF
