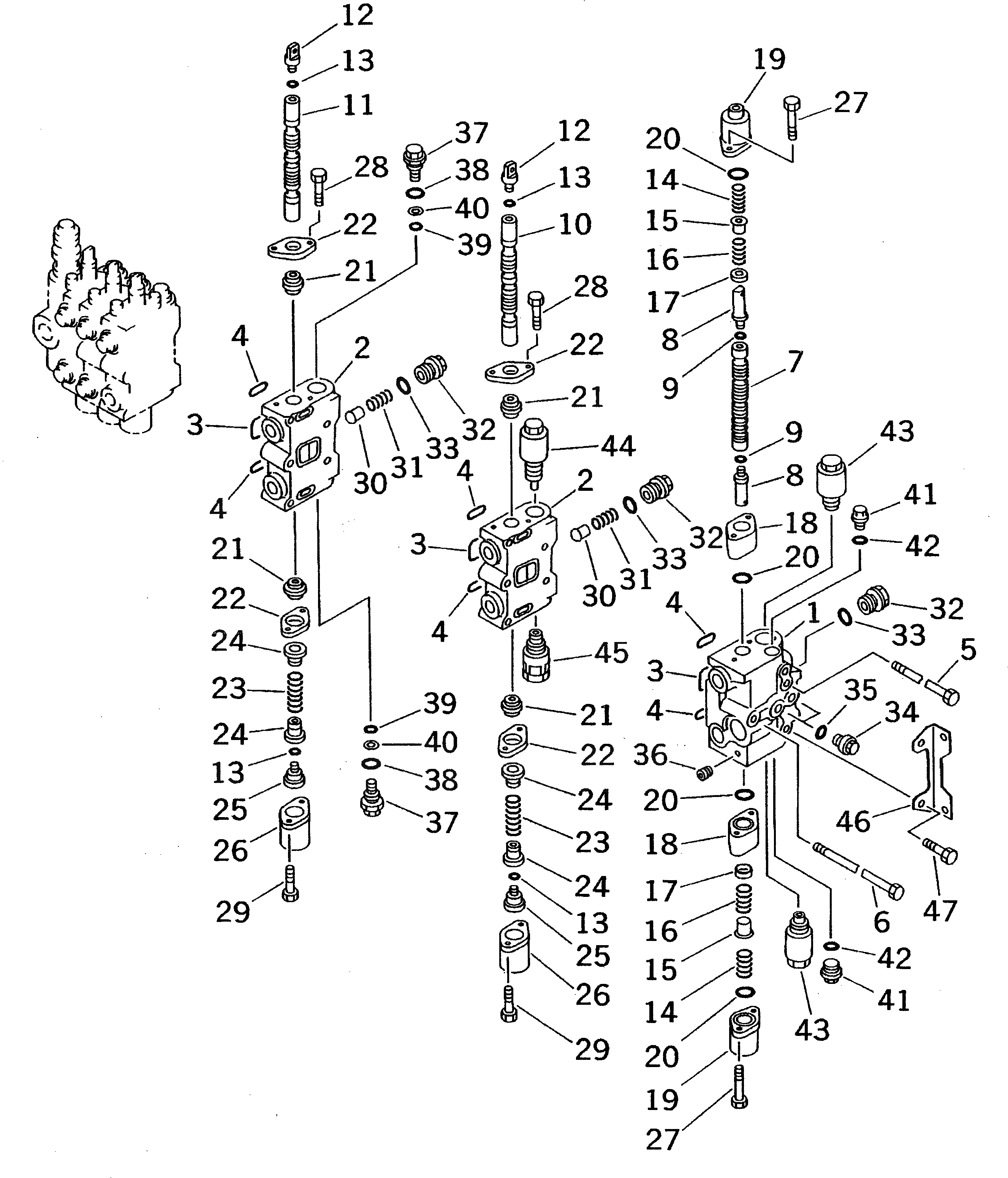

Запчасти Komatsu PW100-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) (ДЛЯ CONFLUENT НАВЕСН. ОБОРУД КОНТУР) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

700-86-39000

CONTROL VALVE ASS'Y,L.H.

1

COVER,VALVE

2

BLOCK,VALVE

3

07000-13050

O-RING

4

07000-03038

O-RING

5

700-86-11112

BOLT

6

700-84-13220

BOLT

7

SPOOL

8

700-84-14950

JOINT

9

07002-11223

O-RING

10

SPOOL

11

SPOOL

12

700-84-11870

JOINT

13

07002-11223

O-RING

14

700-84-14920

SPRING

15

700-84-14940

RETAINER

16

700-84-14910

SPRING

17

700-84-13781

RETAINER

18

700-84-14931

PLATE

19

700-84-12510

CASE

20

700-84-11240

O-RING

21

700-84-13910

SEAL

22

700-84-13891

PLATE

23

700-84-11650

SPRING

24

700-84-13721

RETAINER

25

700-84-11881

PLUG

26

700-84-11390

COVER

27

01252-30650

BOLT

28

01252-30612

BOLT

29

01252-30625

BOLT

30

700-42-31460

VALVE

31

700-42-31470

SPRING

32

700-84-11320

PLUG

33

07002-13034

O-RING

34

709-30-62150

PLUG

35

07002-02034

O-RING

36

07043-70108

PLUG

37

700-84-13960

PLUG

38

07002-03034

O-RING

39

700-22-11410

O-RING

40

700-80-64220

RING,BACK-UP

41

709-30-62150

PLUG

42

07002-02034

O-RING

43

700-81-81000

VALVE ASS'Y,SUCTION

44

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

45

700-81-71001

SAFETY VALVE ASS'Y

46

700-84-11330

BRACKET

47

01010-51020

BOLT
