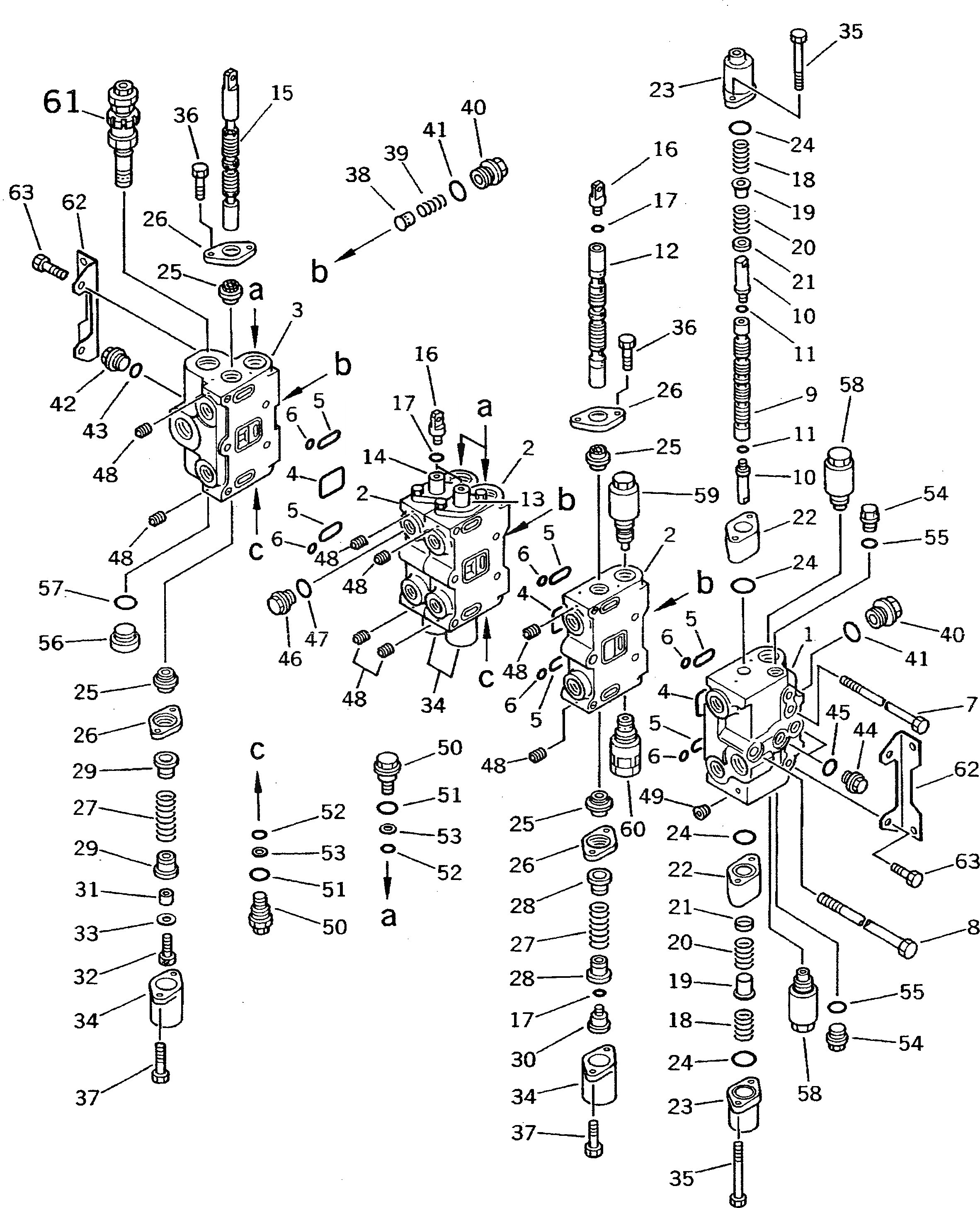

Запчасти Komatsu PW100N-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/)(№-9) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-31002

CONTROL VALVE ASS'Y,L.H.

|1

700-85-31001

CONTROL VALVE ASS'Y,L.H.

|1

700-85-31000

CONTROL VALVE ASS'Y,L.H.

1

COVER,VALVE

|1

COVER,VALVE

2

BLOCK,VALVE

|2

BLOCK,VALVE

3

BODY,VALVE

|3

BODY,VALVE

4

07000-13050

O-RING

5

07000-03038

O-RING

|5

07000-03030

O-RING

6

07000-01007

O-RING

7

700-85-11111

BOLT

8

700-84-13210

BOLT

9

SPOOL

|9

SPOOL

10

700-84-14950

JOINT

11

07002-11223

O-RING

12

SPOOL

13

SPOOL

|13

SPOOL

14

SPOOL

15

SPOOL

|15

SPOOL

16

700-84-11870

JOINT

17

07002-11223

O-RING

18

700-84-14920

SPRING

19

700-84-14940

RETAINER

20

700-84-14910

SPRING

21

700-84-13781

RETAINER

22

700-84-14931

PLATE

23

700-84-12510

CASE

24

700-84-11240

O-RING

25

700-84-13910

SEAL

26

700-84-13891

PLATE

27

700-84-11650

SPRING

28

700-84-13721

RETAINER

29

700-84-13711

RETAINER

30

700-84-11881

PLUG

31

700-84-11641

COLLAR

32

01252-30830

BOLT

33

01643-30823

WASHER

34

700-84-11390

COVER

35

01252-30650

BOLT

36

01252-30612

BOLT

37

01252-30625

BOLT

38

700-42-31460

VALVE

39

700-42-31470

SPRING

40

700-84-11320

PLUG

41

07002-13034

O-RING

42

700-22-11370

PLUG

43

07002-12434

O-RING

44

709-30-62150

PLUG

45

07002-02034

O-RING

46

700-22-11370

PLUG

47

07002-12434

O-RING

48

706-86-51170

PLUG

49

07043-70108

PLUG

50

700-84-13960

PLUG

51

07002-03034

O-RING

52

700-22-11410

O-RING

53

700-80-64220

RING,BACK-UP

54

709-30-62150

PLUG

55

07002-02034

O-RING

56

07040-13316

PLUG

57

07002-13334

O-RING

58

700-81-81000

VALVE ASS'Y,SUCTION

59

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|59

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

60

700-81-71001

SAFETY VALVE ASS'Y

61

700-87-58000

VALVE ASS'Y

62

700-84-11330

BRACKET

63

01010-51020

BOLT
