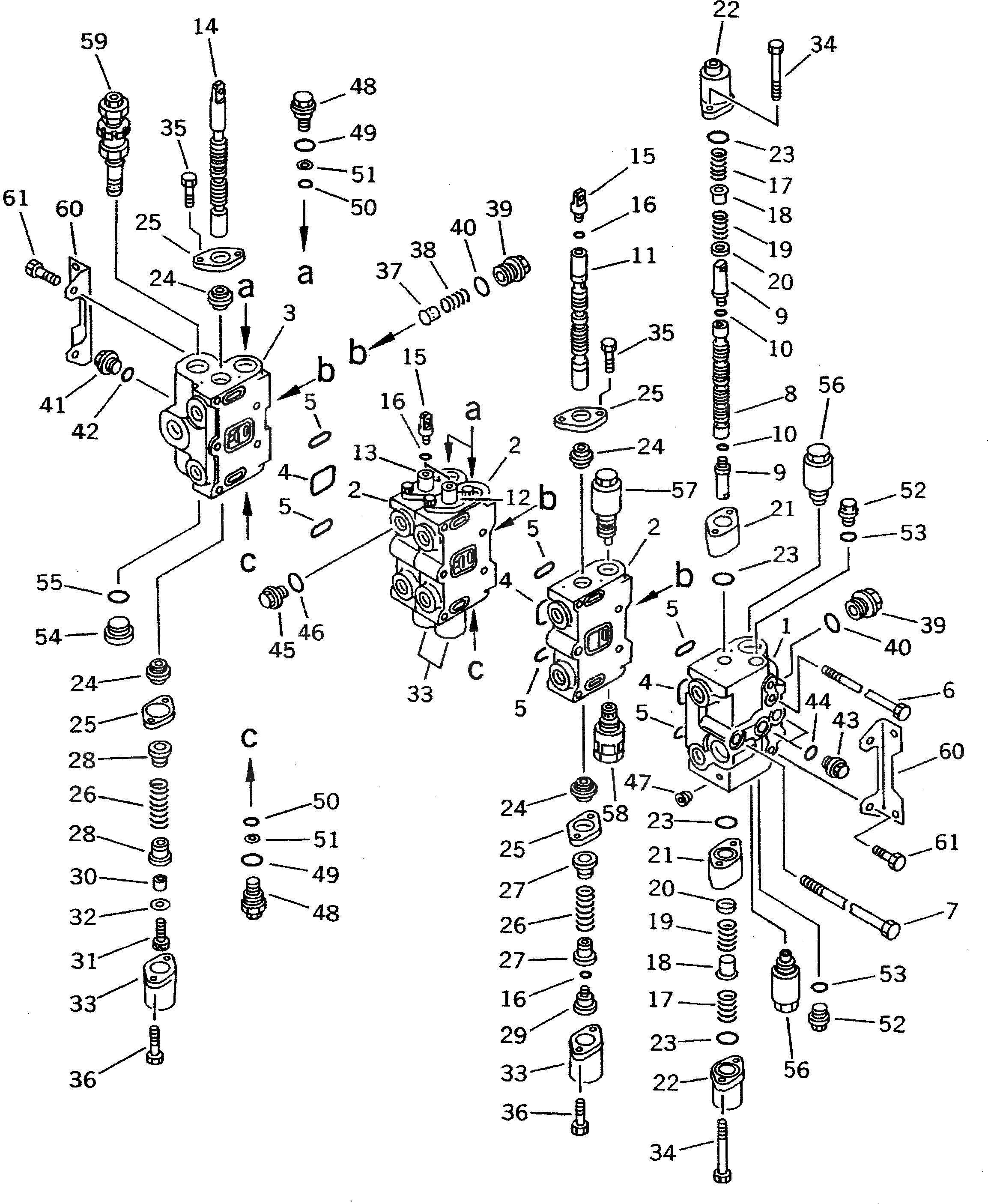

Запчасти Komatsu PW100S-3B УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/)(№9-) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-31003

CONTROL VALVE ASS'Y,L.H.

|1

700-85-31002

CONTROL VALVE ASS'Y,L.H.

|1

700-85-31001

CONTROL VALVE ASS'Y,L.H.

1

COVER,VALVE

2

BLOCK,VALVE

3

BODY,VALVE

4

07000-13050

O-RING

5

07000-03038

O-RING

6

700-85-11111

BOLT

7

700-84-13210

BOLT

8

SPOOL

9

700-84-14950

JOINT

10

07002-11223

O-RING

11

SPOOL

12

SPOOL

13

SPOOL

14

SPOOL

15

700-84-11870

JOINT

16

07002-11223

O-RING

17

700-84-14920

SPRING

18

700-84-14940

RETAINER

19

700-84-14910

SPRING

20

700-84-13781

RETAINER

21

700-84-14931

PLATE

22

700-84-12510

CASE

23

700-84-11240

O-RING

24

700-84-13910

SEAL

25

700-84-13891

PLATE

26

700-84-11650

SPRING

27

700-84-13721

RETAINER

28

700-84-13711

RETAINER

29

700-84-11881

PLUG

30

700-84-11641

COLLAR

31

01252-30830

BOLT

32

01643-30823

WASHER

33

700-84-11390

COVER

34

01252-30650

BOLT

35

01252-30612

BOLT

36

01252-30625

BOLT

37

700-42-31460

VALVE

38

700-42-31470

SPRING

39

700-84-11320

PLUG

40

07002-13034

O-RING

41

700-22-11370

PLUG

42

07002-12434

O-RING

43

709-30-62150

PLUG

44

07002-02034

O-RING

45

700-22-11370

PLUG

46

07002-12434

O-RING

47

07043-70108

PLUG

48

700-84-13960

PLUG

49

07002-03034

O-RING

50

700-22-11410

O-RING

51

700-80-64220

RING,BACK-UP

52

709-30-62150

PLUG

53

07002-02034

O-RING

54

07040-13316

PLUG

55

07002-13334

O-RING

56

700-81-81000

VALVE ASS'Y,SUCTION

57

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

58

700-81-71001

SAFETY VALVE ASS'Y

59

700-87-58002

VALVE ASS'Y

|59

700-87-58000

VALVE ASS'Y

60

700-84-11330

BRACKET

61

01010-51020

BOLT
