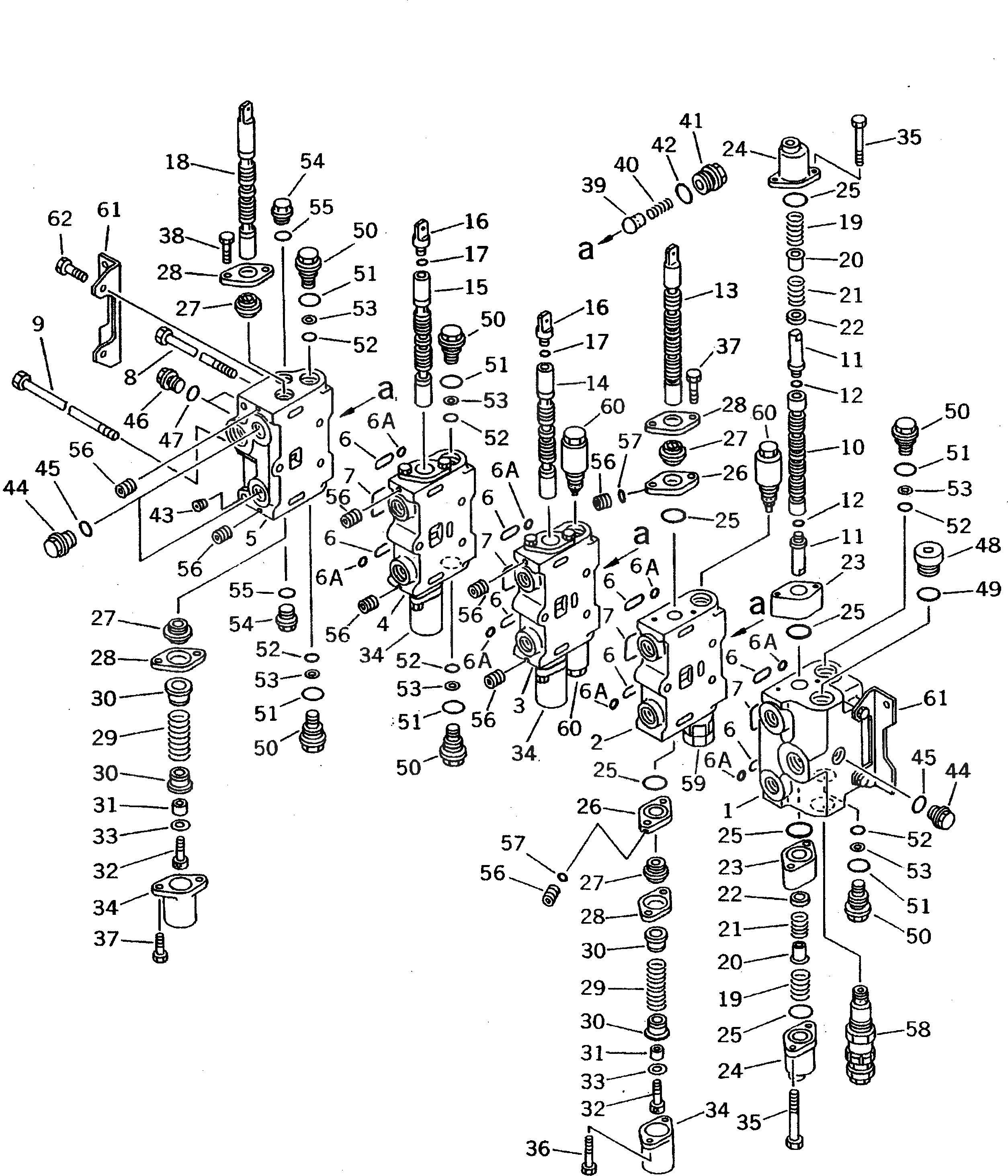

Запчасти Komatsu PW100S-3B УПРАВЛЯЮЩ. КЛАПАН¤ ПРАВ. (/) (ДЛЯ CONFLUENT НАВЕСН. ОБОРУД КОНТУР) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

700-85-32003

CONTROL VALVE ASS'Y

|1

700-85-32001

CONTROL VALVE ASS'Y

|1

700-85-32000

CONTROL VALVE ASS'Y

1

BODY,VALVE

|1

BODY,VALVE

2

BLOCK,VALVE

|2

BLOCK,VALVE

3

BLOCK,VALVE

|3

BLOCK,VALVE

4

BLOCK,VALVE

|4

BLOCK,VALVE

5

COVER,VALVE

|5

COVER,VALVE

6

07000-03038

O-RING

|6

07000-03030

O-RING

6A

07000-01007

O-RING

7

07000-13050

O-RING

8

700-85-11111

BOLT

9

700-84-13210

BOLT

10

SPOOL,TRAVEL

|10

SPOOL,TRAVEL

11

700-84-14950

JOINT

12

07002-11223

O-RING

13

SPOOL,BUCKET

14

SPOOL,BOOM LOW

15

SPOOL,ARM HIGH

16

700-84-11870

JOINT

17

07002-11223

O-RING

18

SPOOL,SERVICE

19

700-84-14920

SPRING

20

700-84-14940

RETAINER

21

700-84-14910

SPRING

22

700-84-13781

RETAINER

23

700-84-14931

PLATE

24

700-84-12510

CASE

25

700-84-11240

O-RING

26

700-84-13923

PLATE

|26

700-84-13921

PLATE

27

700-84-13910

SEAL

28

700-84-13891

PLATE

29

700-84-11650

SPRING

30

700-84-13711

RETAINER

31

700-84-11641

COLLAR

32

01252-30830

BOLT

33

01643-30823

WASHER

34

700-84-11390

COVER

35

01252-30650

BOLT

36

01252-30630

BOLT

37

01252-30625

BOLT

38

01252-30612

BOLT

39

700-42-31460

VALVE

40

700-42-31470

SPRING

41

700-84-11320

PLUG

42

07002-13034

O-RING

43

07043-70108

PLUG

44

700-22-11370

PLUG

45

07002-12434

O-RING

46

709-30-62150

PLUG

47

07002-02034

O-RING

48

07040-13316

PLUG

49

07002-13334

O-RING

50

700-84-13960

PLUG

51

07002-03034

O-RING

52

700-22-11410

O-RING

53

700-80-64220

RING,BACK-UP

54

709-30-62150

PLUG

55

07002-02034

O-RING

56

706-86-51170

PLUG

57

07000-01007

O-RING

58

700-87-58002

VALVE ASS'Y,RELIEF

|58

700-87-58000

VALVE ASS'Y,RELIEF

59

700-81-71001

SAFETY VALVE ASS'Y

60

700-81-61002

VALVE ASS'Y,SUCTION AND SAFETY

|60

700-81-61001

VALVE ASS'Y,SUCTION AND SAFETY

61

700-84-11330

BRACKET

62

01010-51020

BOLT
