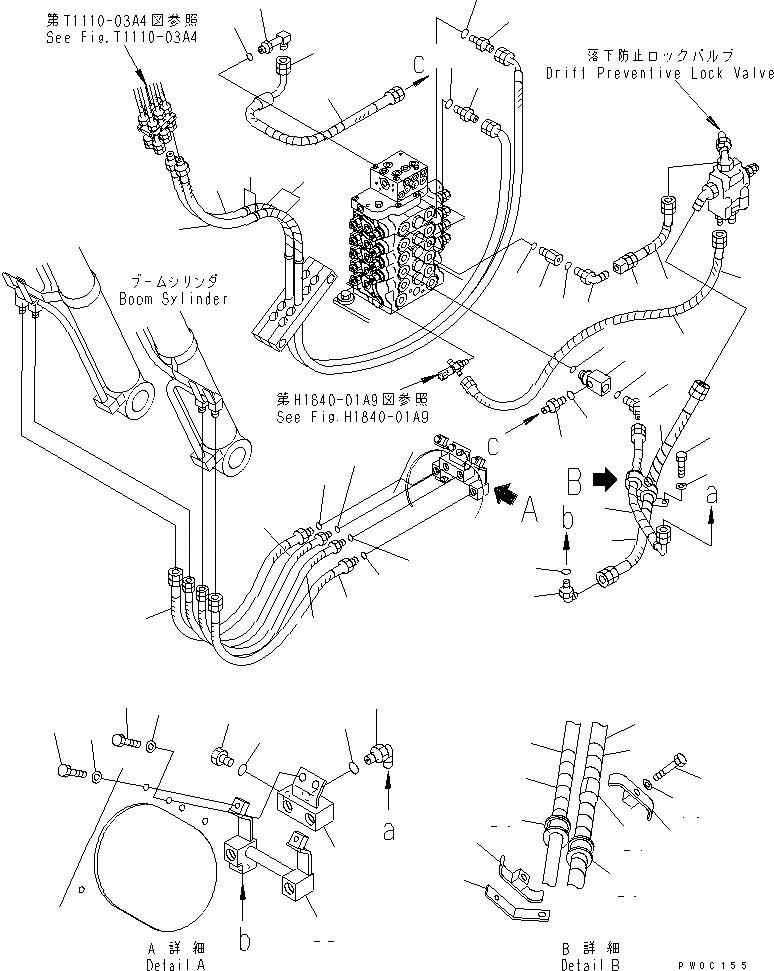

/ / / / / / ГИДРОЛИНИЯ СТРЕЛЫ (ДЛЯ OFFSET СТРЕЛА)(№-)
Запчасти Komatsu PW128UU-1 ГИДРОЛИНИЯ СТРЕЛЫ (ДЛЯ OFFSET СТРЕЛА)(№-) ГИДРАВЛИКА
1
2
3
3
4
5
6
7
7
8
9
10
11
12
12
13
13
14
15
16
17
17
18
19
20
20
21
22
23
24
25
26
27
28
29
30
30
31
31
32
33
34
34
35
35
36
36
37
37
38
39
40
41
42
43
44
44
45
45
46
47
48
49
1
203-62-61410
JOINT
2
203-62-66131
TEE
3
07002-22434
O-RING
4
124-49-32341
ELBOW
5
07002-22434
O-RING
6
21J-62-12621
HOSE
7
08210-01807
SPIRAL TUBE
8
07235-10628
ELBOW
9
07002-22434
O-RING
10
21J-62-12940
HOSE
11
08210-02902
SPIRAL TUBE
12
21J-62-12711
HOSE
13
08210-02907
SPIRAL TUBE
14
21J-62-12650
BRACKET
15
01010-81225
BOLT
16
01643-31232
WASHER
17
07094-30620
CLAMP
18
01010-81270
BOLT
19
01643-31232
WASHER
20
07095-00628
CUSHION
21
201-03-51320
SEAT
22
21J-62-13970
ELBOW
23
07235-10628
ELBOW
24
07002-22434
O-RING
25
21J-62-12640
BLOCK
26
07040-11812
PLUG
27
07002-21823
O-RING
28
07235-10422
ELBOW
29
07002-22034
O-RING
30
01010-81235
BOLT
31
01643-31232
WASHER
32
21J-62-11540
HOSE
33
08210-01210
SPIRAL TUBE
34
203-62-61290
HOSE¤ 660MM
35
07002-22434
O-RING
36
203-62-61320
HOSE¤ 660MM
37
07002-22034
O-RING
38
11T-09-11280
NIPPLE
39
07002-21823
O-RING
40
205-62-74540
ELBOW
41
07002-21423
O-RING
42
21J-62-15380
HOSE
43
08210-01808
SPIRAL TUBE
44
232-60-14271
NIPPLE
45
07002-12434
O-RING
46
21J-62-12290
HOSE
47
21J-62-12280
HOSE
48
08210-01805
SPIRAL TUBE
49
08034-20823
BAND
