Запчасти Komatsu PW150-1 ЭЛЕКТРИКА (/) (REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ

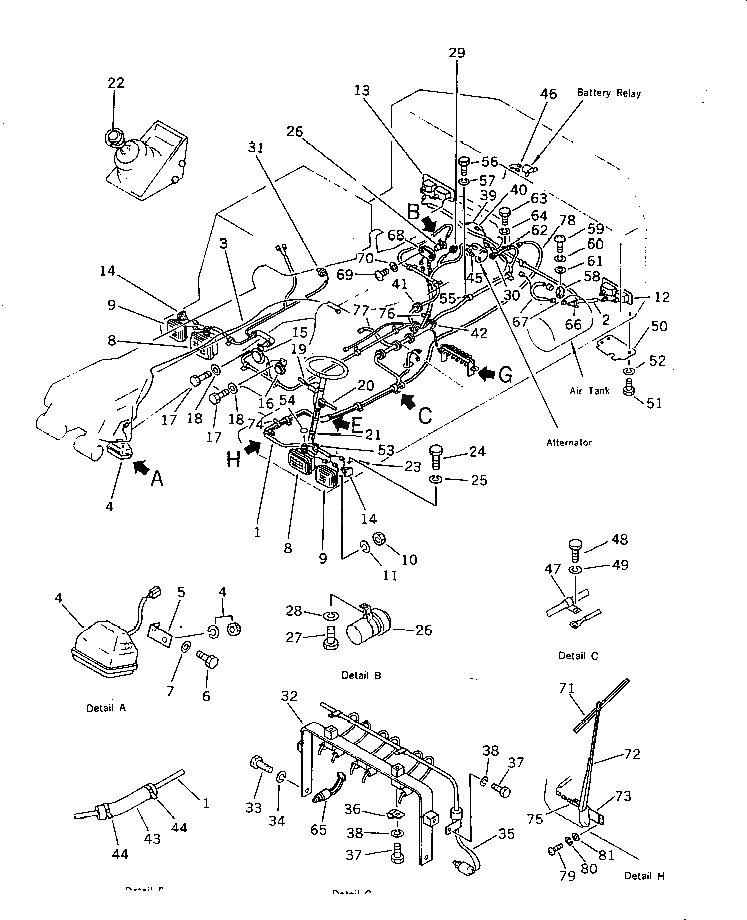

Схема запчастей Komatsu PW150-1 - ЭЛЕКТРИКА (/) (REGULATION OF SWEDEN) СПЕЦ. APPLICATION ЧАСТИ¤ МАРКИРОВКА¤ ИНСТРУМЕНТ И РЕМКОМПЛЕКТЫ
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20G-06-14223

WIRING

2

20G-06-14214

HARNESS

2

20G-06-14213

HARNESS

2

22W-06-13590

DIODE

2

22W-06-13430

DIODE

3

20G-06-14252

WIRE

4

22W-06-12381

LAMP ASS'Y,WORK

5

20G-06-13320

BRACKET

6

01010-51630

BOLT

7

01643-31645

WASHER

8

20G-06-13350

LAMP,HEAD

8

20G-06-13150

LAMP,HEAD

9

20G-06-13110

LAMP ASS'Y

10

01580-10504

NUT

11

01601-20513

WASHER,SPRING

12

20G-06-13210

LAMP ASS'Y,L.H.

13

20G-06-13220

LAMP ASS'Y,R.H.

14

20D-06-12430

LAMP ASS'Y

15

08160-52410

HORN

15

205-06-64430

HORN

16

175-06-39170

HORN

17

01010-50816

BOLT

18

01641-20812

WASHER

19

20G-06-12350

SWITCH ASS'Y,F-R

20

20G-06-12370

SWITCH,TURN SIGNAL

21

362-43-15360

BAND

22

203-06-42141

SWITCH,HORN

22

203-06-42140

SWITCH,HORN

22

205-06-71360

SWITCH,HORN

23

20G-06-14320

WIRE

24

01010-50812

BOLT

25

01602-20825

WASHER,SPRING

26

08165-22400

BUZZER,(FOR JAPAN)

27

01010-51016

BOLT

28

01602-21030

WASHER,SPRING

29

08073-00505

SWITCH

30

08620-00000

SENSOR

31

08073-00503

SWITCH

32

20G-06-15141

PLATE

33

01010-51025

BOLT

34

01602-21030

WASHER,SPRING

35

203-06-41661

SWITCH,SWING BRAKE PRESSURE

35

20G-06-41660

SWITCH,SWING BRAKE PRESSURE

36

08036-01814

CLIP

37

01010-51016

BOLT

38

01602-21030

WASHER,SPRING

39

08028-12065

CABLE

40

08038-04030

CAP

41

08037-03620

GROMMET

42

08037-05022

GROMMET

43

203-04-31230

COVER

44

08034-00519

BAND

45

08038-00518

CAP

46

08038-00518

CAP

47

21T-62-25740

CLIP

48

01010-51016

BOLT

49

01602-21030

WASHER,SPRING

50

20G-06-13270

COVER,REAR LAMP

51

01010-50610

BOLT

52

01602-20619

WASHER,SPRING

53

08034-00310

BAND

54

09415-02520

CAP

55

08036-21814

CLIP

56

01010-51016

BOLT

57

01602-21030

WASHER,SPRING

58

283-06-17130

CLIP

59

01220-40616

SCREW

60

01602-20619

WASHER,SPRING

61

01641-20608

WASHER

62

08036-30814

CLIP

63

01010-51016

BOLT

64

01602-21030

WASHER,SPRING

65

205-06-72430

SWITCH

66

08036-01814

CLIP

67

20E-06-11190

WIRING

68

08141-02400

LAMP

69

01220-40412

SCREW

70

01641-20405

WASHER

71

08185-00300

BLADE

72

08184-30350

ARM

73

205-06-71730

MOTOR

74

08034-00519

BAND

75

08036-01814

CLIP

76

08036-01814

CLIP

77

20G-06-12620

HARNESS

78

20G-06-12630

HARNESS

79

01220-40516

SCREW

80

01601-20513

WASHER

81

01641-20508

WASHER
