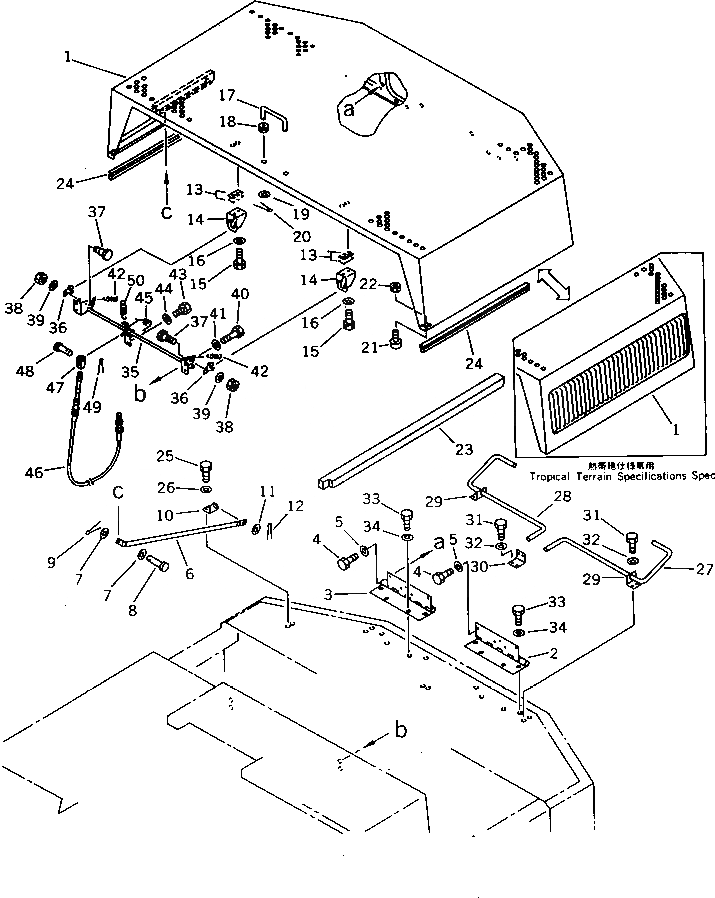

Запчасти Komatsu PW150-1 MACHINERY ОБСТАНОВКА (/)(№8-) ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

|$0

20G-54-00011

MACHINE CAB ASS'Y

|$1

20G-54-00100

MACHINE CAB ASS'Y,(TROPICAL TERRAIN SPEC.)

1

HOOD

1

HOOD,(TROPICAL TERRAIN SPEC.)

2

203-54-44950

HINGE,L.H.

3

203-54-44960

HINGE,R.H.

4

01010-51020

BOLT

5

01643-31032

WASHER

6

21K-54-26271

STAY

7

175-54-88110

WASHER

8

04205-11035

PIN

9

04050-13020

PIN,COTTER

10

21K-54-26280

BRACKET

11

01641-21016

WASHER

12

04050-13020

PIN,COTTER

13

203-54-44940

PLATE

14

203-54-42350

BRACKET

15

01010-51025

BOLT

16

01643-31032

WASHER

17

20G-54-11590

BAR

18

03037-01008

GROMMET

19

01643-31032

WASHER

20

04050-12020

PIN,COTTER

21

201-54-21360

CUSHION

22

01580-10504

NUT

23

20G-54-11531

SHEET

24

21K-54-26121

TRIM

25

01010-51025

BOLT

26

01643-31032

WASHER

27

21K-54-26250

BAR

28

21K-54-26260

BAR

29

203-54-42271

PLATE

29

203-54-42270

PLATE

30

203-54-42281

PLATE

30

203-54-42280

PLATE

31

01010-51020

BOLT

31

01010-51025

BOLT

32

01643-31032

WASHER

33

01010-51020

BOLT

34

01643-31032

WASHER

35

20G-54-11771

LEVER

36

203-54-42320

LEVER

37

20T-54-26310

BOLT

38

01580-11210

NUT

39

01643-31232

WASHER

40

01010-51040

BOLT

41

01643-31032

WASHER

42

203-54-42340

SPRING

43

01010-51020

BOLT

44

01643-31032

WASHER

45

09467-00002

SPRING

46

20G-54-11790

CABLE

47

04210-20500

YOKE

48

04205-10514

PIN

49

04050-11210

PIN,COTTER

50

145-43-36550

SPRING
