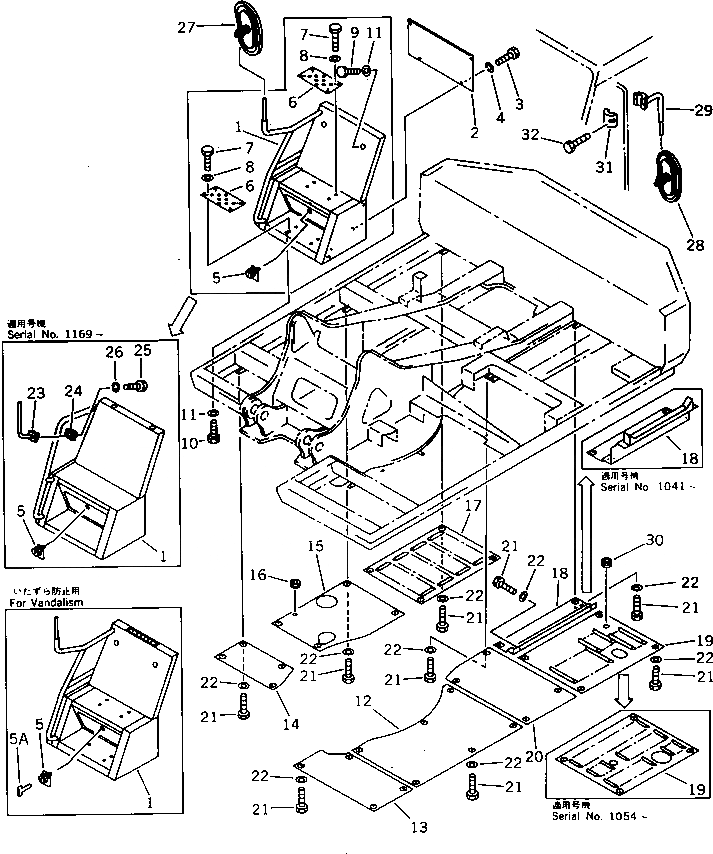

Запчасти Komatsu PW150-1 MACHINERY ОБСТАНОВКА (/) ОСНОВНАЯ РАМА¤ ШАССИ И КАБИНА

1

20G-54-11222

COVER

1

20G-54-11221

COVER

1

20G-54-19120

COVER,(FOR VANDALISM PROTECTION)

2

21K-54-26430

COVER

3

01010-50816

BOLT

4

01602-20825

WASHER,SPRING

5

205-60-71220

LOCK ASS'Y

5A

08086-10001

KEY,(FOR VANDALISM PROTECTION)

6

20G-54-11240

PLATE

7

01010-50616

BOLT

8

01643-30623

WASHER

9

01010-51020

BOLT

9

01010-51045

BOLT

10

01010-51020

BOLT

10

01010-51025

BOLT

11

01643-31032

WASHER

12

20G-54-11472

COVER

13

20G-54-11482

COVER

14

20G-54-11920

COVER

15

20G-54-11492

COVER

16

113-899-6380

GROMMET

17

20G-54-11422

COVER

18

20G-54-11444

COVER

18

20G-54-11443

COVER

19

20G-54-11454

COVER

19

20G-54-11453

COVER

20

20G-54-11462

COVER

21

01010-51025

BOLT

21

01010-51025

BOLT

22

01643-31032

WASHER

22

01643-31032

WASHER

23

20G-54-11970

SUPPORT

24

20G-54-11980

CLAMP

25

01010-51040

BOLT

26

01602-21030

WASHER,SPRING

27

08174-33023

MIRROR

28

08174-13117

MIRROR,BACK

29

20G-54-19250

SUPPORT,L.H.

30

08037-01610

GROMMET

31

205-54-77550

CLAMP

32

01252-41025

BOLT
