ЗАДН. МОСТ (/) (.M ШИР.)

Запчасти Komatsu PW160-7K ЗАДН. МОСТ (/) (.M ШИР.) SUSPENTION И КОЛЕСА

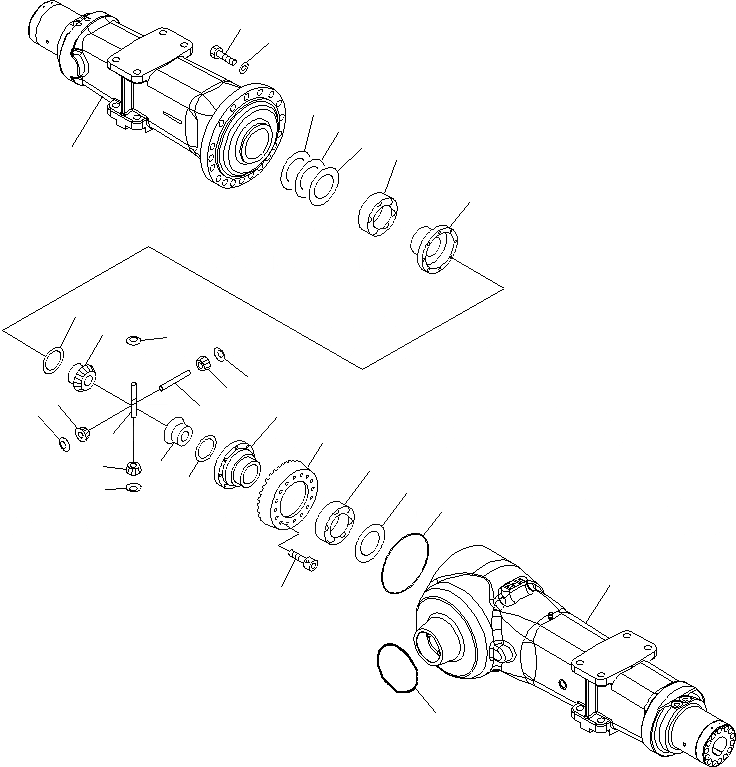

Схема запчастей Komatsu PW160-7K - ЗАДН. МОСТ (/) (.M ШИР.) SUSPENTION И КОЛЕСА
10
14
15
18
17
16
13
1
5
2
6
3
4
6
6
4
3
6
6
3
2
5
1
8
13
7
19
12
11
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

|$1

20G-22-31001

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.S1150-61A0 TO S1150-64A0.

|1

20G-23-32120

BEVEL GEAR ASS'Y

1

20G-23-31730

CASING

2

20G-23-31740

GEAR,BEVEL

3

20G-23-31750

GEAR,BEVEL

4

20G-23-31760

PIN

5

20G-23-31770

SPACER

6

20G-23-31780

WASHER

7

20G-22-31220

SCREW

8

20G-22-31230

GEAR ASS'Y

9

20G-22-31240

BODY,LONG

10

20G-22-31250

BODY,SHORT

11

20G-22-31260

O-RING

12

20G-23-31610

O-RING

13

20G-23-31830

BEARING,ROLLER

14

20G-22-31270

SCREW

15

20G-22-31280

WASHER

16

20G-23-31840

SHIM RING

17

20G-23-31850

SHIM RING

18

20G-23-31860

SHIM RING

19

20G-22-31290

SHIM RING
