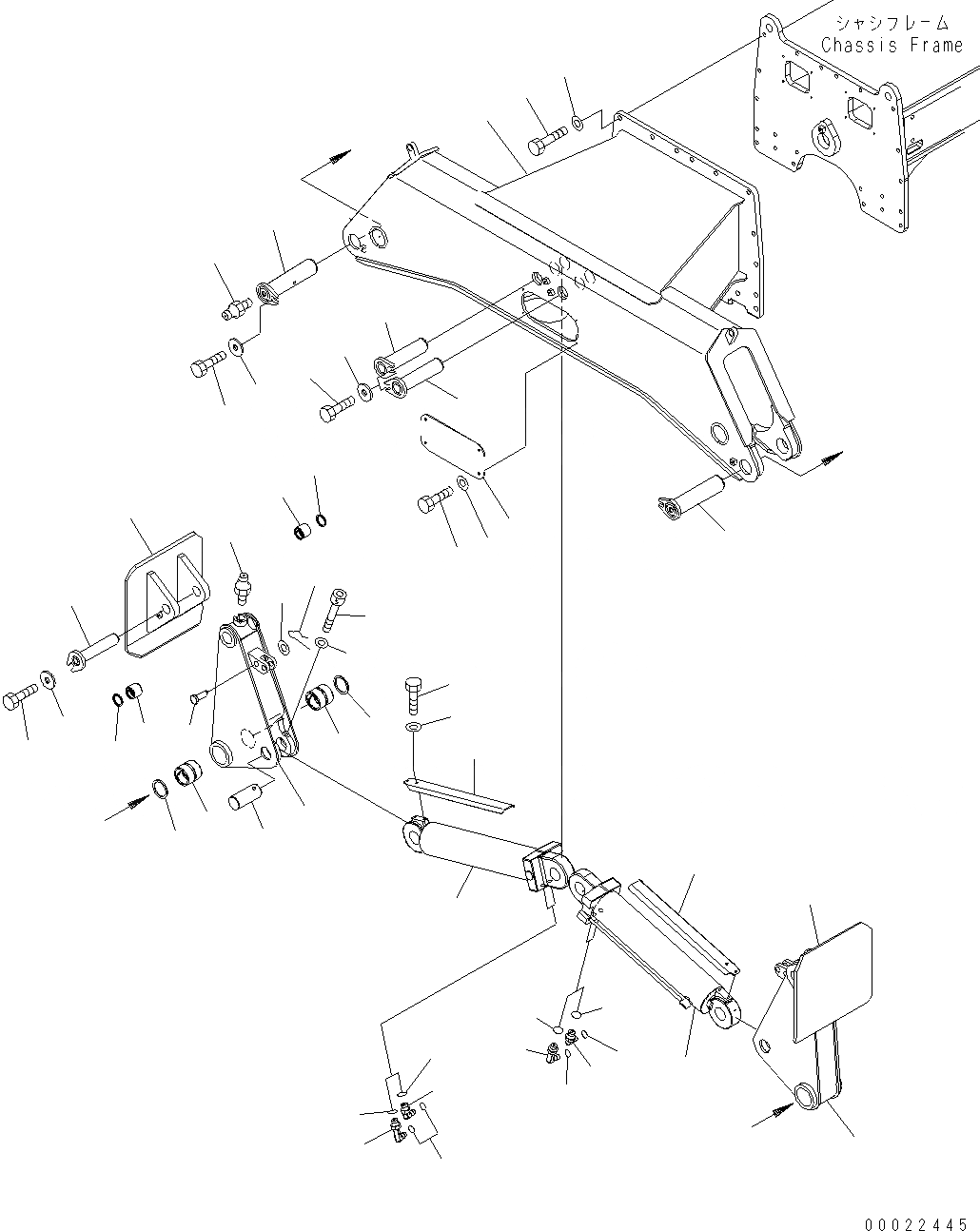

Запчасти Komatsu PW160-8 ПЕРЕДН. ОПОРА ПЕРЕДН. ОПОРА
30
31
26
24
12
10
11
11
10
13
9
8
29
7
8
9
22
23
21
16
21
25
7
16
19
17
19
20
20
18
20
17
19
18
20
15
14
33
32
3
4
2
28
27
35
37
36
38
28
34
27
1
5
6
a
a
b
b
1
20G-910-4290
Frame Assembly
2
20K-910-4210
Cover
3
01010-80825
Bolt
4
01643-30823
Washer
5
01010-82060
Bolt
6
01643-32060
Washer
|$7
20G-910-3713
Leg Assembly
8
203-70-56130
Bushing
9
07145-00070
Seal
10
20G-47-13180
Bushing
11
07145-00045
Seal, Dust
12
07020-00000
Fitting, Grease
13
20E-47-K1560
Pin
14
04052-11664
Pin
15
01641-21626
Washer
16
20G-61-31131
Cylinder Assembly
17
02782-10315
Elbow
18
02782-10316
Elbow
19
02896-61009
O-Ring
20
07002-62034
O-Ring
21
20E-61-K2581
Plate
22
01010-81020
Bolt
23
01643-31032
Washer
24
20G-910-3811
Foot
25
20G-910-4180
Foot
26
20G-910-3861
Pin
27
20K-910-3841
Pin
28
20K-910-3851
Pin
29
20E-47-K1430
Pin
30
01010-81016
Bolt
31
144-854-1890
Washer
32
01253-41210
Bolt
33
01641-21223
Washer
34
07020-00000
Fitting, Grease
35
01010-81016
Bolt
36
01010-81016
Bolt
37
144-854-1890
Washer
38
144-854-1890
Washer
