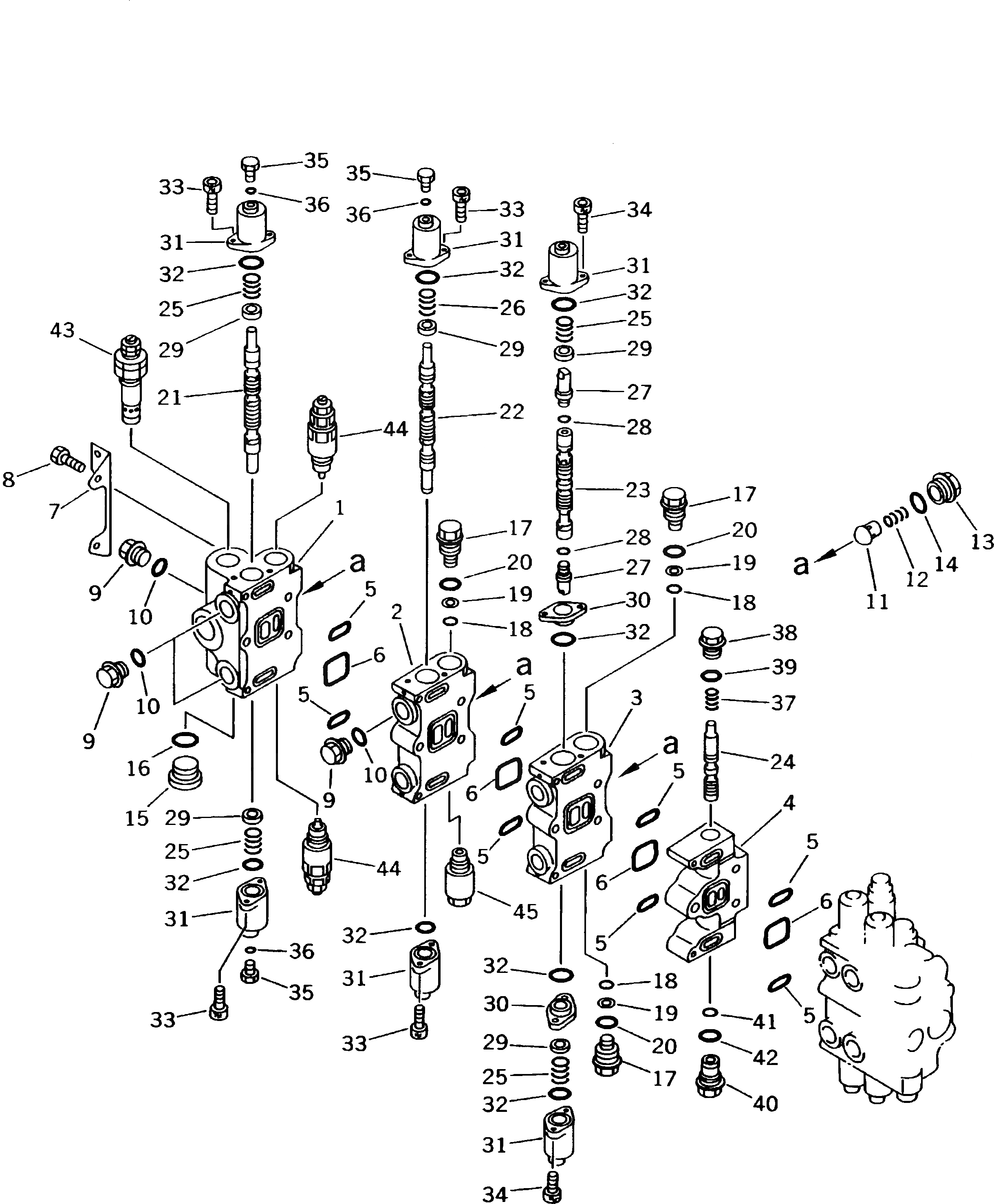

Запчасти Komatsu PW170-5K ГИДРАВЛ УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-86-11401

VALVE ASS'Y,L.H.

1

BODY,VALVE

2

BLOCK,VALVE

3

BLOCK,VALVE

4

BLOCK,VALVE

5

07000-03038

O-RING

6

07000-13050

O-RING

7

700-84-11330

BRACKET

8

01010-51020

BOLT

9

709-74-91860

PLUG

10

07002-12434

O-RING

11

700-42-31460

VALVE

12

700-42-31470

SPRING

13

700-84-11320

PLUG

14

07002-13034

O-RING

15

07040-13316

PLUG

16

07002-13334

O-RING

17

709-74-91510

PLUG

18

07000-11009

O-RING

19

07001-01009

RING,BACK-UP

20

709-25-11390

O-RING

21

SPOOL,SERVICE

22

SPOOL,BOOM HIGH

23

SPOOL,SWING

24

SPOOL,SWING PRIORITY

25

700-84-15740

SPRING

26

700-84-15720

SPRING

27

700-84-13790

JOINT

28

07002-11223

O-RING

29

700-84-13781

RETAINER

30

700-84-13490

PLATE

31

700-84-12510

CASE

32

700-84-11240

O-RING

33

01252-30616

BOLT

34

01252-30625

BOLT

35

07040-11409

PLUG

36

07002-01423

O-RING

37

700-84-13570

SPRING

38

700-84-13870

PLUG

39

07002-02434

O-RING

40

700-84-13510

NIPPLE

41

07000-02015

O-RING

42

07002-02434

O-RING

43

709-80-52900

RELIEF VALVE ASS'Y,RELIEF

44

709-70-74700

VALVE ASS'Y,SUCTION AND SAFETY

45

709-20-81201

VALVE ASS'Y,SUCTION
