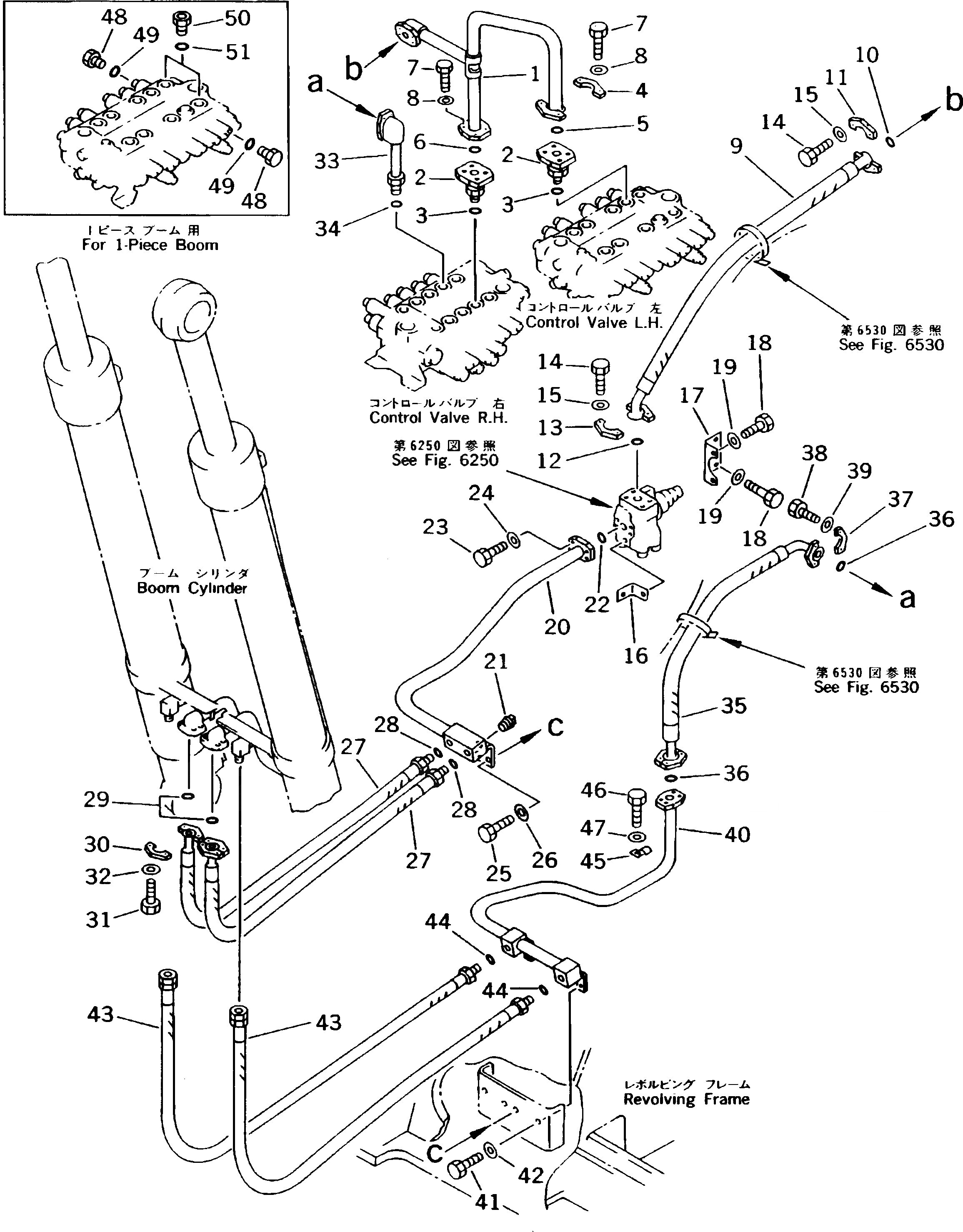

Запчасти Komatsu PW170-5K ГИДРОЛИНИЯ (ЦИЛИНДР СТРЕЛЫ) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

1

21K-62-34321

TUBE

2

21K-62-34310

FLANGE

3

07002-12434

O-RING

4

07371-30640

FLANGE,SPLIT

5

07000-13025

O-RING

6

07000-13030

O-RING

7

07372-21035

BOLT

8

01643-51032

WASHER

9

21K-62-K1110

HOSE

10

07000-13025

O-RING

11

07371-30640

FLANGE,SPLIT

12

07000-13032

O-RING

13

07371-31049

FLANGE,SPLIT

14

07372-21035

BOLT

15

01643-51032

WASHER

16

203-62-56410

PLATE

17

203-62-56390

PLATE

18

01010-51020

BOLT

19

01643-31032

WASHER

20

21P-62-23790

TUBE

21

07042-00211

PLUG

22

07000-13030

O-RING

23

07372-21035

BOLT

24

01643-51032

WASHER

25

01010-51030

BOLT

26

01643-31032

WASHER

27

20G-62-K1720

HOSE,(FOR 2-PIECE BOOM)

|27

21K-62-K1140

HOSE,(FOR 1-PIECE BOOM)

28

07002-12434

O-RING

29

07000-13025

O-RING

30

07371-30640

FLANGE,SPLIT

31

07372-21035

BOLT

32

01643-51032

WASHER

33

21K-62-34340

ELBOW

34

07002-12434

O-RING

35

21P-62-K1140

HOSE

36

07000-13025

O-RING

37

07371-30640

FLANGE,SPLIT

38

07372-21035

BOLT

39

01643-51032

WASHER

40

21K-62-34361

TUBE

41

01010-51030

BOLT

42

01643-31032

WASHER

43

20G-62-K1710

HOSE,(FOR 2-PIECE BOOM)

|43

21K-62-K1150

HOSE,(FOR 1-PIECE BOOM)

44

07002-12434

O-RING

45

112-62-32150

CLAMP

46

01010-51020

BOLT

47

01643-31032

WASHER

48

07040-11409

PLUG,(FOR 1-PIECE BOOM)

49

07002-01423

O-RING,(FOR 1-PIECE BOOM)

50

07040-12412

PLUG,(FOR 1-PIECE BOOM)

51

07002-12434

O-RING,(FOR 1-PIECE BOOM)
