/ / / / / / / СМАЗКА TWO-ЧАСТИ СТРЕЛА, С АВТОМАТИЧ. СМАЗКОЙ, СТРЕЛА

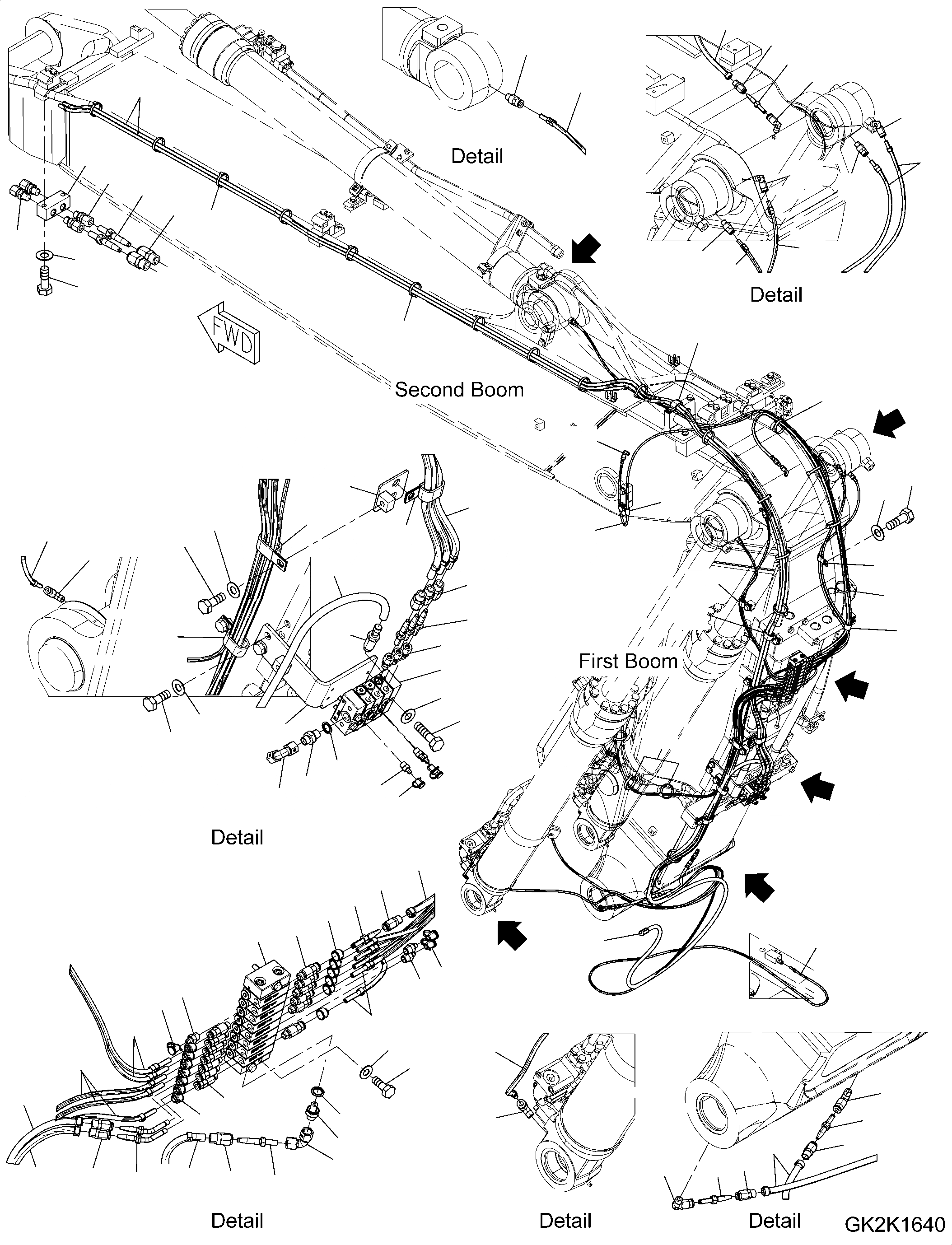

Запчасти Komatsu PW180-10 СМАЗКА TWO-ЧАСТИ СТРЕЛА, С АВТОМАТИЧ. СМАЗКОЙ, СТРЕЛА СМАЗКА TWO-ЧАСТИ СТРЕЛА, С АВТОМАТИЧ. СМАЗКОЙ, СТРЕЛА
9
A
B
10
C
D
E
F
14
12
13
15
44
13
18
15
21
13
46
14
45
32
21
15
20
14
15
19
34
32
32
13
27
28
22
31
44
24
28
15
15
27
33
13
38
29
29
45
32
34
46
30
37
24
36
35
17
16
23
26
32
25
39
40
43
41
42
9
10
12
3
2
1
15
38
8
7
7
8
15
15
17
15
15
16
9
13
2
3
4
13
12
5
9
10
10
6
13
12
9
10
44
11
45
46
A
B
C
D
E
F
1
20J-S95-5640
Feeder, Boom
2
42W-09-H4650
Valve
3
42W-09-H2940
Cap
4
07005-01412
Seal Washer
5
42W-09-H6790
Straight Connector
6
42W-09-H3330
Elbow
7
421-09-H3870
Nipple
8
42W-09-H3350
Cap
9
42W-09-H0P00
Hose, 5m
9
42W-09-H0P01
Hose, 10m
9
42W-09-H0P02
Hose, 15m
10
423-00-H1920
Bushing
11
42T-09-H4090
Tube, 45 Degrees
12
421-00-H0P13
Tube
13
419-09-H2970
Elbow
14
419-09-H2950
Connector
15
42W-09-H0P06
Hose, 5m
15
42W-09-H0P07
Hose, 10m
15
42W-09-H0P08
Hose, 15m
16
01010-80645
Bolt
17
01643-30623
Washer
18
42W-09-H3340
Block
19
01010-80630
Bolt
20
01643-30623
Washer
21
42W-09-H2880
Union
22
20J-S95-5590
Plate
23
20J-S95-5620
Plate
24
04435-51810
Clip
25
01010-81025
Bolt
26
01643-31032
Washer
27
01010-81016
Bolt
28
01643-31032
Washer
29
04435-50810
Clip
30
04434-51610
Clip
31
04434-50812
Clip
32
421-00-H0260
Band
33
04435-51812
Clip
34
04435-51510
Clip
35
20J-S95-5970
Feeder, Boom
36
42W-09-H2880
Union
37
42W-09-H5720
Switch, Cycle
38
20K-09-41110
Cable, Cycle Switch
39
07005-01412
Seal Washer
40
20K-09-41130
Straight Connector
41
42W-09-H3330
Elbow
42
421-09-H3870
Nipple
43
42W-09-H3350
Cap
44
42W-09-H0P03
Hose, 5m
44
42W-09-H0P04
Hose, 10m
44
42W-09-H0P05
Hose, 15m
45
419-S95-HP14
Bushing
46
419-S95-HP13
Tube
