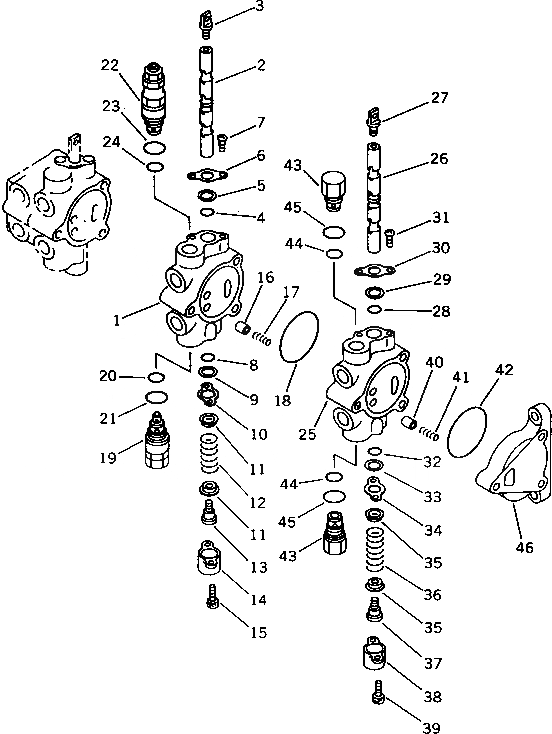

Запчасти Komatsu PW30-1 УПРАВЛЯЮЩ. КЛАПАН¤ ПЕРЕДН. ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21E-60-12220

VALVE ASS'Y,FRONT L.H.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6201 AND 6202.

|$2

KB21013-21517

SPOOL SECTION ASS'Y

1

HOUSING

2

SPOOL

3

KB21011-22253

HEAD

4

KB95111-01200

O-RING (K3)

5

KB21011-22151

WIPER (K3)

6

KB21011-21152

SEAL

7

KB91311-50102

SCREW

8

KB95111-01200

O-RING (K3)

9

KB21011-22151

WIPER (K3)

10

KB21011-21152

SEAL

11

KB21011-21251

SEAT,SPRING

12

KB21011-22451

SPRING

13

KB21011-22351

SCREW

14

KB21011-21851

CAP

15

KB92702-05121

BOLT

16

KB21011-21052

VALVE,CHECK

17

KB21011-22452

SPRING

18

KB95121-05500

O-RING (K3)

19

KB21013-20901

RELIEF VALVE ASS'Y

20

KB95113-01400

O-RING (K4)

21

KB95113-01800

O-RING (K4)

22

KB21013-20905

RELIEF VALVE ASS'Y

23

KB95113-01800

O-RING (K4)

24

KB95113-01400

O-RING (K4)

|$27

KB21013-21520

SPOOL SECTION ASS'Y

25

HOUSING

26

SPOOL

27

KB21011-22253

HEAD

28

KB95111-01200

O-RING (K3)

29

KB21011-22151

WIPER (K3)

30

KB21011-21152

SEAL

31

KB91311-50102

SCREW

32

KB95111-01200

O-RING (K3)

33

KB21011-22151

WIPER (K3)

34

KB21011-21152

SEAL

35

KB21011-21251

SEAT,SPRING

36

KB21011-22451

SPRING

37

KB21011-22351

SCREW

38

KB21011-21851

CAP

39

KB92702-05121

BOLT

40

KB21011-21052

VALVE,CHECK

41

KB21011-22452

SPRING

42

KB95121-05500

O-RING (K3)

43

KB21013-20903

SUCTION VALVE ASS'Y

44

KB95113-01400

O-RING (K4)

45

KB95113-01800

O-RING (K4)

46

KB21011-20351

OUTLET SECTION
