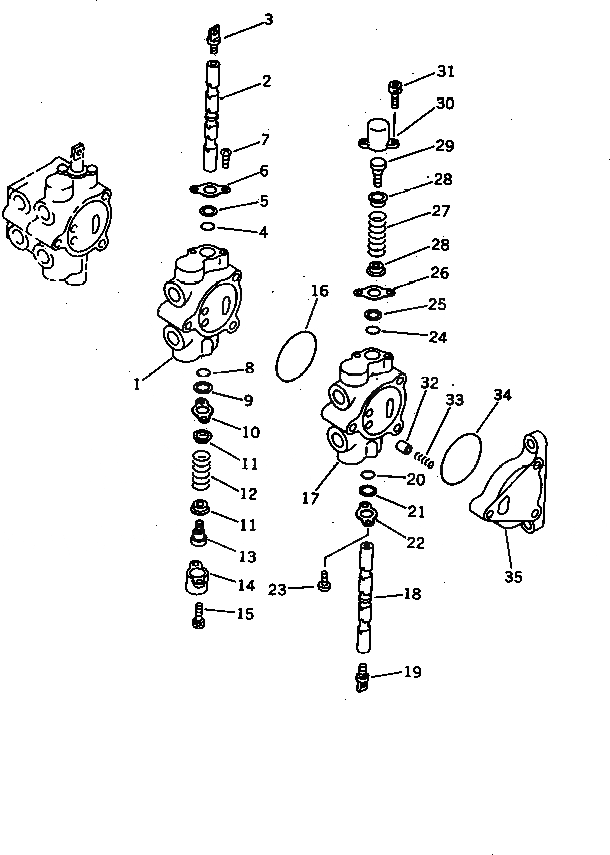

Запчасти Komatsu PW30-1 УПРАВЛЯЮЩ. КЛАПАН¤ ЗАДН. (/) (ДЛЯ I.S.O. PATTERN) (КРОМЕ ЯПОН.) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

21F-60-12250

VALVE ASS'Y,REAR

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6225 AND 6226.

|$2

KB21013-21516

SPOOL SECTION ASS'Y

1

HOUSING

2

SPOOL

3

KB21011-22253

HEAD

4

KB95111-01200

O-RING (K3)

5

KB21011-22151

WIPER (K3)

6

KB21011-21152

SEAL

7

KB91311-50102

SCREW

8

KB95111-01200

O-RING (K3)

9

KB21011-22151

WIPER (K3)

10

KB21011-21152

SEAL

11

KB21011-21251

SEAT,SPRING

12

KB21011-22457

SPRING

13

KB21011-22351

SCREW

14

KB21011-21851

CAP

15

KB92702-05121

BOLT

16

KB95151-05500

O-RING (K3)

|$19

KB21013-21444

SPOOL SECTION ASS'Y

17

HOUSING

18

SPOOL

19

KB21011-22253

HEAD

20

KB95111-01200

O-RING (K3)

21

KB21011-22151

WIPER (K3)

22

KB21011-21152

SEAL

23

KB91311-50102

SCREW

24

KB95111-01200

O-RING (K3)

25

KB21011-22151

WIPER (K3)

26

KB21011-21152

SEAL

27

KB21011-21251

SEAT,SPRING

28

KB21011-22451

SPRING

29

KB21011-22351

SCREW

30

KB21011-21851

CAP

31

KB92702-05121

BOLT

32

KB21011-21052

VALVE,CHECK

33

KB21011-22452

SPRING

34

KB95121-05500

O-RING (K3)

35

KB21011-20351

OUTLET SECTION
