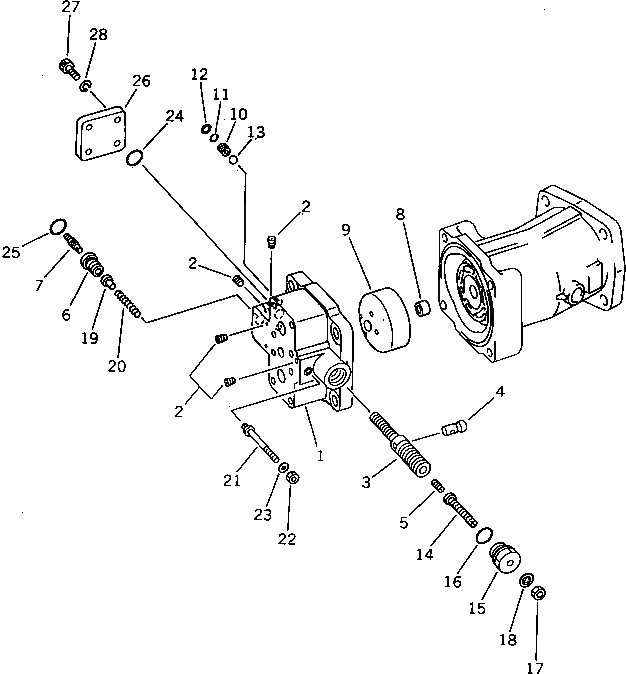

Запчасти Komatsu PW30-1 МОТОР ХОДА (МОТОР /) (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|$0

706-86-00601

MOTOR ASS'Y,TRAVEL

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6301 TO 6305.

|$2

706-86-40501

MOTOR ASS'Y

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6302 AND 6303.

|$4

706-86-00010

END COVER ASS'Y

|$5

706-86-00110

END COVER SUB A.

1

COVER,END

2

PLUG

3

PISTON

4

PIN

5

SCREW

6

SLEEVE

7

SPOOL

8

706-86-40071

BUSHING

9

706-86-40843

VALVE,PLATE

10

706-86-51160

PLUG

11

07000-11008

O-RING

12

07001-01008

RING,BACK-UP

13

04260-00793

BALL

14

706-86-50230

SCREW

15

706-86-50080

PLUG

16

07002-13334

O-RING

17

01580-11210

NUT

18

706-86-50050

WASHER

19

706-86-50121

SEAT,SPRING

20

706-86-50130

SPRING

21

706-86-50140

SCREW

22

01580-10605

NUT

23

706-86-50150

WASHER,SEAL

24

07000-13025

O-RING

25

07000-13022

O-RING

26

706-86-50062

COVER

27

706-86-50210

BOLT

28

01602-21236

WASHER,SPRING
