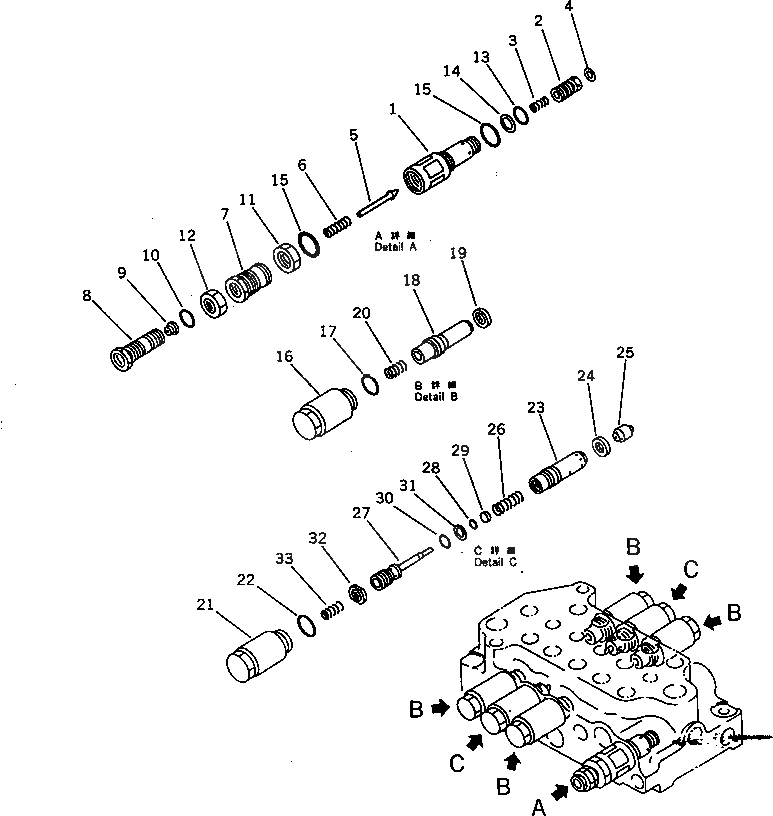

Запчасти Komatsu PW60-3 УПРАВЛЯЮЩ. КЛАПАН¤ ЛЕВ. (/) УПРАВЛ-Е РАБОЧИМ ОБОРУДОВАНИЕМ

|1

709-25-11503

VALVE ASS'Y,L.H.

|1

709-25-11502

VALVE ASS'Y,L.H.

|1

709-25-11501

VALVE ASS'Y,L.H.

|1

709-20-51302

RELIEF VALVE ASS'Y

1

SLEEVE

2

VALVE

3

709-20-51270

SPRING

4

700-20-51240

RING

5

700-80-61190

POPPET

6

709-20-51231

SPRING

7

709-20-51161

HOLDER

8

709-20-51170

PLUG

9

709-20-51142

RETAINER

10

07000-02012

O-RING

11

709-20-51150

NUT

12

01583-11811

NUT

13

700-22-11410

O-RING

14

700-80-64220

RING,BACK-UP

15

07002-02434

O-RING

|16

709-20-81100

VALVE ASS'Y,SUCTION

16

709-20-61110

SLEEVE

17

709-25-11390

O-RING

18

VALVE

19

SEAL

20

709-20-61160

SPRING

|21

709-20-61102

VALVE ASS'Y,SUCTION AND SAFETY

|21

709-20-61101

VALVE ASS'Y,SUCTION AND SAFETY

21

709-20-61110

SLEEVE

22

709-25-11390

O-RING

23

VALVE

24

SEAL

25

POPPET

26

SPRING

|26

SPRING

27

PISTON

28

O-RING

29

SEAL

30

O-RING

31

RING,BACK-UP

32

NUT

|32

NUT

33

709-20-61160

SPRING
