Запчасти Komatsu PW75-1 ЗАДН. МОСТ (WS) (/7) ХОДОВАЯ

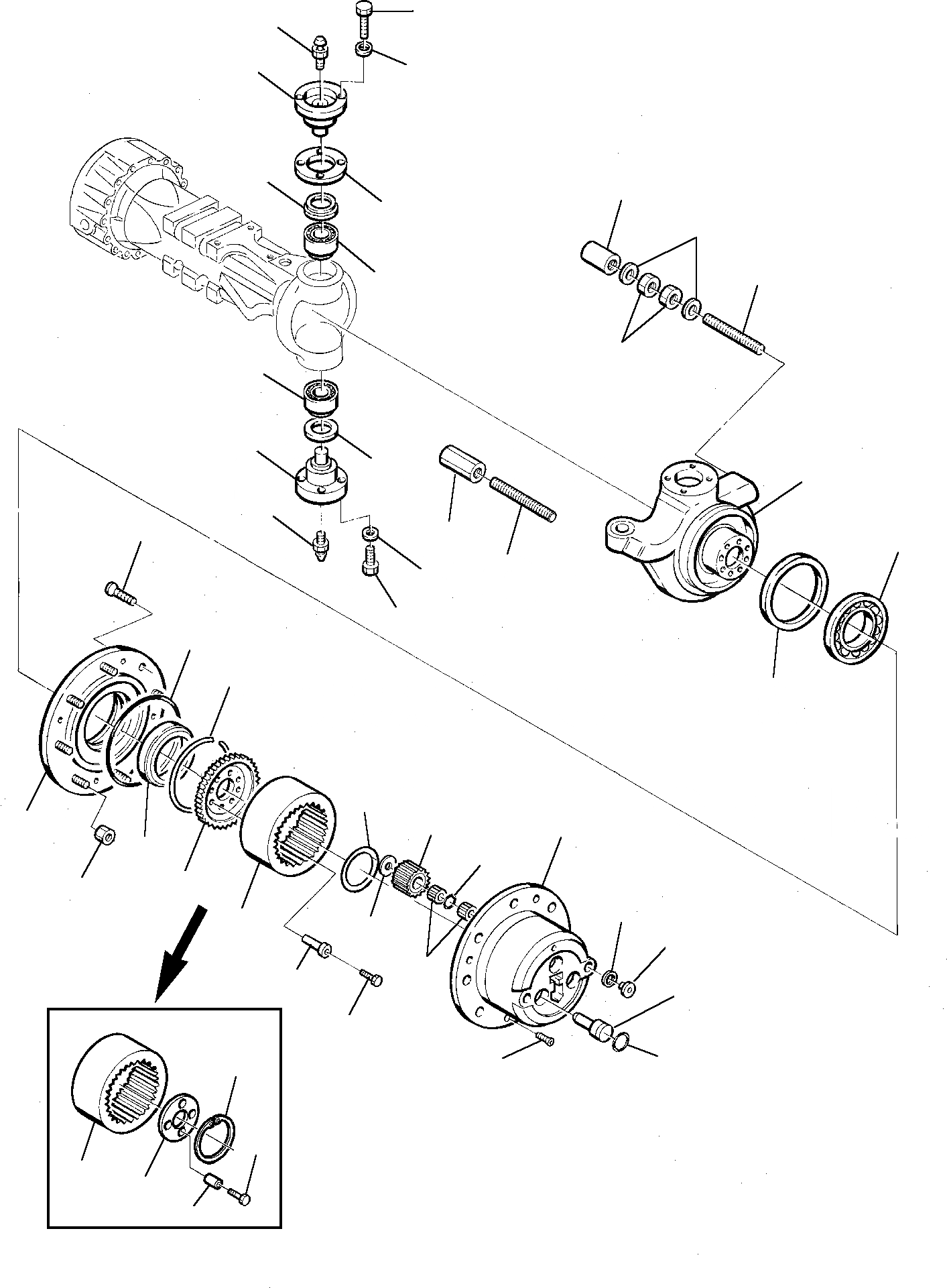

Схема запчастей Komatsu PW75-1 - ЗАДН. МОСТ (WS) (/7) ХОДОВАЯ
5
4
3
6
8
16
7
13
14
9
15
12
10
11
1
2
4
20
39
18
14
6
5
22
23
17
26
19
30
33
18
32
24
21
35
25
29
36
31
27
37
28
34
38
26
28
25
40
27
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

\0

22E-22-11010

REAR AXLE, ASSY.

1

22E-23-11750

HOUSING

2

22E-23-11760

HOUSING (PARTICULAR NOT SHOWN IN FIGURE)

3

22E-23-11190

PIN

4

22E-23-11550

FITTING

5

22E-23-11560

SCREW

6

22E-23-11570

WASHER

7

22E-23-11580

SHIM, 0.150 mm

7

22E-23-11590

SHIM, 0.200 mm

7

22E-23-11610

SHIM, 0.500 mm

8

22E-23-11620

RING, SNAP

9

22E-23-11630

BEARING

10

22E-23-11920

PIN

11

22E-23-11930

RING, SNAP

12

22E-23-11940

JOINT

13

22E-23-11730

NUT

14

22E-23-12330

SCREW

14

22E-23-12331

SCREW

15

22E-23-12350

WASHER

16

22E-23-12360

STOPPER

17

22E-23-11770

RING, SNAP

\17

BEARING, ASSY.

18

22E-23-12340

BEARING, OUTER

18

HU5723027

BEARING, INNER

19

22E-23-11880

HUB

20

21D-23-11820

STEERING COLUMN

21

21D-23-11850

NUT

22

21D-23-11840

O-RING

23

22E-23-11790

CIRCLIP

24

22E-23-11810

SUPPORT

25

22E-23-11820

GEAR, RING

26

21D-23-11930

RING, SNAP

27

22E-23-11910

SLEEVE

27

22E-23-11911

SLEEVE

28

22E-23-11870

BOLT

28

22E-23-11871

BOLT

29

21D-23-12140

SHIM

30

22E-23-11850

PLANET WHEEL

31

21D-23-12120

BEARING

32

21D-23-12370

SPACER

33

21D-23-11950

CASE

34

21D-23-12110

SCREW

35

21D-23-11960

WASHER

36

21D-23-11970

PLUG

37

21D-23-11990

PIN

38

21D-23-11980

O-RING

39

22E-23-12440

SPACER

40

22E-23-12450

PLATE
