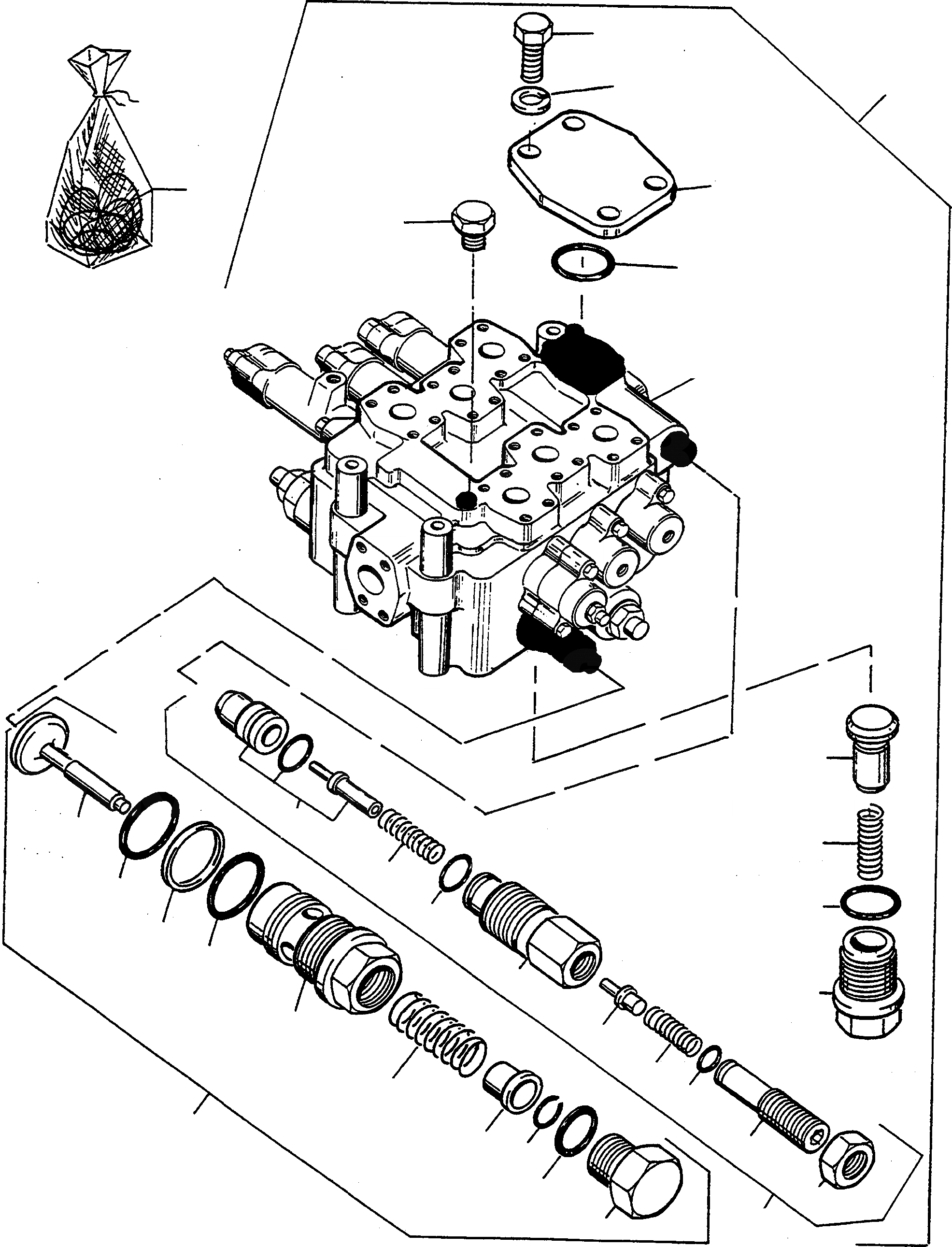

Запчасти Komatsu 50E УПРАВЛЯЮЩ. КЛАПАН, THREE WAYS ГИДРАВЛИКА

1

4215649M91

CONTROL VALVE

DeutschDesc: STEUERVENTIL

1шт.

1A

HOUSING

EnglischBem: ORDER 4215 649 M91

1шт.

1B

4913131M91

VALVE

DeutschDesc: VENTIL

1шт.

1C

4913132M1

PISTON

EnglischBem: NOTE: Pos. (1C) included in Pos. (1) and (1B) Kit

1шт.

2

4908446M1

ADJUSTING SCREW

EnglischBem: NOTE: Pos. (2) included in Pos. (1) and (1B) Kit

1шт.

3

4913133M1

VALVE SEAT

EnglischBem: NOTE: Pos. (3) included in Pos. (1) and (1B) Kit

1шт.

4

4908445M1

POPPET

EnglischBem: NOTE: Pos. (4) included in Pos. (1) and (1B) Kit

1шт.

5

4913134M1

SPRING

EnglischBem: NOTE: Pos. (5) included in Pos. (1) and (1B) Kit

1шт.

6

2923210M1

NUT

EnglischBem: NOTE: Pos. (6) included in Pos. (1) and (1B) Kit

1шт.

7

4913135M1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91 NOTE: Pos. (7) included in Pos.

1шт.

8

4913136M1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91 NOTE: Pos. (8) included in Pos.

1шт.

9

2951815M1

SPRING

EnglischBem: NOTE: Pos. (9) included in Pos. (1) and (1B) Kit

1шт.

10

4913137M1

CAP

DeutschDesc: KAPPE

3шт.

11

4913138M1

POPPET

DeutschDesc: VENTILKEGEL

3шт.

12

4913139M1

SPRING

DeutschDesc: FEDER

3шт.

13

4913140M1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91

3шт.

14

4913141M1

PLUG

DeutschDesc: VERSCHLUSSSTOPFEN

1шт.

15

3076898M1

BLANK COVER

DeutschDesc: BLINDDECKEL

1шт.

16

3007014X1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91

1шт.

17

2951798M1

SCREW

DeutschDesc: SCHRAUBE

4шт.

18

3031860M1

SPRING WASHER

DeutschDesc: FEDERRING

4шт.

19

4913143M91

VALVE

DeutschDesc: VENTIL

1шт.

20

4913144M1

SPRING SEAT

EnglischBem: NOTE: Pos. (20) included in Pos. (1) and (19) Kit

1шт.

21

4913145M1

CAP

EnglischBem: NOTE: Pos. (21) included in Pos. (1) and (19) Kit

1шт.

22

HOUSING

EnglischBem: ORDER 4913 143 M91 NOTE: Pos. (22) included in Pos. (1) and (19)

1шт.

23

4913146M1

POPPET

EnglischBem: NOTE: Pos. (23) included in Pos. (1) and (19) Kit

1шт.

24

4913147M1

SPRING

EnglischBem: NOTE: Pos. (24) included in Pos. (1) and (19) Kit

1шт.

25

4913148M1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91 NOTE: Pos. (25) included in Pos

1шт.

26

4913149M1

RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91 NOTE: Pos. (26) included in Pos

1шт.

27

4913150M1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91 NOTE: Pos. (27) included in Pos

1шт.

28

4913151M1

O-RING

EnglischBem: BELONGS TO SEAL KIT 4913 142 M91 NOTE: Pos. (28) included in Pos

1шт.

29

4913152M1

CIRCLIP

EnglischBem: NOTE: Pos. (29) included in Pos. (1) and (19) Kit

1шт.

30

4913142M91

GASKET KIT

DeutschDesc: DICHTUNGSSATZ

1шт.
