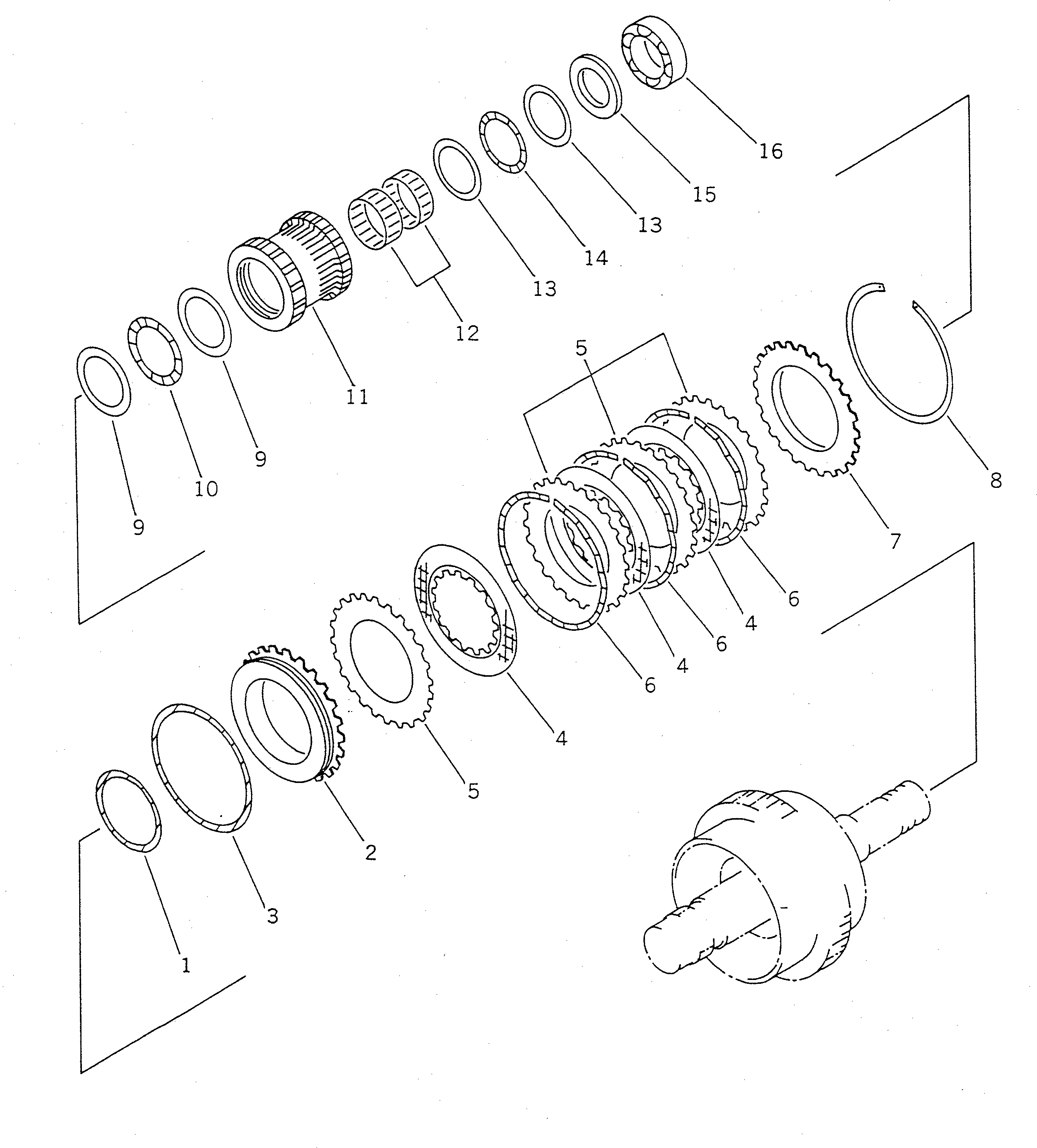

Запчасти Komatsu WA150-1 ТРАНСМИССИЯ (3 МУФТА)(№-) ТРАНСМИССИЯ

|1

417-15-11003

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|1

417-15-11002

TRANSMISSION ASS'Y

SN: 20001-29999

1шт.

|$$3

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2111 TO 2171.

-1шт.

|1

417-15-13103

CLUTCH ASS'Y,2ND AND 3RD

SN: .-UP

1шт.

|1

0

CLUTCH ASS'Y,2ND AND 3RD

SN: 20001-.

1шт.

|$$6

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.2134A AND 2135A.

-1шт.

1

419-15-12210

RING,SEAL (K1)

SN: 10001-UP

1шт.

2

419-15-13191

PISTON

SN: 10001-UP

1шт.

3

419-15-12580

RING,SEAL (K1)

SN: 10001-UP

1шт.

4

419-15-12290

DISC

SN: 10001-UP

3шт.

5

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

4шт.

6

419-15-12133

SPRING,WAVE

SN: 20001-UP

3шт.

7

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

8

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

9

419-15-12680

WASHER,THRUST

SN: 10001-UP

2шт.

10

419-15-12670

BEARING,THRUST

SN: 10001-UP

1шт.

11

417-15-13231

GEAR¤ 21 TEETH,3RD

SN: 30047-UP

1шт.

|11

0

GEAR,3RD

SN: 10001-30046

1шт.

12

419-15-12270

BEARING

SN: 10001-UP

2шт.

13

419-15-12240

WASHER,THRUST

SN: 10001-UP

2шт.

14

419-15-12250

BEARING,THRUST

SN: 10001-UP

1шт.

15

419-15-12330

SPACER

SN: 10001-UP

1шт.

16

06030-06210

BEARING

SN: 10001-UP

1шт.
