|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
|1
714-11-10003
TRANSMISSION ASS'Y
SN: (68569)-UP
1шт.
|1
714-11-10002
TRANSMISSION ASS'Y
SN: (67311)-(68568)
1шт.
|1
714-11-10001
TRANSMISSION ASS'Y
SN: 63151-(67310)
1шт.
|1
714-11-10000
TRANSMISSION ASS'Y
SN: 63001-63150
1шт.
|1
714-11-10043
TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)
SN: (68573)-UP
1шт.
|1
714-11-10042
TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)
SN: (67408)-(68572)
1шт.
|1
714-11-10041
TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)
SN: 63151-(67407)
1шт.
|1
714-11-10040
TRANSMISSION ASS'Y,(FOR EMERGENCY STEERING)
SN: 63001-63150
1шт.
|$$10

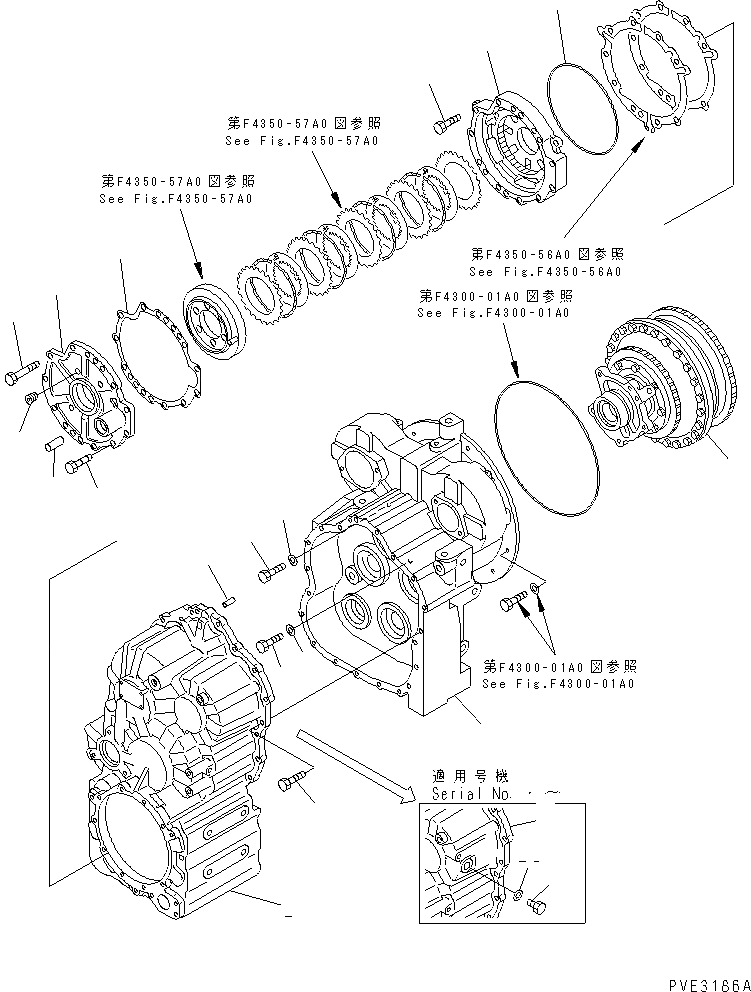

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-67A0.
-1шт.
1
711-58-00300
TORQUE CONVERTER A.
SN: 63001-UP
1шт.
2
714-11-11212
CASE,FRONT
SN: (67408)-UP
1шт.
|2
714-11-11211
CASE,FRONT
SN: 63001-(67407)
1шт.
2A
419-15-18220
PLUG
SN: (67408)-UP
1шт.
2B
07005-02216
GASKET
SN: (67408)-UP
1шт.
3
714-11-11121
CASE,TORQUE CONVERTER
SN: 63001-UP
1шт.
4
04020-01228
PIN,DOWEL
SN: 63001-UP
2шт.
5
01010-81240
BOLT
SN: (67818)-UP
19шт.
|5
01010-81240
BOLT
SN: 63001-(67817)
20шт.
6
01010-81280
BOLT
SN: 63001-UP
3шт.
7
01010-81235
BOLT
SN: 63001-UP
2шт.
8
01643-31232
WASHER
SN: 63001-UP
5шт.
9
714-11-18311
HOUSING
SN: 63001-UP
1шт.
10
714-11-18321
RETAINER
SN: 63001-UP
1шт.
11
714-11-18691
GASKET (K1)
SN: 63001-UP
1шт.
12
01010-81235
BOLT
SN: 63001-UP
3шт.
13
01010-81275
BOLT
SN: 63001-UP
9шт.
14
01010-81235
BOLT
SN: 63001-UP
2шт.
15
04020-01228
PIN,DOWEL
SN: 63001-UP
2шт.
16
07000-05260
O-RING (K1)
SN: 63001-UP
1шт.
17
07043-70211
PLUG
SN: 63001-UP
3шт.
18
419-15-18131
LIQUID GASKET,(NOT SHOWN) (K1)
SN: 63001-UP
1шт.
