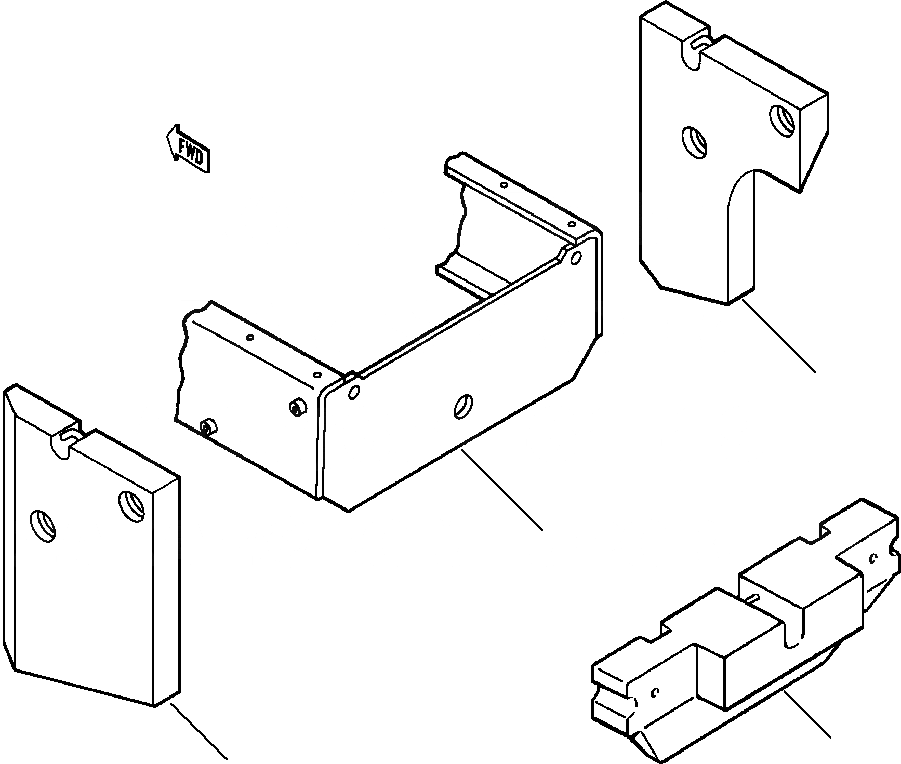

Запчасти Komatsu WA180-1LC ДОПОЛН. ПРОТИВОВЕС РАМА

1

417-974-1212

WEIGHT, COUNTER - LH

1шт.

|$1

01010-32065

BOLT, MOUNT SIDE WEIGHTS

2шт.

|$2

01643-32060

WASHER

2шт.

1

417-T80-A070

WEIGHT, COUNTER - LH

1шт.

|$4

01011-62020

BOLT, MOUNT SIDE WEIGHTS

2шт.

|$5

01643-32060

WASHER

2шт.

2

417-974-1231

WEIGHT, COUNTER - RH

1шт.

|$7

01010-32065

BOLT, MOUNT SIDE WEIGHTS

2шт.

|$8

01643-32060

WASHER

2шт.

2

417-T80-A080

WEIGHT, COUNTER - RH

1шт.

|$10

01011-62020

BOLT, MOUNT SIDE WEIGHTS

2шт.

|$11

01643-32060

WASHER

2шт.

3

FRAME, REAR (SEE PG 05-006)

-29шт.

|$13

FRAME, REAR (SEE PG 05-006)

-29шт.

4

417-46-13132

WEIGHT, COUNTER - REAR

1шт.

|$15

01011-62050

BOLT, MOUNT REAR WEIGHT

2шт.

|$16

01643-32060

WASHER

4шт.

|$17

01580-02016

NUT

2шт.

|$24

-1шт.

|$19

F1 - USED ON MACHINES WITH STANDARD FRAME MODIFIED

-1шт.

|$20

FOR ADDITIONAL COUNTERWEIGHTS.

-1шт.

|$25

-1шт.

|$22

F2 - USED ON MACHINES WITH STANDARD FRAME MODIFIED

-1шт.

|$23

FOR PARALLEL TOOL CARRIER.

-1шт.
