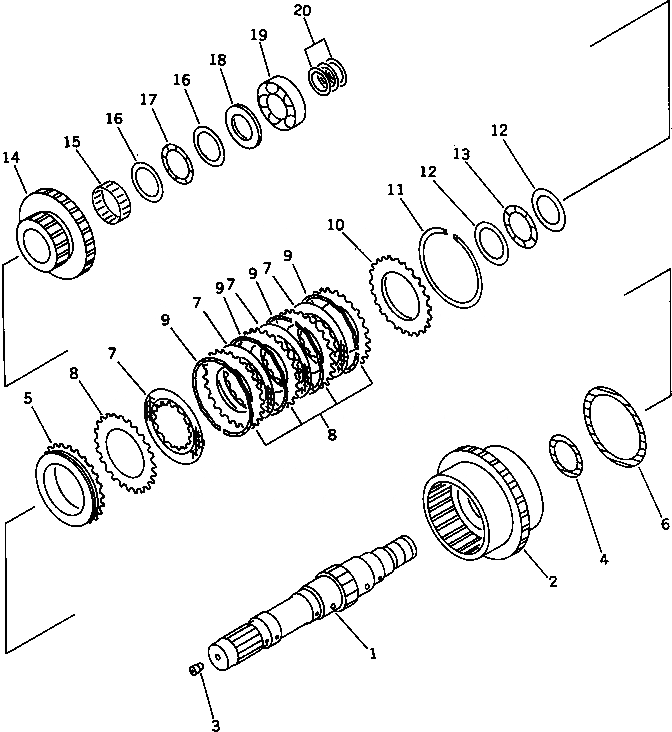

Запчасти Komatsu WA200-1 3 МУФТА(№-) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

418-15-11021

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$1

418-15-11302

CLUTCH ASS'Y,1ST AND 3RD

SN: ..-UP

1шт.

|$2

0

CLUTCH ASS'Y,1ST AND 3RD

SN: 20001-..

1шт.

|$3

418-15-11312

SHAFT ASS'Y,HOUSING

SN: ..-UP

1шт.

|$4

0

SHAFT ASS'Y,HOUSING

SN: 11146-..

1шт.

1

0

SHAFT,1ST AND 3RD

SN: ..-UP

1шт.

1

0

SHAFT,1ST AND 3RD

SN: 20001-..

1шт.

2

0

HOUSING,1ST AND 3RD

SN: ..-UP

1шт.

2

0

HOUSING,1ST AND 3RD

SN: 10001-..

1шт.

3

419-15-12750

ORIFICE

SN: 10001-UP

1шт.

4

419-15-12210

RING,SEAL (K1)

SN: 10001-UP

1шт.

5

419-15-13191

PISTON

SN: 10001-UP

1шт.

6

419-15-12580

RING,SEAL (K1)

SN: 10001-UP

1шт.

7

419-15-12290

DISC

SN: 10001-UP

4шт.

8

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

5шт.

9

56D-15-12710

SPRING,WAVE

SN: 30975-UP

4шт.

9

0

SPRING,WAVE

SN: 20001-30974

4шт.

10

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

11

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

12

419-15-12680

WASHER,THRUST

SN: 10001-UP

2шт.

13

419-15-12670

BEARING,THRUST

SN: 10001-UP

1шт.

14

418-15-11331

GEAR,3RD

SN: .-UP

1шт.

14

0

GEAR,3RD

SN: 10001-.

1шт.

15

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

1шт.

16

419-15-12650

WASHER,THRUST

SN: 10001-UP

2шт.

17

419-15-12640

BEARING,THRUST

SN: 10001-UP

1шт.

18

419-15-12610

SPACER

SN: 10001-UP

1шт.

19

06030-06211

BEARING

SN: 10001-UP

1шт.

20

419-15-12121

RING,SEAL (K1)

SN: 20001-UP

3шт.
