|1
416-923-2020
CAB ASS'Y,(AM/FM RADIO)
SN: 64001-UP
1шт.
|1
416-923-2040
CAB ASS'Y,(AM/FM RADIO¤ HEAT WIRE F.C.)
SN: 64001-UP
1шт.
|1
416-923-2060
CAB ASS'Y,(AM/FM RADIO¤ HEAT WIRE)
SN: 64001-UP
1шт.
|1
419-923-2080
CAB ASS'Y,(AM/FM RADIO¤ LAMINATED GLASS)
SN: 64001-UP
1шт.
|$$5

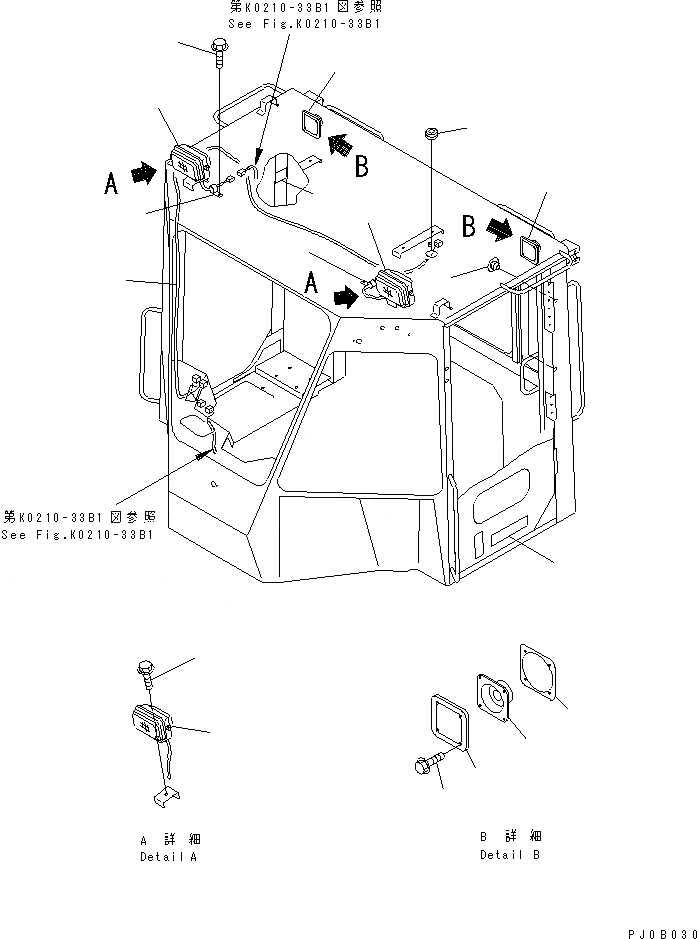

THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.K0210-31B1 TO K0210-45B2.
-1шт.
1
09690-B0280
PLATE¤ MARK,KOMATSU
SN: 64001-UP
2шт.
2
421-06-23360
LAMP ASS'Y
SN: 64001-UP
2шт.
|2
421-06-23320
LENS
SN: 64001-UP
1шт.
|2
421-06-23330
BULB¤ 70W
SN: 64001-UP
1шт.
3
01435-01020
BOLT
SN: 64001-UP
2шт.
4
09415-01610
CAP
SN: 64001-UP
1шт.
5
08053-01510
CLIP
SN: 64001-UP
2шт.
6
01435-01020
BOLT
SN: 64001-UP
2шт.
7
418-923-2890
PLATE¤ INSTRUCTION,WIPER BLADE
SN: 64001-UP
1шт.
8
418-967-2140
SPEAKER
SN: 64001-UP
2шт.
9
418-967-2150
COVER,SPEAKER
SN: 64001-UP
2шт.
10
418-967-2230
PLATE
SN: 64001-UP
1шт.
11
01220-40416
SCREW
SN: 64001-UP
8шт.
12
416-958-2120
WIRING HARNESS,(WITH XENON BEACON LAMP)
SN: 64001-UP
1шт.
13
421-54-22990
PLUG
SN: 64001-UP
2шт.
