|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
|1
714-13-10012
TORQFLOW ASS'Y,(FOR EMERGENCY STEERING)
SN: 63473-UP
1шт.
|1
714-13-10011
TORQFLOW ASS'Y,(FOR EMERGENCY STEERING)
SN: 63001-63472
1шт.
|1
714-13-10210
TORQFLOW ASS'Y,(TACHOGRAPH & KAISOU)
SN: 64001-UP
1шт.
|$$5
THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A1 TO F4350-70A1.
-1шт.
|1
714-11-15030
CONTROL VALVE ASS'Y
SN: (77721)-UP
1шт.
|$$7
THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A1 TO F4350-63A1A.
-1шт.
|1
714-11-16200
VALVE ASS'Y,LOWER
SN: (77721)-UP
1шт.
|$$9

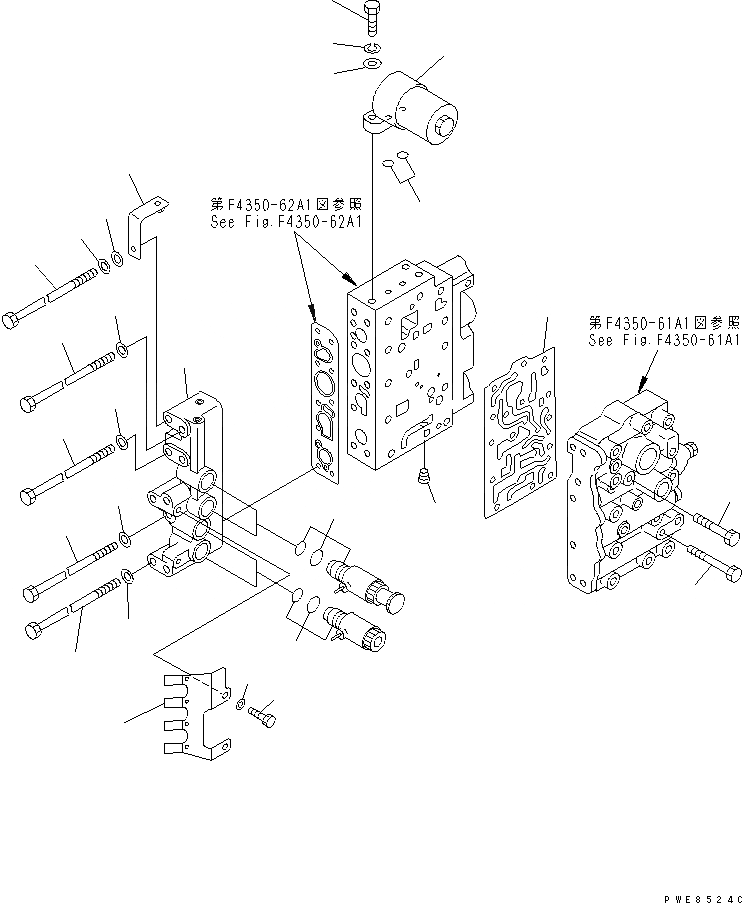

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-62A1 AND F4350-63A1A .
-1шт.
|1
714-11-16900
VALVE ASS'Y,SOLENOID
SN: (77721)-UP
1шт.
1
714-11-16800
BODY ASS'Y,SOLENOID
SN: (77721)-UP
1шт.
2
714-11-16830
SOLENOID VALVE
SN: (77721)-UP
2шт.
3
714-11-16840
SOLENOID VALVE
SN: (77721)-UP
2шт.
4
714-11-16811
BRACKET
SN: (77721)-UP
1шт.
5
01010-80816
BOLT
SN: (77721)-UP
2шт.
6
01643-30823
WASHER
SN: (77721)-UP
2шт.
7
01010-81085
BOLT
SN: (77721)-UP
1шт.
8
01011-81015
BOLT
SN: (77721)-UP
1шт.
9
01011-81015
BOLT
SN: (77721)-UP
4шт.
10
01010-81085
BOLT
SN: (77721)-UP
2шт.
11
01010-81085
BOLT
SN: (77721)-UP
1шт.
12
01643-31032
WASHER
SN: (77721)-UP
10шт.
13
195-30-34260
WASHER
SN: (77721)-UP
1шт.
14
419-06-12840
PLATE
SN: 63001-UP
1шт.
15
07043-70108
PLUG
SN: 63001-UP
1шт.
16
419-15-16811
GASKET (K2)
SN: 63001-UP
1шт.
17
01010-80860
BOLT
SN: 63001-UP
1шт.
18
01010-80875
BOLT
SN: 63001-UP
1шт.
19
419-15-16660
FILTER ASS'Y
SN: 63001-UP
1шт.
20
07000-02014
O-RING (K2)
SN: 63001-UP
2шт.
21
01010-81035
BOLT
SN: 63001-UP
2шт.
22
01602-01030
WASHER,SPRING
SN: 63001-UP
2шт.
23
01642-21016
WASHER
SN: 63001-UP
2шт.
