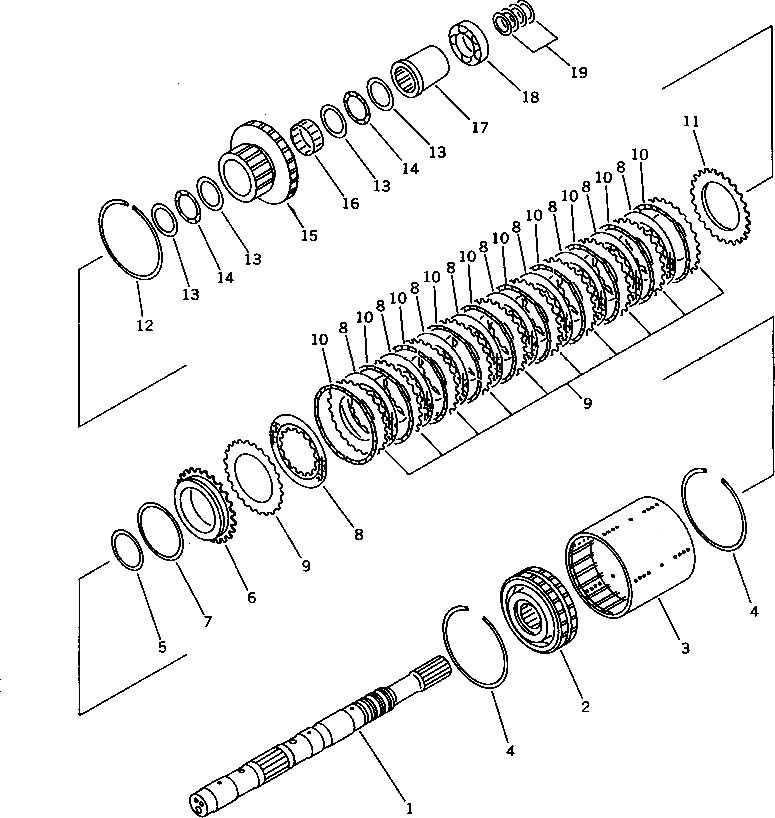

Запчасти Komatsu WA300-1 ПЕРЕД. МУФТА(№-) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11021

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$2

419-15-12002

CLUTCH ASS'Y,FORWARD AND REVERSE

SN: 20001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2231A AND 2232A.

-1шт.

|$4

419-15-12012

SHAFT ASS'Y

SN: 20001-UP

1шт.

1

0

SHAFT

SN: 20001-UP

1шт.

2

0

CYLINDER

SN: 20001-UP

1шт.

3

419-15-12321

HOUSING

SN: 20001-UP

1шт.

4

419-15-12140

RING,SNAP

SN: 20001-UP

2шт.

5

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

6

419-15-12221

PISTON

SN: 20001-UP

1шт.

7

419-15-12190

RING,SEAL

SN: 10001-UP

1шт.

8

419-15-12290

DISC

SN: 10001-UP

10шт.

9

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

11шт.

10

56D-15-12710

SPRING,WAVE

SN: .-UP

10шт.

10

0

SPRING,WAVE

SN: 20001-.

10шт.

11

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

12

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

13

419-15-12240

WASHER,THRUST

SN: 10001-UP

4шт.

14

419-15-12250

BEARING,THRUST

SN: 10001-UP

2шт.

15

419-15-12151

GEAR,FORWARD

SN: 10001-UP

1шт.

16

419-15-12270

BEARING,NEEDLE

SN: 10001-UP

1шт.

17

419-15-12180

COLLAR

SN: 10001-UP

1шт.

18

06030-06210

BEARING

SN: 10001-UP

1шт.

19

419-15-12121

RING,SEAL

SN: 20001-UP

4шт.
