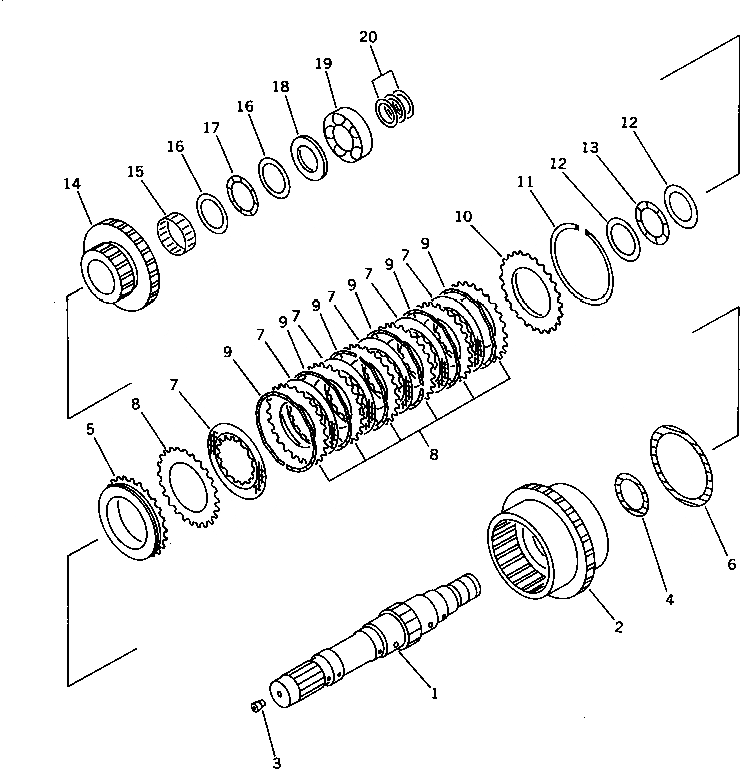

Запчасти Komatsu WA300-1 3 МУФТА(№-) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11021

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$2

419-15-12402

CLUTCH ASS'Y,1ST AND 3RD

SN: 20001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2233A AND 2234A.

-1шт.

|$4

419-15-12412

HOUSING ASS'Y

SN: 10001-UP

1шт.

1

0

SHAFT

SN: 20001-UP

1шт.

2

0

HOUSING

SN: 10001-UP

1шт.

3

0

ORIFICE

SN: 10001-UP

1шт.

4

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

5

419-15-13191

PISTON

SN: 10152-UP

1шт.

6

419-15-12580

RING,SEAL

SN: 10001-UP

1шт.

7

419-15-12290

DISC

SN: 10001-UP

6шт.

8

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

7шт.

9

56D-15-12710

SPRING,WAVE

SN: .-UP

6шт.

9

0

SPRING,WAVE

SN: 20001-.

6шт.

10

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

11

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

12

419-15-12680

WASHER,THRUST

SN: 10001-UP

2шт.

13

419-15-12670

BEARING,THRUST

SN: 10001-UP

1шт.

14

419-15-12520

GEAR,3RD

SN: 10001-UP

1шт.

15

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

1шт.

16

419-15-12650

WASHER,THRUST

SN: 10001-UP

2шт.

17

419-15-12640

BEARING,THRUST

SN: 10001-UP

1шт.

18

419-15-12610

SPACER

SN: 10001-UP

1шт.

19

06030-06211

BEARING

SN: 10001-UP

1шт.

20

419-15-12121

RING,SEAL

SN: 20001-UP

3шт.
