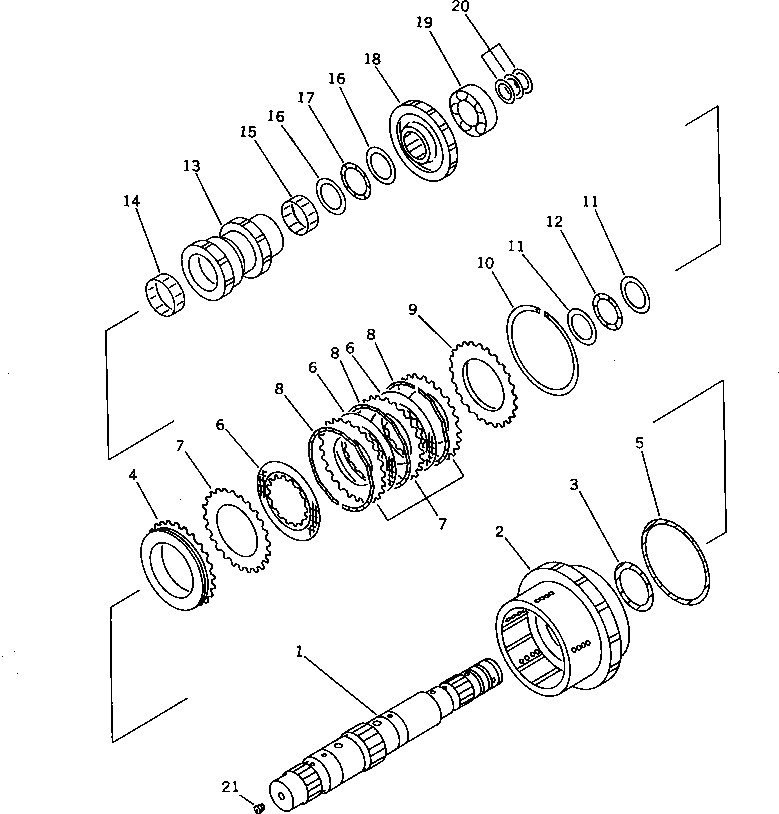

Запчасти Komatsu WA300-1 4 МУФТА(№-) ГИДРОТРАНСФОРМАТОР И ТРАНСМИССИЯ

|$0

419-15-11021

TRANSMISSION ASS'Y

SN: 20001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2211 TO 2271.

-1шт.

|$2

419-15-13001

CLUTCH ASS'Y,2ND AND 4TH

SN: 20001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2235A AND 2236A.

-1шт.

|$4

418-15-11140

SHAFT ASS'Y

SN: 20001-UP

1шт.

1

0

SHAFT

SN: 20001-UP

1шт.

2

0

HOUSING

SN: 20001-UP

1шт.

3

419-15-12210

RING,SEAL

SN: 10001-UP

1шт.

4

419-15-13191

PISTON

SN: 10152-UP

1шт.

5

419-15-12580

RING,SEAL

SN: 10001-UP

1шт.

6

419-15-12290

DISC

SN: 10001-UP

3шт.

7

419-15-12310

PLATE

SN: 10001-UP

4шт.

8

56D-15-12710

SPRING,WAVE

SN: .-UP

3шт.

8

0

SPRING

SN: 20001-.

3шт.

9

419-15-12280

PLATE

SN: 10001-UP

1шт.

10

419-15-12140

RING

SN: 10001-UP

1шт.

11

419-15-12680

WASHER

SN: 10001-UP

2шт.

12

419-15-12670

BEARING

SN: 10001-UP

1шт.

13

419-15-13221

GEAR,4TH

SN: 10001-UP

1шт.

14

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

1шт.

15

419-15-12270

BEARING,NEEDLE

SN: 10001-UP

1шт.

16

419-15-12240

WASHER,THRUST

SN: 10001-UP

2шт.

17

419-15-12250

BEARING,THRUST

SN: 10001-UP

1шт.

18

419-15-13240

GEAR

SN: 10001-UP

1шт.

19

06030-06210

BEARING

SN: 10001-UP

1шт.

20

419-15-12121

RING,SEAL

SN: 20001-UP

3шт.

21

419-15-12750

ORIFICE

SN: 10001-UP

1шт.
