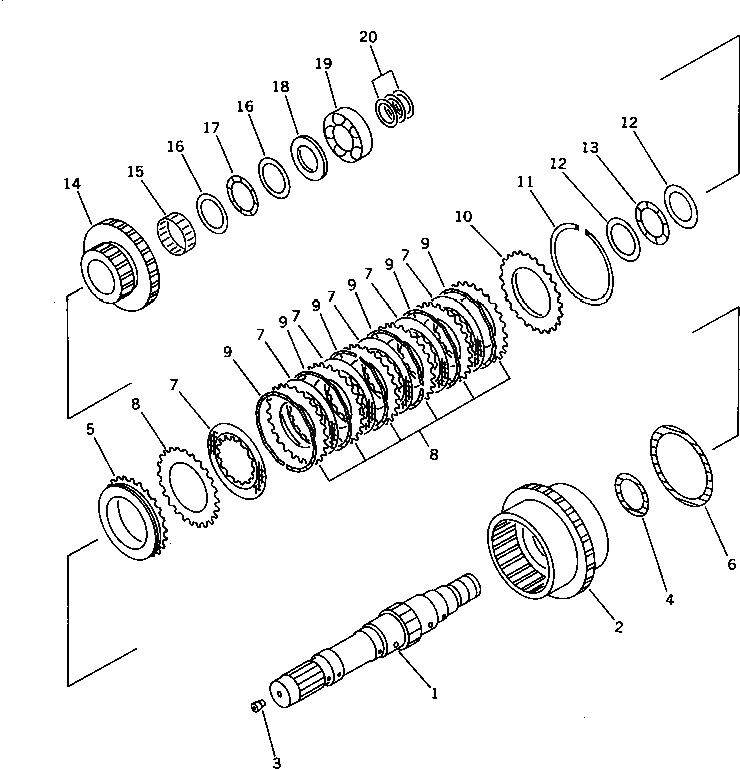

Запчасти Komatsu WA300-1 3 МУФТА(№-) ТРАНСМИССИЯ

|1

419-15-11002

TRANSMISSION ASS'Y

SN: 30001-UP

1шт.

|1

419-15-11001

TRANSMISSION ASS'Y

SN: 20001-29999

1шт.

|1

419-15-12403

CLUTCH ASS'Y,1ST AND 3RD

SN: 20001-UP

1шт.

|1

0

CLUTCH ASS'Y,1ST AND 3RD

SN: (20001-20039)

1шт.

|1

419-15-12414

HOUSING ASS'Y

SN: 30001-UP

1шт.

|1

0

HOUSING ASS'Y

SN: 10001-29999

1шт.

|1

0

HOUSING ASS'Y

SN: (10001-20039)

1шт.

1

0

SHAFT

SN: 20040-UP

1шт.

|1

0

SHAFT

SN: 20001-20039

1шт.

2

0

HOUSING

SN: 30001-UP

1шт.

|2

0

HOUSING

SN: 20040-29999

1шт.

|2

0

HOUSING

SN: 10001-20039

1шт.

3

0

ORIFICE

SN: 10001-UP

1шт.

4

419-15-12210

RING,SEAL (KIT)

SN: 10001-UP

1шт.

5

419-15-13191

PISTON

SN: 20001-UP

1шт.

6

419-15-12580

RING,SEAL (KIT)

SN: 10001-UP

1шт.

7

419-15-12290

DISC

SN: 10001-UP

6шт.

8

419-15-12310

PLATE,SEPARATE

SN: 10001-UP

7шт.

9

419-15-12133

SPRING,WAVE

SN: 20001-UP

6шт.

10

419-15-12280

PLATE,END

SN: 10001-UP

1шт.

11

419-15-12140

RING,SNAP

SN: 10001-UP

1шт.

12

419-15-12680

WASHER,THRUST

SN: 10001-UP

2шт.

13

419-15-12670

BEARING,THRUST

SN: 10001-UP

1шт.

14

419-15-12521

GEAR,3RD

SN: 20001-UP

1шт.

15

419-15-12660

BEARING,NEEDLE

SN: 10001-UP

1шт.

16

419-15-12650

WASHER,THRUST

SN: 10001-UP

2шт.

17

419-15-12640

BEARING,THRUST

SN: 10001-UP

1шт.

18

419-15-12610

SPACER

SN: 10001-UP

1шт.

19

06030-06211

BEARING

SN: 10001-UP

1шт.

20

419-15-12121

RING,SEAL (KIT)

SN: 20001-UP

3шт.
