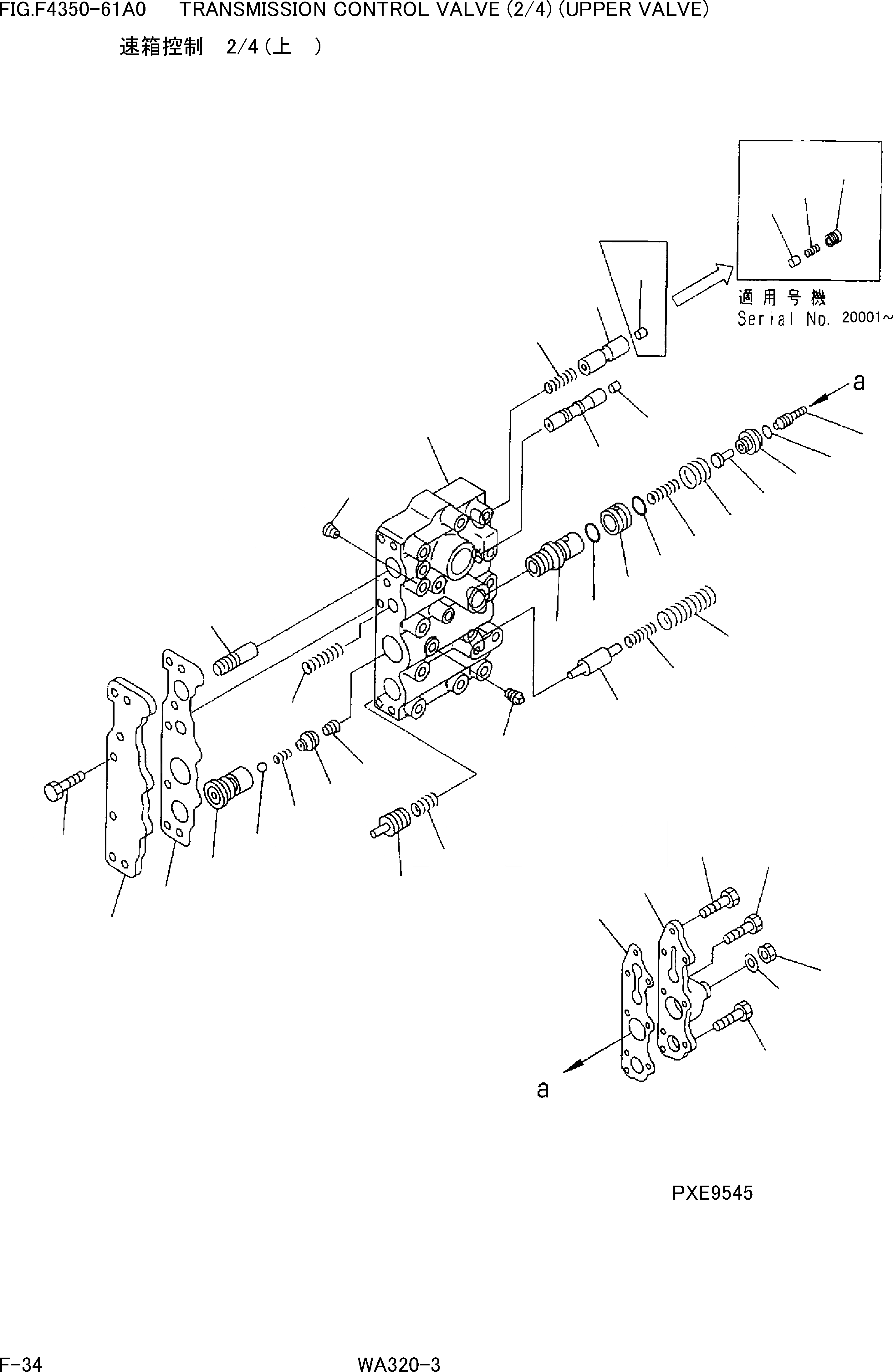

Запчасти Komatsu WA320-3 КЛАПАН УПРАВЛЕНИЯ ТРАНСМИССИЕЙ(/)(ВЕРХНИЙ КЛАПАН) F[ТРАНСМИССИЯ]

|$0

SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.

-1шт.

|$1

714-16-20001

TRANSMISSION ASS'Y THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-68A0

Field_1: 15001-

1шт.

|$2

714-16-25030

CONTROL VALVE ASS'Y THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-61A0 TO F4350-63A0A

Field_1: 15001-

1шт.

|$3

714-16-25100

VALVE ASS'Y,UPPER

Field_1: 15001-

1шт.

1

419-15-15711

BODY,UPPER

Field_1: 15001-

1шт.

2

419-15-15720

COVER

Field_1: 15001-

1шт.

3

419-15-15730

COVER

Field_1: 15001-

1шт.

4

419-15-15741

GASKET(K2)

Field_1: 15001-

1шт.

5

419-15-15751

GASKET(K2)

Field_1: 15001-

1шт.

6

419-15-15760

VALVE,PILOT

Field_1: 15001-

1шт.

7

714-16-25320

VALVE,MAIN

Field_1: 15001-

1шт.

8

714-16-25360

VALVE,PRIORITY

Field_1: 15001-

1шт.

9

419-15-15790

VALVE,ACCUMULATOR

Field_1: 15001-

1шт.

10

419-15-15810

VALVE,MODULATE

Field_1: 15001-

1шт.

11

714-11-15350

PISTON,LOAD

Field_1: 15001-

1шт.

12

714-11-15330

PISTON,LOAD

Field_1: 15001-

1шт.

12A

714-11-15340

PISTON,LOAD

Field_1: 15001-

1шт.

12B

714-11-16940

SPRING

Field_1: 15001-

1шт.

13

419-15-15840

VALVE,QUICK RETURN

Field_1: 15001-

1шт.

14

419-15-15850

PLUG,VALVE

Field_1: 15001-

1шт.

15

419-15-15860

SLEEVE,MODULATE

Field_1: 15001-

1шт.

16

419-15-15870

SHAFT,ACCUMULATOR

Field_1: 15001-

1шт.

17

714-11-16930

SPRING,MAIN

Field_1: 15001-

1шт.

18

419-15-15920

SPRING,PRIORITY

Field_1: 15001-

1шт.

19

419-15-15940

SPRING,INNER MODULATE

Field_1: 15001-

1шт.

20

419-15-15930

SPRING,OUTER MODULATE

Field_1: 15001-

1шт.

21

419-15-15950

SPRING,OUTER ACCUMULATOR

Field_1: 15001-

1шт.

22

419-15-15960

SPRING,INNER ACCUMULATOR

Field_1: 15001-

1шт.

23

419-15-15970

SPRING,INNER ACCUMULATOR

Field_1: 15001-

1шт.

24

419-15-15880

ROD,ADJUST

Field_1: 15001-

1шт.

25

419-15-15890

PLUG,MODULATE

Field_1: 15001-

1шт.

26

419-15-15980

RETAINER,MODULATE

Field_1: 15001-

1шт.

27

04260-01270

BALL

Field_1: 15001-

1шт.

28

419-15-15510

SPRING,CHECK

Field_1: 15001-

1шт.

29

419-15-15640

PLUG

Field_1: 15001-

1шт.

30

07000-03035

O-RING(K2)

2шт.

31

07000-01009

O-RING(K2)

Field_1: 15001-

1шт.

32

01580-11008

NUT

Field_1: 15001-

1шт.

33

01643-31032

WASHER

Field_1: 15001-

1шт.

34

417-15-15842

ORIFICE,MAIN

Field_1: 15001-

1шт.

35

01010-81030

BOLT

Field_1: 15001-

12шт.

36

01010-31040

BOLT

Field_1: 15001-

3шт.

37

01010-31050

BOLT

Field_1: 15001-

2шт.

38

07042-30108

PLUG

Field_1: 15001-

3шт.
