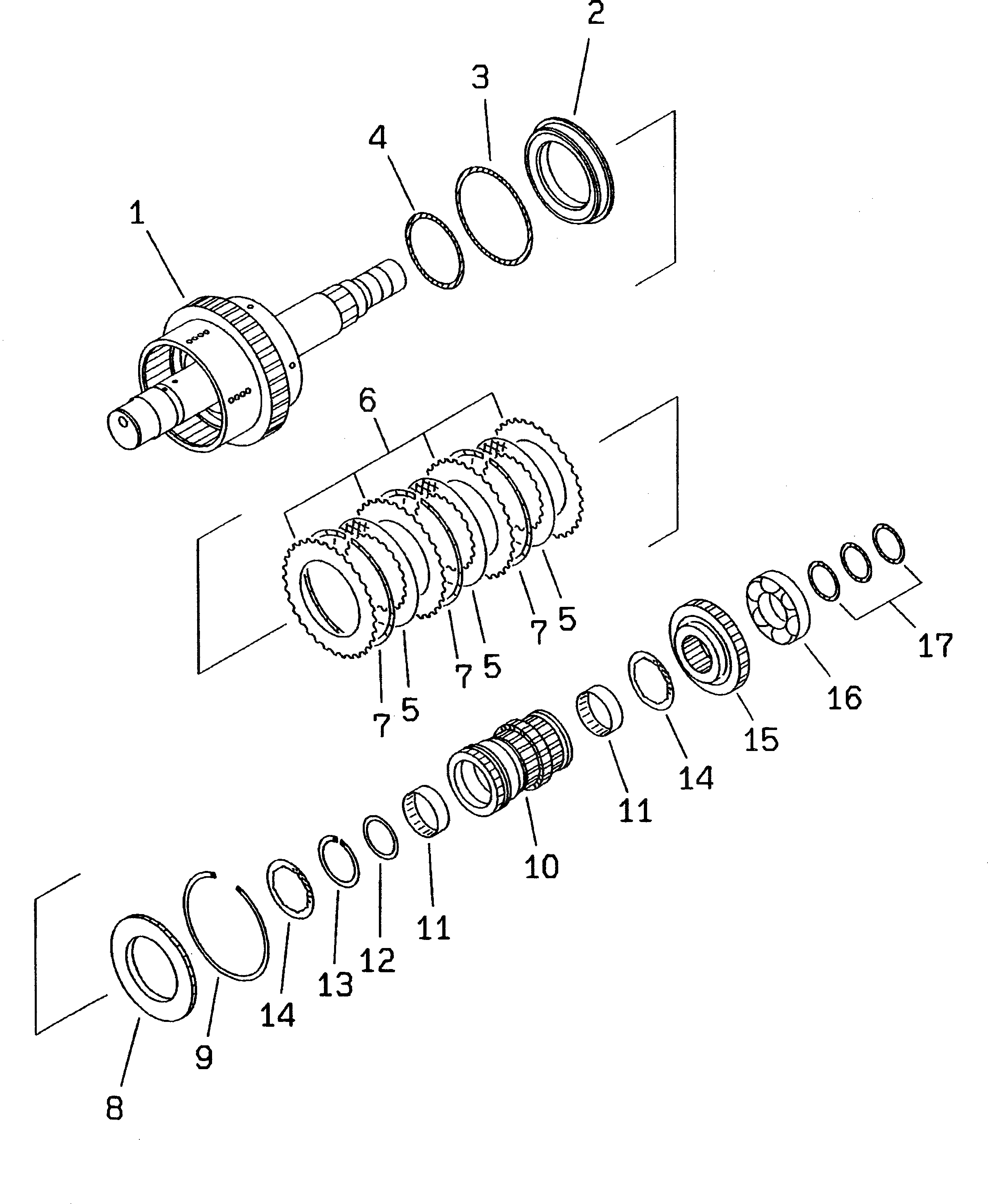

Запчасти Komatsu WA320-3 ТРАНСМИССИЯ (4 МУФТА)(№-) СИЛОВАЯ ПЕРЕДАЧА

|$0

714-16-10010

TRANSMISSION ASS'Y

SN: 50001-UP

1шт.

|$$2

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2201 TO 2271.

-1шт.

|$2

714-16-12030

CLUTCH ASS'Y,2ND AND 4TH

SN: 50001-UP

1шт.

|$$4

THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.2225 AND 2226.

-1шт.

1

714-16-12130

SHAFT ASS'Y

SN: 50001-UP

1шт.

2

714-12-12660

PISTON,4TH

SN: 50001-UP

1шт.

3

714-16-19220

RING,SEAL

SN: 50001-UP

1шт.

4

714-16-19210

RING,SEAL

SN: 50001-UP

1шт.

5

714-12-19710

DISC

SN: 50001-UP

3шт.

6

714-16-19730

PLATE,SEPARATE

SN: 50001-UP

4шт.

7

419-15-12133

SPRING,WAVE

SN: 50001-UP

3шт.

8

714-12-12610

PLATE,END

SN: 50001-UP

1шт.

9

419-15-12140

RING,SNAP

SN: 50001-UP

1шт.

10

714-12-12450

GEAR, 22 TEETH,4TH

SN: 50001-UP

1шт.

11

419-15-13150

BEARING,NEEDLE

SN: 50001-UP

2шт.

12

714-12-12790

SPACER

SN: 50001-UP

1шт.

13

04077-00080

RING

SN: 50001-UP

1шт.

14

714-08-19570

WASHER,THRUST

SN: 50001-UP

2шт.

15

714-12-12540

GEAR, 31 TEETH

SN: 50001-UP

1шт.

16

06040-06212

BEARING

SN: 50001-UP

1шт.

17

419-15-12122

RING,SEAL

SN: 50001-UP

3шт.
