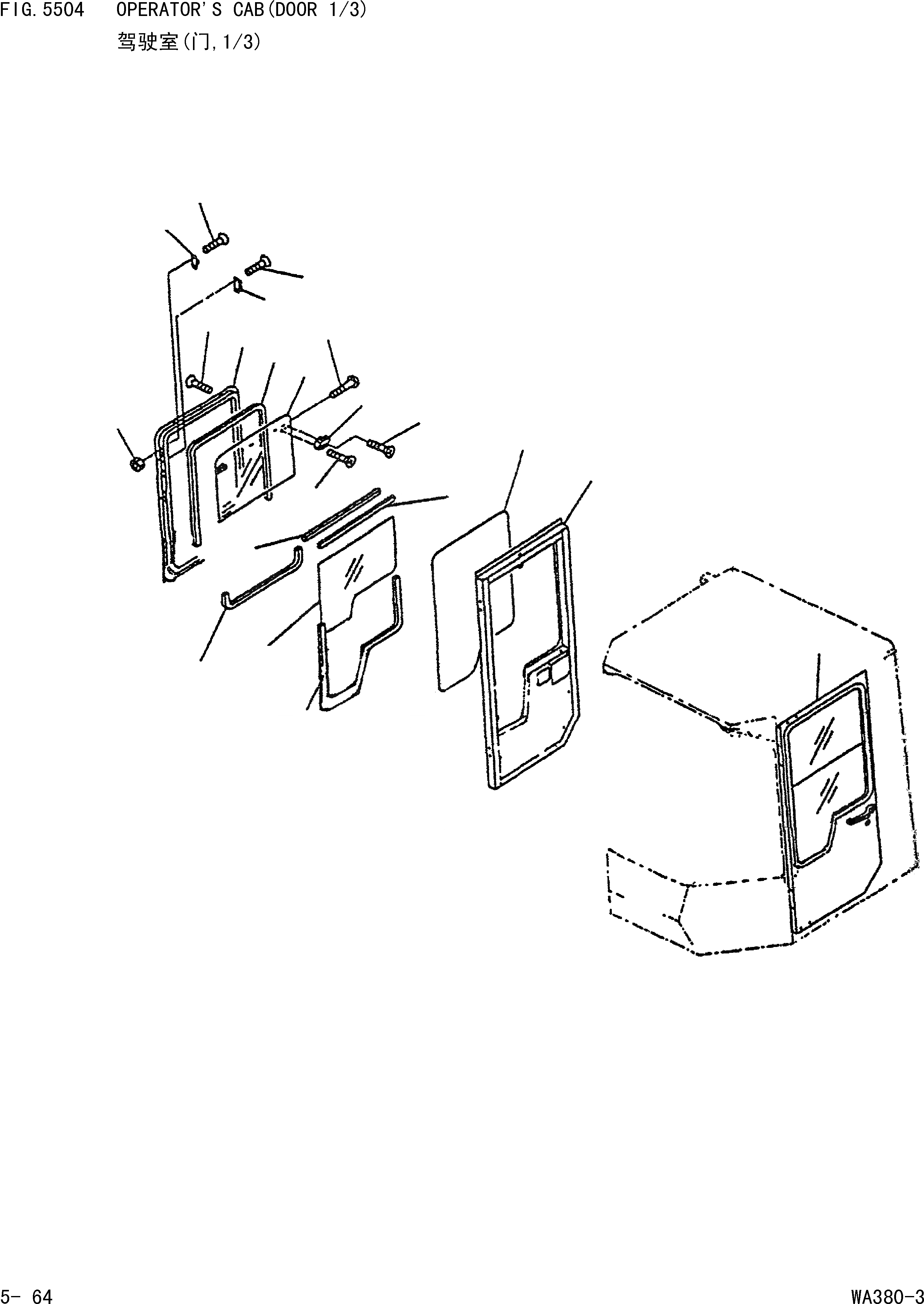

Запчасти Komatsu WA380-3 КАБИНА(ДВЕРЬ /) [РАМА И ЧАСТИ КОРПУСА]

|$0

421-56-D1013

CAB ASS'Y THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.5501 TO 5508

Field_1: 16001-

1шт.

|$1

421-56-Z1501

DOOR ASS'Y,LH

Field_1: 16001-

-1шт.

|$2

421-56-Z1701

DOOR ASS'Y,RH THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.5504 TO 5507

Field_1: 16001-

-1шт.

1

419-56-D1F10

DOOR WELD,LH

Field_1: 16001-

1шт.

|$4

419-56-D1F50

DOOR WELD,RH

Field_1: 16001-

1шт.

2

421-56-ZC510

SASH ASSY LH

Field_1: 16001-

1шт.

|$6

421-56-ZC520

SASH ASSY RH

Field_1: 16001-

1шт.

3

421-56-Z1870

SEAL

Field_1: 16001-

1шт.

4

425-54-16250

LOCK ASSY(LH)

Field_1: 16001-

1шт.

|$9

425-54-16260

LOCK ASSY(RH)

Field_1: 16001-

1шт.

5

425-54-16270

SCREW

Field_1: 16001-

1шт.

6

425-54-16280

SCREW

Field_1: 16001-

2шт.

7

425-54-16570

SCREW

Field_1: 16001-

2шт.

8

421-56-11880

STRIP,WEATHER

Field_1: 16001-

1шт.

9

421-56-11891

GLASS

Field_1: 16001-

1шт.

10

421-56-D1910

STRIP,WEATHER

Field_1: 16001-

1шт.

11

421-56-11920

FRAME,CENTER

Field_1: 16001-

1шт.

12

421-56-Z1930

GLASS

Field_1: 16001-

1шт.

13

421-56-Z1940

STRIP,WEATHER

Field_1: 16001-

1шт.

14

421-56-Z1950

RUBBER

Field_1: 16001-

1шт.

15

421-56-11960

CATCH LOCK A

Field_1: 16001-

2шт.

16

421-56-11970

CATCH LOCK B

Field_1: 16001-

6шт.

17

01580-60403

NUT

Field_1: 16001-

16шт.

18

01224-70412

SCREW

Field_1: 16001-

16шт.

19

01224-70512

SCREW

Field_1: 16001-

10шт.
