|1
363-N90-3311
SWEEPER ASS'Y,(IRON WHEEL TYPE)
SN: 19001-UP
1шт.
|1
363-Z56-3510
SWEEPER ASS'Y,(TIRE TYPE)
SN: 19001-UP
1шт.
|$$3
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T4250-51A0 TO T4250-58A0.
-1шт.
|1
363-N90-3121
SWEEPER ASS'Y,(IRON WHEEL TYPE)
SN: 19001-UP
1шт.
|1
363-Z56-3520
SWEEPER ASS'Y,(TIRE TYPE)
SN: 19001-UP
1шт.
|$$6
THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.T4250-51A0 TO T4250-58A0.
-1шт.

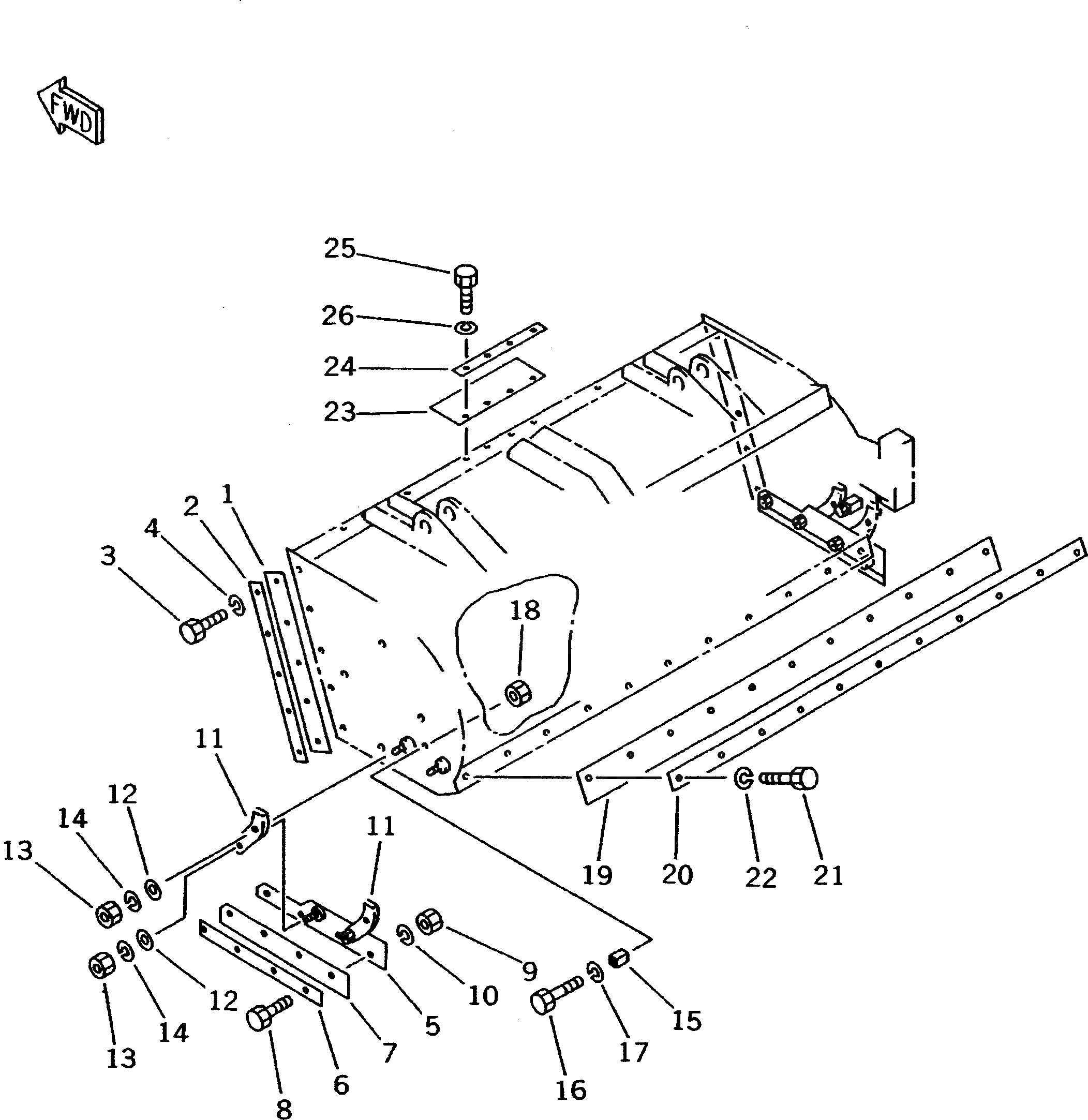

1
362-N90-4230
RUBBER
SN: 19001-UP
2шт.
2
362-N90-4220
PLATE
SN: 19001-UP
2шт.
3
01010-80616
BOLT
SN: 19001-UP
10шт.
4
01602-20619
WASHER,SPRING
SN: 19001-UP
10шт.
5
362-N90-4310
PLATE,SLIDE¤ L.H.
SN: 19001-UP
1шт.
|5
362-N90-4290
PLATE,SLIDE¤ R.H.
SN: 19001-UP
1шт.
6
362-N90-4270
PLATE
SN: 19001-UP
2шт.
7
362-N90-4280
RUBBER
SN: 19001-UP
2шт.
8
362-N90-4260
BOLT
SN: 19001-UP
8шт.
9
01580-10806
NUT
SN: 19001-UP
8шт.
10
01602-20825
WASHER,SPRING
SN: 19001-UP
8шт.
11
362-N90-4320
LINK
SN: 19001-UP
2шт.
|11
362-N90-4330
LINK
SN: 19001-UP
2шт.
12
362-N90-4340
WASHER
SN: 19001-UP
8шт.
13
01582-11008
NUT
SN: 19001-UP
8шт.
14
01602-21030
WASHER,SPRING
SN: 19001-UP
8шт.
15
362-N90-4510
STOPPER
SN: 19001-UP
2шт.
16
01050-51045
BOLT
SN: 19001-UP
2шт.
17
01602-21030
WASHER,SPRING
SN: 19001-UP
2шт.
18
01582-11008
NUT
SN: 19001-UP
2шт.
19
362-N90-4350
RUBBER
SN: 19001-UP
1шт.
20
362-N90-4360
PLATE
SN: 19001-UP
1шт.
21
01010-80820
BOLT
SN: 19001-UP
11шт.
22
01602-20825
WASHER,SPRING
SN: 19001-UP
11шт.
23
362-N90-4580
RUBBER
SN: 19001-UP
3шт.
24
362-N90-4570
PLATE
SN: 19001-UP
3шт.
25
01010-80616
BOLT
SN: 19001-UP
12шт.
26
01602-20619
WASHER,SPRING
SN: 19001-UP
12шт.
