|$$1
SERIAL NO. IN ( ) INDICATES TRANSMISSION SERIAL NO.
-1шт.
|$5
714-17-20013
TRANSMISSION ASS'Y,(WITH LOCKUP)
SN: (110604)-UP
1шт.
|$6
714-17-20012
TRANSMISSION ASS'Y,(WITH LOCKUP)
SN: 60001-(110603)
1шт.
|$7
0
TRANSMISSION ASS'Y,(WITH LOCKUP)
SN: (60001-(110185))
1шт.
|$8
0
TRANSMISSION ASS'Y,(WITH LOCKUP)
SN: (60001-(110179))
1шт.
|$9
714-17-20313
TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)
SN: (110604)-UP
1шт.
|$10
714-17-20312
TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)
SN: 60001-(110603)
1шт.
|$11
0
TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)
SN: (60001-(110185))
1шт.
|$12
0
TRANSMISSION ASS'Y,(COLD SPEC.) (WITH LOCKUP)
SN: (60001-(110179))
1шт.
|$$10

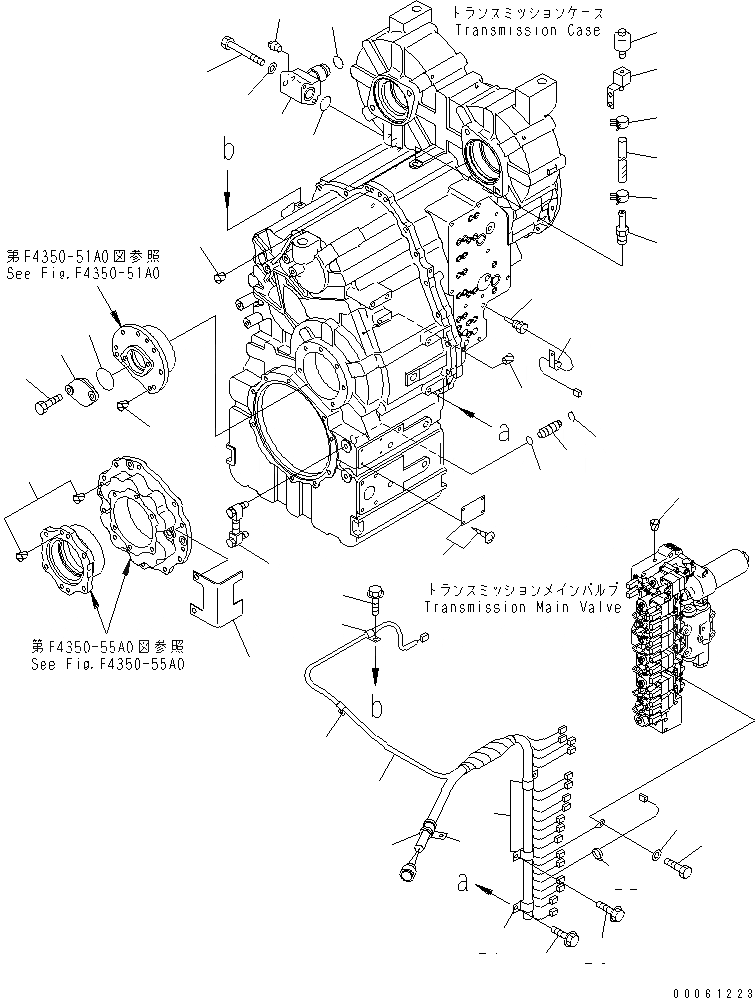

THESE ASSEMBLIES CONSISTS OF ALL PARTS SHOWN IN FIGS.F4350-51A0 TO F4350-63A1.
-1шт.
1
154-04-11540
NIPPLE
SN: 60001-UP
1шт.
2
22T-49-12330
BLOCK
SN: 60001-UP
1шт.
3
07261-20910
HOSE
SN: 60001-UP
1шт.
4
11Y-09-11140
CLIP
SN: 60001-UP
2шт.
5
07030-00252
BREATHER
SN: 60001-UP
1шт.
6
419-15-18241
PLUG
SN: 60001-UP
1шт.
7
07002-12434
O-RING (K1)
SN: 60001-UP
1шт.
8
419-15-18251
RING,SNAP
SN: 60001-UP
1шт.
9
09608-05080
PLATE, NAME
SN: 60001-UP
1шт.
9
04418-13060
SCREW
SN: 60001-UP
4шт.
10
714-13-11350
COVER
SN: 60001-UP
1шт.
11
01010-81225
BOLT
SN: 60001-UP
2шт.
12
07000-12065
O-RING (K1)
SN: 60001-UP
1шт.
13
23S-15-18180
GAUGE ASS'Y
SN: 60001-UP
1шт.
14
714-12-28551
COVER
SN: 60001-UP
1шт.
15
714-07-28182
TUBE,OUTLET
SN: 60001-UP
1шт.
16
207-62-64740
O-RING (K1)
SN: 60001-UP
1шт.
17
01011-81000
BOLT
SN: 60001-UP
2шт.
18
01643-31032
WASHER
SN: 60001-UP
2шт.
19
07000-73035
O-RING (K1)
SN: 60001-UP
1шт.
20
07042-80108
PLUG
SN: 60001-UP
1шт.
21
714-12-25821
HARNESS
SN: 60001-UP
1шт.
21
21J-06-13661
DIODE,DIODE
SN: 60001-UP
1шт.
22
08034-00414
BAND
SN: 60001-UP
2шт.
23
01010-81020
BOLT
SN: 60001-UP
1шт.
24
01643-31032
WASHER
SN: 60001-UP
1шт.
25
04434-52511
CLIP
SN: 60001-UP
2шт.
26
01435-01016
BOLT
SN: 60001-UP
2шт.
27
04434-51910
CLIP
SN: 60001-UP
1шт.
28
01435-01016
BOLT
SN: 60001-UP
1шт.
29
04434-53411
CLIP
SN: 60001-UP
1шт.
30
07095-20625
CUSHION
SN: 60001-UP
1шт.
31
04434-51012
CLIP
SN: 60001-UP
1шт.
32
04434-51010
CLIP
SN: 60001-UP
1шт.
33
01435-01016
BOLT
SN: 60001-UP
1шт.
34
7861-93-3320
SENSOR
SN: 60001-UP
1шт.
35
04434-50610
CLIP
SN: 60001-UP
1шт.
36
07049-01215
PLUG
SN: 60001-UP
9шт.
37
07049-01012
PLUG
SN: 60001-UP
1шт.
